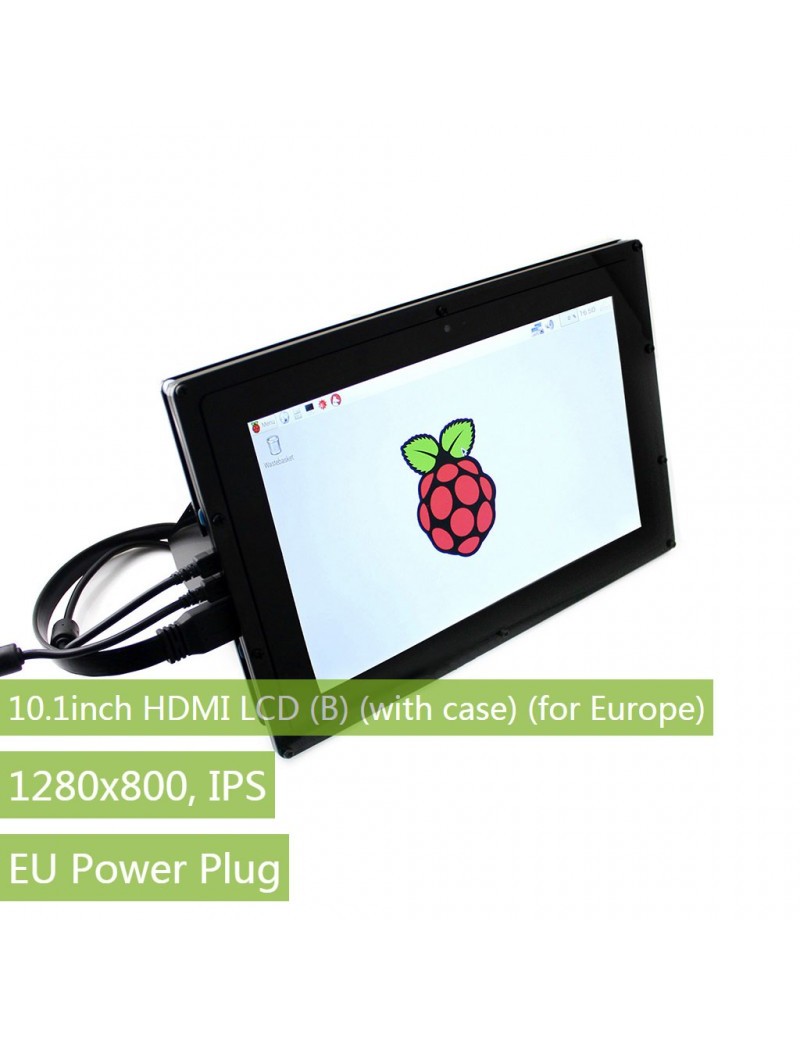

The LCD and Control Board

• IPS screen,1280×800 high resolution
• Capacitive touch control, supports up to ten-points touch
• When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
• Supports Banana Pi, Banana Pro, comes with Lubuntu, Raspbian images
• Supports BB Black, comes with Angstrom image
• HDMI interface for displaying, USB interface for touch control
• Supports 5-level backlight adjustment

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

The Case

• Material : high quality black Acrylic
• Comes with back holder, 45° tilt angle
• Features mounting holes for Raspberry Pi 3B+/3B/2B/B+/A+/B, BB Black, Banana Pi

Using with Game Consoles

Note:

• Limited by the game console OS, the touch function is unavailable.
• Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

Photos

Note: Raspberry Pi in the photos is NOT included.

External Dimension

Development Resources

How to install: instruction

Wiki : www.waveshare.com/wiki/10.1inch_HDMI_LCD_(B)_(with_case)

Weight: 0.851 kg

For the power adapter, different types of plugs are available, please select the one compatible with your outlet: US, EU

1. 10.1inch HDMI LCD (B) (with case) x 1
2. Back holder x 1
3. Spare screws x 1
4. HDMI cable x 1
5. USB type A plug to micro B plug cable x1
6. Power adapter EU standard USB output x1
7. Quick start sheet x1
