7inch HDMI LCD, 1024×600
Write your review
65,69 €
Tasse incluse
7inch Resistive Touch Screen LCD, HDMI interface, Designed for Raspberry Pi
DESCRIPTION
7inch Resistive Touch Screen LCD, HDMI interface, Designed for Raspberry Pi
Features
- 1024×600 high resolution
- Resistive touch control
- Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
- Drivers provided (works with your own Raspbian/Ubuntu directly)
- Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
- HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
- Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.
- Supports 100-level backlight adjustment
Using with Game Consoles
| Part Number | Microsoft XBOX | Sony PS4 | Nintendo Switch | |||
|---|---|---|---|---|---|---|
| Display | Sound | Display | Sound | Display | Sound | |
| 3.5inch HDMI LCD | √ | √ | √ | √ | √ | √ |
| 5inch HDMI LCD (G) | √ | √ | √ | √ | √ | √ |
| 5inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
| 7inch HDMI LCD | √ | × | √ | × | √ | × |
| 7inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
| 10.1inch HDMI LCD | √ | × | √ | × | √ | × |
| 10.1inch HDMI LCD (B) | × | × | × | × | √ | × |
| 10.1inch HDMI LCD (D) | √ | √ | × | × | √ | √ |
| 10.1inch HDMI LCD (H) | √ | √ | × | × | √ | √ |
| 13.3inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
Note:
- Limited by the game console OS, the touch function is unavailable.
- Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

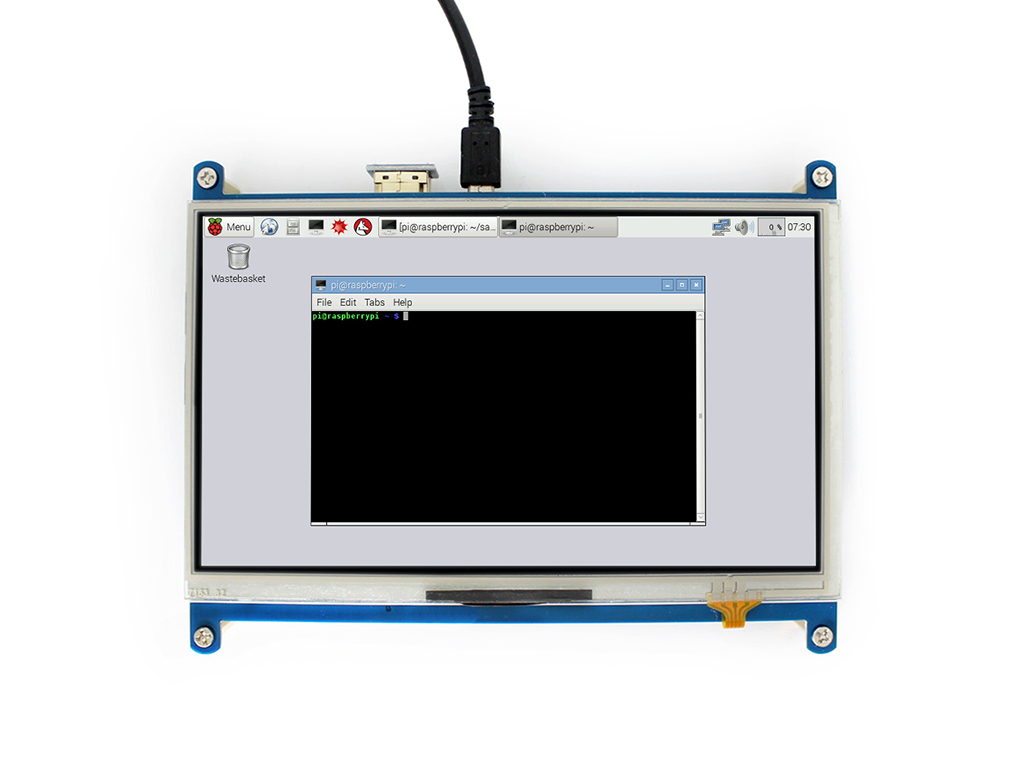

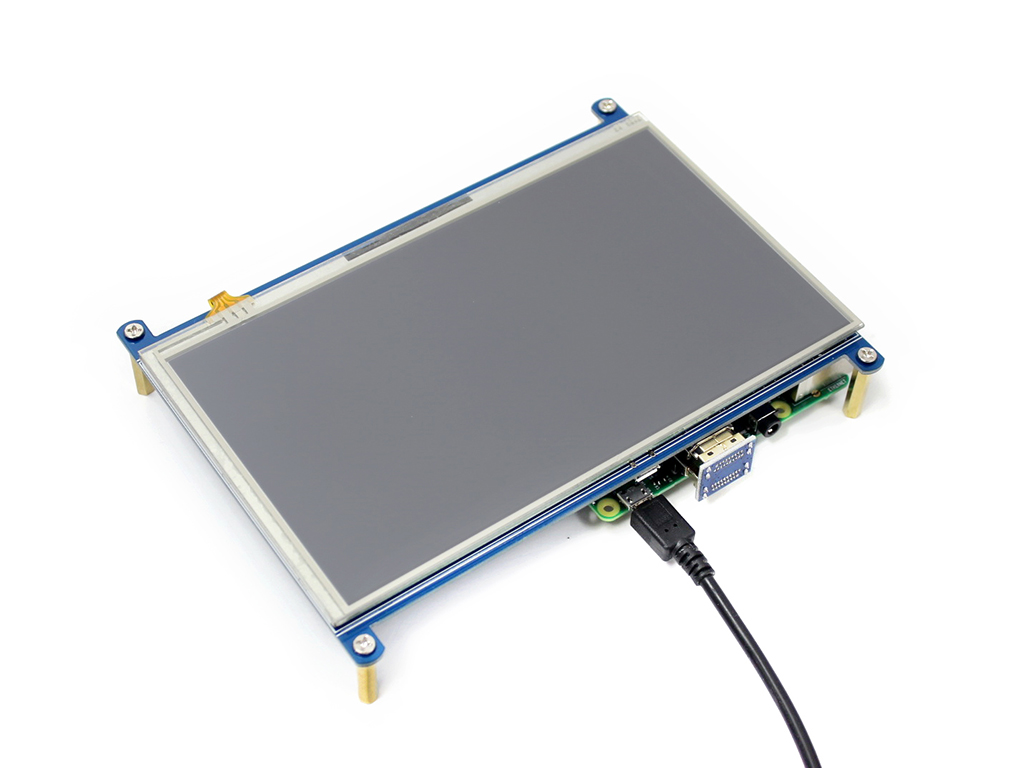

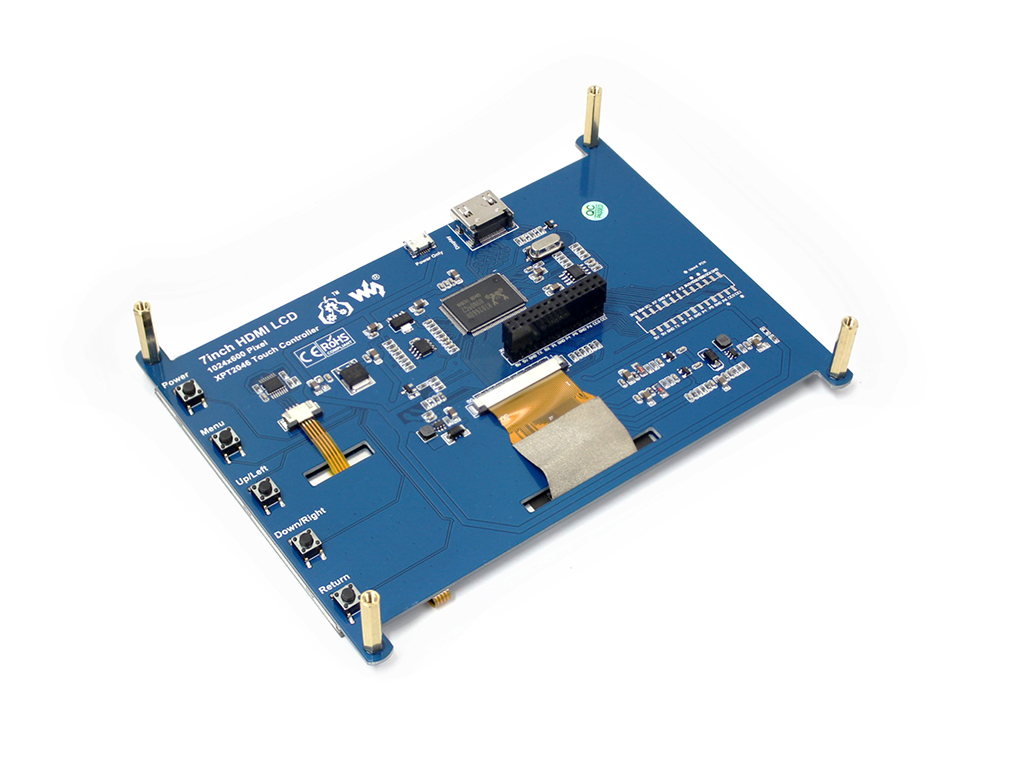

Photos
Interface
| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1, 17 | 3.3V | Power positive (3.3V power input) |
| 2, 4 | 5V | Power positive (5V power input) |
| 3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 | NC | NC |
| 6, 9, 14, 20, 25 | GND | Ground |
| 19 | TP_SI | SPI data input of Touch Panel |
| 21 | TP_SO | SPI data output of Touch Panel |
| 22 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
| 23 | TP_SCK | SPI clock of Touch Panel |
| 26 | TP_CS | Touch Panel chip selection, low active |
External Dimension
Development Resources
Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD
FAQ
- Why the LCD doesn't work with my Raspbian?
- To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly. - Why the LCD still doesn't work with the Waveshare provided image?
- Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact. - Which power supply should I use?
- It is recommended to use a 5V/2A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.
For more info, please check the wiki page.
Weight: 0.261 kg
- 7inch HDMI LCD x 1
- HDMI connector x 1
- Touch pen x 1
- RPi screws pack (4pcs) x 1
- Quick start sheet x1
