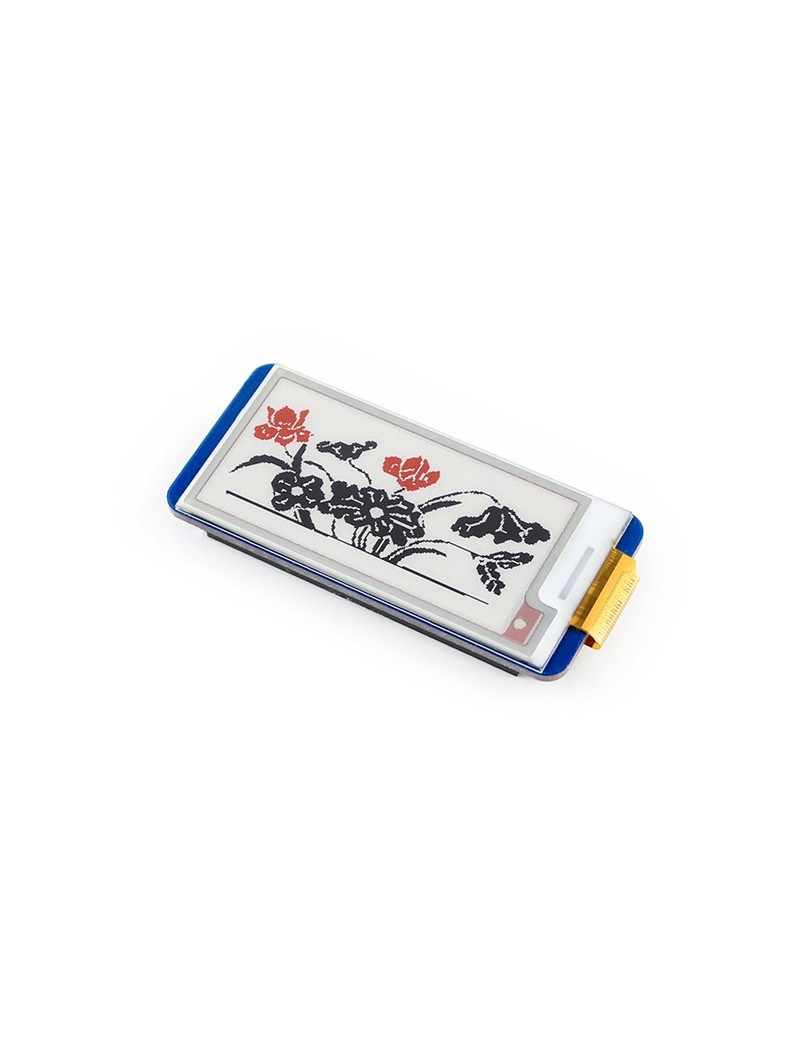

2.13inch E-Ink display HAT for Rasp
Write your review
21,96 €
Tasse incluse
212x104, 2.13inch E-Ink display HAT for Raspberry Pi, three-color, SPI interface
Overview
This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
2.13inch e-Paper HAT (B) Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
2.13inch e-Paper HAT (B) Specifications
- Operating voltage: 3.3V/5V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimension: 65mm × 30.2mm
- Display size: 23.71mm × 48.55mm
- Dot pitch: 0.229 × 0.228
- Resolution: 212 × 104
- Display color: red, black, white
- Grey level: 2
- Full refresh time: 15s
- Refresh power: 26.4mW(typ.)
- Standby power: <0.017mW
- Viewing angle: >170°
Interface
SYMBOL | DESCRIPTION |
---|---|
VCC | 3.3V/5V |
GND | Ground |
NC | NC |
DIN | SPI MOSI pin |
CLK | SPI SCK pin |
CS | SPI chip selection, low active |
DC | Data/Command selection (high for data, low for command) |
RST | External reset, low active |
BUSY | Busy status output, low active |
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(B)
Weight: 0.021 kg
- 2.13inch e-Paper HAT (B) x1
- RPi screws pack (2pcs) x1
- PH2.0 20cm 8Pin x1
