This is a 1.51” SSD1309 transparent monochrome OLED display (light blue) with a converter. It offers a resolution of 128×64 (The completely transparent area is 128×56.

There is a small section near the pins that are not transparent but still can display content), full-view, and blue display.

For convenience, the small converter comes with two available connections: GDI and SPI. And there are all kinds of display code samples for meeting the basic requirements of most users.

Connect Diagram

• Transparent OLED display
• Full-view display
• High resolution
• Blue display

• Smart home transformation
• DIY Desktop display
• Interactive display for booth
• 3D Display

• Working Voltage: 3.3V
• View Angle: Full view
• Driver Chip: SSD1309
• Converter Interface: SPI and GDI
• Adapter Size: 18 x 28mm/0.71 x 1.10inch
• Display Area: 35.05 x 15.32 (mm)/1.40 x 0.60inch
• Display Color: blue
• Pixel Pitch: 0.274 x 0.274mm
• Screen Size: 42x27mm/1.65 x 1.07inch
• Working Temperature: -40~70 ℃

• Product wiki
• Schematics
• 2D.rar
• 3D.rar
• Datasheet

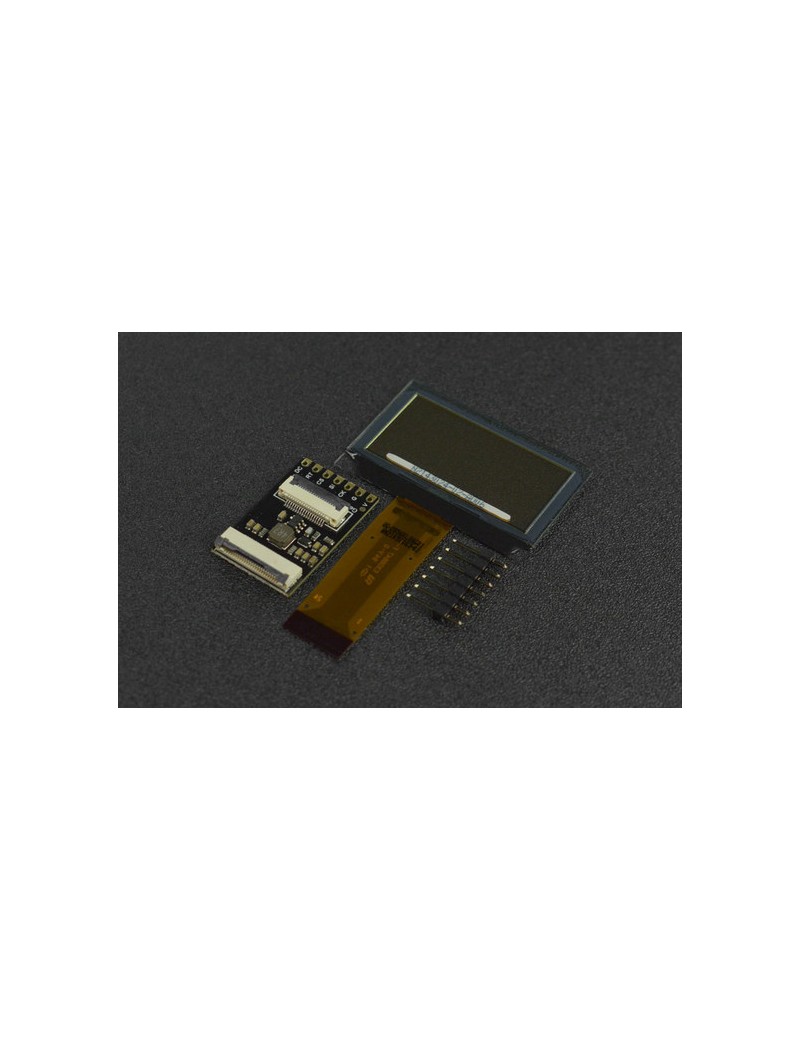

• 1.51" OLED Transparent Display x1
• 1.51" OLED Transparent Display Converter x1
• 2.54 Black Single-row 7Pin Connector x1
• FPC0.5-18PIN Reverse Direction Cable x1
