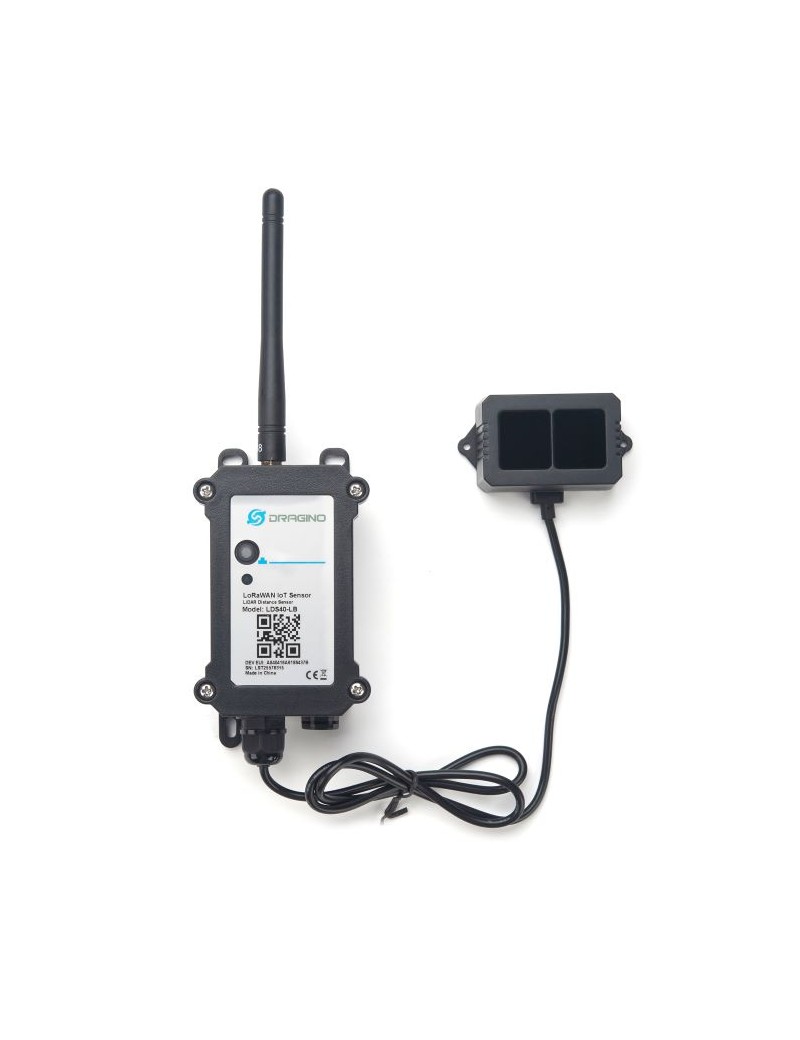

The Dragino LDS40-LB is a LoRaWAN LiDAR ToF (Time of Flight) Distance Sensor for Internet of Things solution.  It is capable of measuring the distance to objects as close as 0m to 40m. The LiDAR probe uses laser induction technology for distance measurement.

The LDS40-LB can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.

It detects the distance between the measured object and the sensor, and uploads the value via wireless to LoRaWAN IoT Server.

The LoRa wireless technology used in LDS40-LB allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LDS40-LB supports BLE configure and wireless OTA update which make user easy to use.

LDS40-LB is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each LDS40-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN 1.0.3 Class A
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Ultra-low power consumption
• Laser technology for distance detection
• Measure Distance: 0.1m~40m @ 90% Reflectivity
• FOV : 3°
• Monitor Battery Level
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• AT Commands to change parameters
• Downlink to change configure
• 8500mAh Battery for long term use

Applications:

• Horizontal distance measurement
• Parking management syste
• Object proximity and presence detection
• Intelligent trash can management system
• Robot obstacle avoidance
• Automatic control
• Sewer

Specification:

Common DC Characteristics:

• Supply Voltage: built in 8500mAh Li-SOCI2 battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

Probe Specification:

• Storage temperature：-30°C~80°C
• Operating temperature: -20°C~60°C
• Measure Distance:
  • 0.1m ~ 40m @ 90% Reflectivity
  • 0.1m ~ 13.5m @ 10% Reflectivity
• Distance resolution: 1cm
• Ambient light immunity: 100klux
• Enclosure rating : IP65
• Light source : VCSEL
• Central wavelength : 850nm
• FOV : 3°
• Material of enclosure : ABS+PC
• Wire length : 75cm

LoRa Spec:

• Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.
• Excellent blocking immunity

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption:

• Sleep Mode: 5uA @ 3.3v
• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

DOCUMENTS:

• DataSheet, Document Base

• User Manual -- Online Latest
• Shared Folder for all Dragino Products
