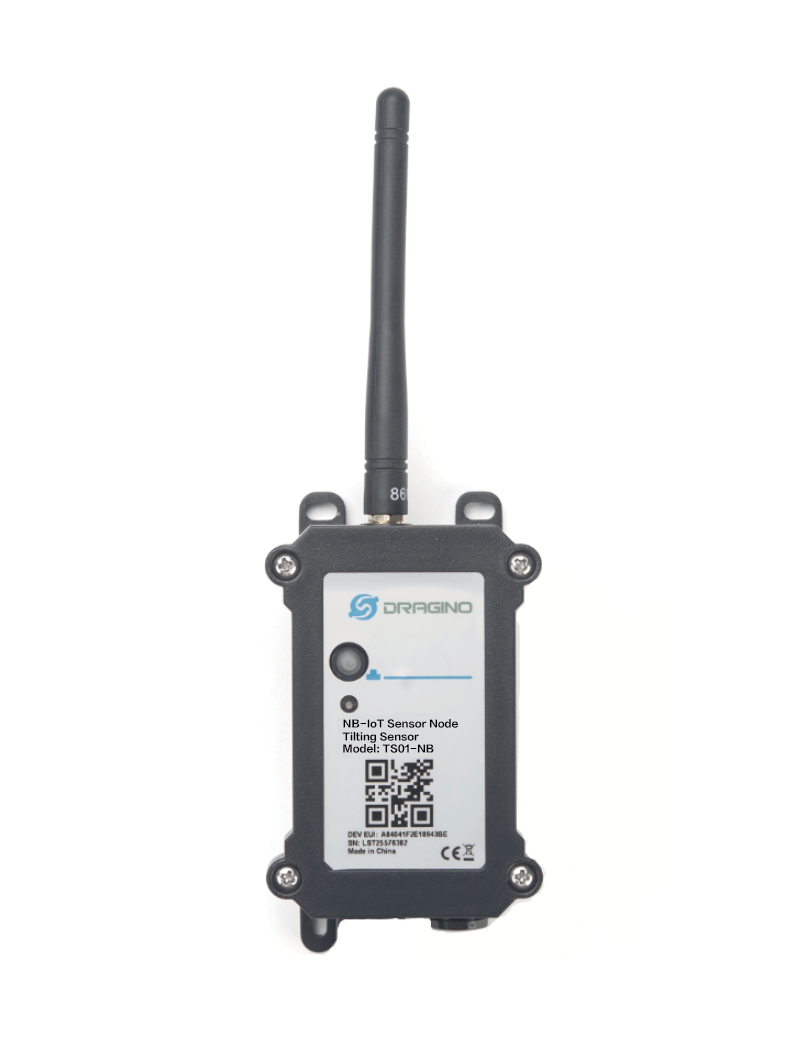

The Dragino TS01-NB is a NB-IoT Tilting Sensor for Internet of Things solution. TS01-NB is an outdoor Tilting Sensor specially designed for detecting the angle of trees, buildings or large scale equipment.

TS01-NB measures pitch and roll angle and converts to NB-IoT wireless data and sends to IoT platform via NB-IoT network.

TS01-NB supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirement, and support uplinks to various IoT Servers.

TS01-NB supports BLE configure and OTA update which make user easy to use.

TS01-NB is powered by 8500mAh Li-SOCI2 battery, it is designed for long-term use up to several years.

TS01-NB has optional built-in SIM card and default IoT server connection version. Which makes it works with simple configuration.

Features:

• NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
• Ultra-low power consumption
• Detect pitch and roll angle
• Support Angle Alarm
• Support Datalog feature
• Multiply Sampling and one uplink
• Support BLE remote configure and update firmware
• Uplink on periodically
• Downlink to change configure
• 8500mAh Battery for long term use
• Uplink via MQTT, MQTTs, TCP, or UDP
• Nano SIM card slot for NB-IoT SIM

Specifications:

Common DC Characteristics:

• Supply Voltage: 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

Angle Spec:

• Measure Pitch and Roll
• Accuracy: 0.3°C

NB-IoT Spec:

NB-IoT Module: BC660K-GL

Support Bands:

• B1 @H-FDD: 2100MHz
• B2 @H-FDD: 1900MHz
• B3 @H-FDD: 1800MHz
• B4 @H-FDD: 2100MHz
• B5 @H-FDD: 860MHz
• B8 @H-FDD: 900MHz
• B12 @H-FDD: 720MHz
• B13 @H-FDD: 740MHz
• B17 @H-FDD: 730MHz
• B18 @H-FDD: 870MHz
• B19 @H-FDD: 870MHz
• B20 @H-FDD: 790MHz
• B25 @H-FDD: 1900MHz
• B28 @H-FDD: 750MHz
• B66 @H-FDD: 2000MHz
• B70 @H-FDD: 2000MHz
• B85 @H-FDD: 700MHz

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 8500mAh
• Self Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption:

• STOP Mode: 10uA @ 3.3v
• Max transmit power:  350mA@3.3v

DOCUMENTS:

• DataSheet, Document Base

• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

• TS01-NB_NB-IoT Tilting Sensor  x 1

• External antenna x 1
