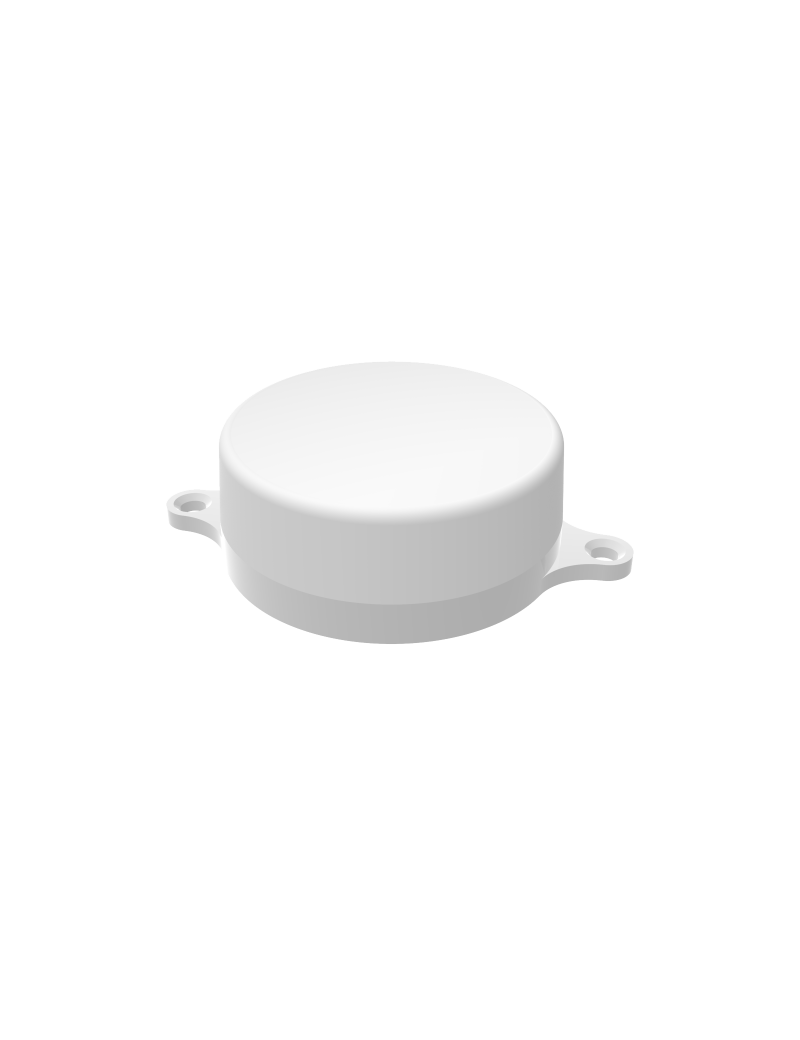

The BCN02 is a Bluetooth BLE iBeacon designed for indoor positioning solution. BCN02 is base on Diglog IC and support Bluetooth 5.1 protocol. BCN02 is low power consumption and with 1200mAh battery. With a 500ms broadcast interval, BCN02 can works for 4~5 years.

BCN02 is designed for the use together with Dragino TrackerD to provide LoRaWAN Indoor Position Solution. There are many BCN02s placed in different location and keep broadcasting their UUID via Bluetooth. User brings TrackerD LoRaWAN BLE tracker, the TrackerD keep scanning the UUID and choose the highest signal UUID to uplink via LoRaWAN. So the IoT server will know where the TrackerD is.

BCN02 is power off when shipping via airline. User need to rotate to open it and plug in the power connector to power on it.

Features:

• 1200mAh battery
• 4~5 year battery life(Default 500ms Interval)
• Distance,100meters in open area
• RF power:  -19.5 ~ 2.5dBm(default 2.5dBm)
• Operating temperature: -30 ~ 60 °C
• Valid for outdoor use, Weather Proof
• Configurable via mobile phone
• Sleep: 0.27uA, Broadcasting: 16uA

DOCUMENTS:

• DataSheet, Document Base
• User Manual -- Online Latest
• Shared Folder for all Dragino Products
