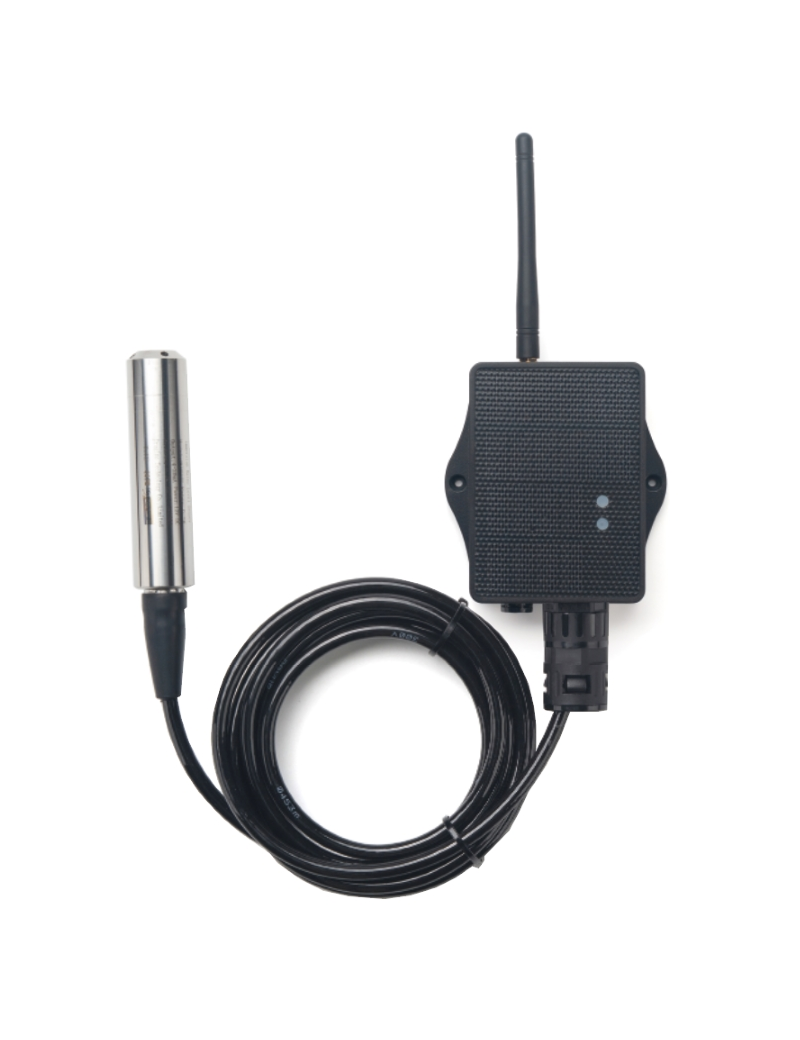

The Dragino PS-LB/LS series sensors are LoRaWAN Pressure Sensor for Internet of Things solution. PS-LB/LS can measure Air, Water pressure and liquid level and upload the sensor data via wireless to LoRaWAN IoT server.

The PS-LB/LS series sensors include Thread Installation Type and Immersion Type, it supports different pressure range which can be used for different measurement requirement.

The LoRa wireless technology used in PS-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

PS-LB/LS supports BLE configure and wireless OTA update which make user easy to use.

PS-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + li-on battery , it is designed for long term use up to 5 years.

Each PS-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN 1.0.3 Class A
• Ultra-low power consumption
• Measure air / gas or water pressure
• Different pressure range available
• Thread Installation Type or Immersion Type
• Monitor Battery Level
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• Uplink on periodically
• Downlink to change configure
• 8500mAh Li/SOCl2 Battery (PS-LB)
• Solar panel + 3000mAh Li-on battery (PS-LS)


Specifications:

   Micro Controller:

• • MCU: 48Mhz ARM
  • Flash: 256KB
  • RAM: 64KB

   Common DC Characteristics:

• • Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

    LoRa Spec:

• • Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
  • Max +22 dBm constant RF output vs.
  • RX sensitivity: down to -139 dBm.
  • Excellent blocking immunity

    Current Input Measuring :

• • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

   Voltage Input Measuring:

• • Range: 0 ~ 30v
  • Accuracy: 0.02v
  • Resolution: 0.001v

   Battery:

• • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% / Year @ 25°C
  • Max continuously current: 130mA
  • Max boost current: 2A, 1 second

   Power Consumption:

• • Sleep Mode: 5uA @ 3.3v
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

DOCUMENTS:

• DataSheet, Document Base

• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Part Number: PS-LB-Txx-YY or PS-LS-Ixx-YY

XX: Pressure Range and Thread Type

YY: The default frequency band

• AS923: LoRaWAN AS923 band

• AU915: LoRaWAN AU915 band

• EU433: LoRaWAN EU433 band

• EU868: LoRaWAN EU868 band

• KR920: LoRaWAN KR920 band

• US915: LoRaWAN US915 band

• IN865: LoRaWAN IN865 band

• CN470: LoRaWAN CN470 band
