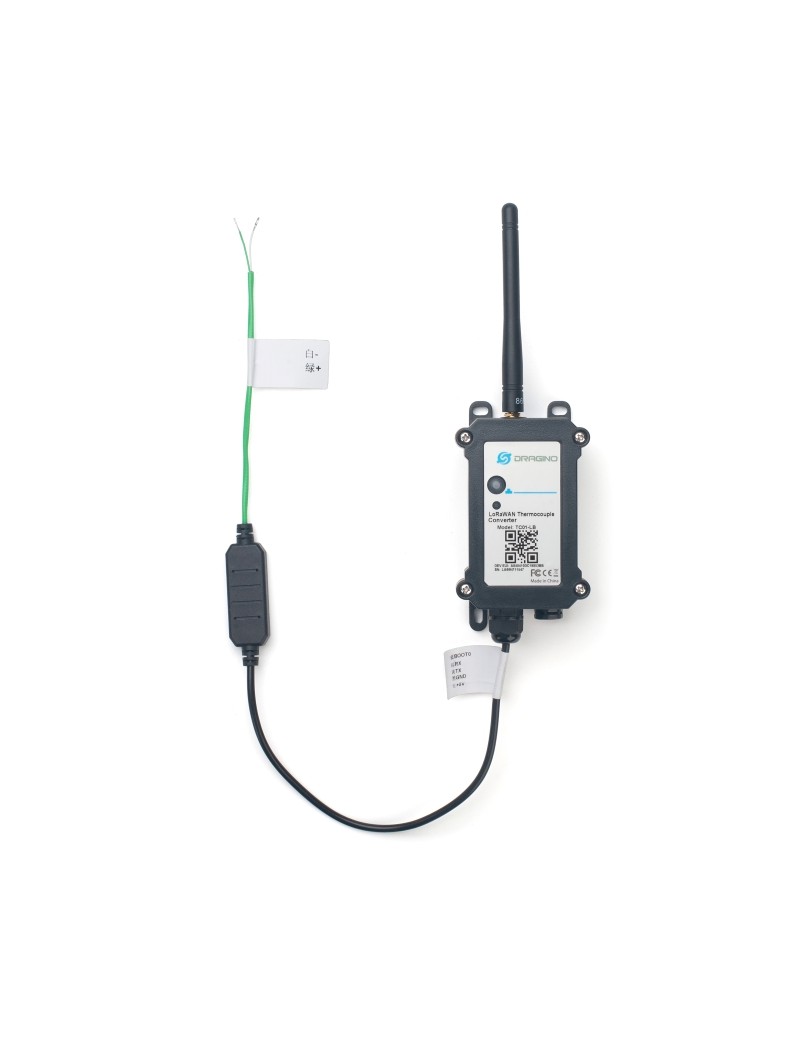

The Dragino TC01/TC11-LB is a LoRaWAN Thermocouple Converter for Internet of Things solution. It is used to measure the industrial environment temperature , and then upload to IoT server via LoRaWAN network.

The TC11-LB used in K-Type thermocouple can measure -50°C ~ 200°C. TC01-LB is with 2 open wire so user can connect a 3rd party K, J, N, R,S T, E, or B type thermocouple.

TC01/TC11-LB supports temperature alarm feature, user can set temperature alarm for instant notice. TC01/TC11-LB supports Datalog feature，It will record the data when there is no network coverage and users can retrieve the sensor value later to ensure no miss for every sensor reading.

TC01/TC11-LB supports BLE configure and wireless OTA update which make user easy to use.

TC01/TC11-LB is powered by 8500mAh Li-SOCI2 battery , it is designed for long-term use up to several years.

Each TC01/TC11-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN 1.0.3 Class A
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Ultra-low power consumption
• K Type Thermocouple (-50 ~ 200°C)  (For model TC11)
• 2 wire to 3rd party Thermocouple (For model TC01)
• Temperature alarm
• Datalog Feature
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• Uplink on periodically
• Downlink to change configure
• 8500mAh Li/SOCl2 Battery

Applications:

Specifications:

Common DC Characteristics:

• Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

LoRa Spec:

• Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.
• Excellent blocking immunity

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption

• Sleep Mode: 5uA @ 3.3v
• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

DOCUMENTS:

• DataSheet, Document Base

• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

• TC01-LB or TC11-LB LoRaWAN Thermocouple Converter x 1
