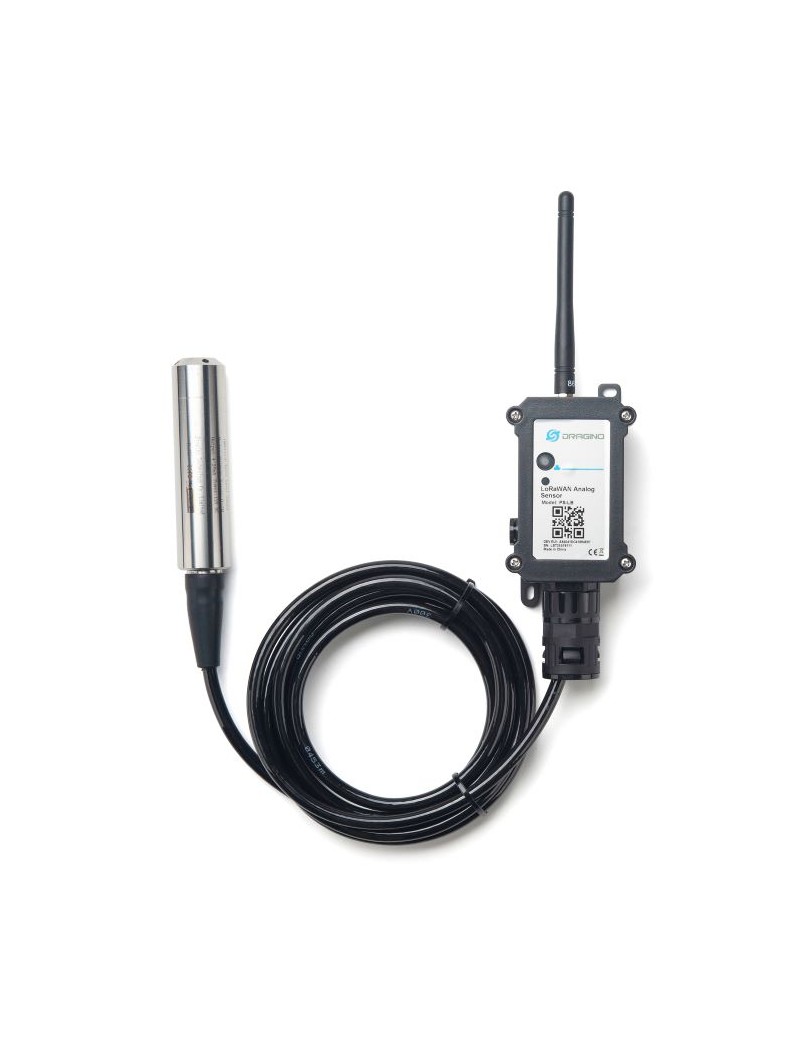

PS-NB -- LoRaWAN Air Water Pressure Sensor

170,80 €
Tasse incluse

*Specificare nelle note ordine : Probe Type  e Pressure dalla lista in fondo*

*This is a general version (exclude sim card)*

Quantità

*Specificare nelle note ordine : Probe Type  e Pressure dalla lista in fondo*

The Dragino PS-LB/LS series sensors are LoRaWAN Pressure Sensor for Internet of Things solution. PS-LB/LS can measure Air, Water pressure and liquid level and upload the sensor data via wireless to LoRaWAN IoT server.

The PS-LB/LS series sensors include Thread Installation Type and Immersion Type, it supports different pressure range which can be used for different measurement requirement.

The LoRa wireless technology used in PS-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

PS-LB/LS supports BLE configure and wireless OTA update which make user easy to use.

PS-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + li-on battery , it is designed for long term use up to 5 years.

Each PS-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

  • LoRaWAN 1.0.3 Class A
  • Ultra-low power consumption
  • Measure air / gas or water pressure
  • Different pressure range available
  • Thread Installation Type or Immersion Type
  • Monitor Battery Level
  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
  • Support Bluetooth v5.1 and LoRaWAN remote configure
  • Support wireless OTA update firmware
  • Uplink on periodically
  • Downlink to change configure
  • 8500mAh Li/SOCl2 Battery (PS-LB)
  • Solar panel + 3000mAh Li-on battery (PS-LS)

Specifications:

   Micro Controller:

    • MCU: 48Mhz ARM
    • Flash: 256KB
    • RAM: 64KB

   Common DC Characteristics:

    • Supply Voltage: Built-in Battery2.5v ~ 3.6v
    • Operating Temperature: -40 ~ 85°C

    LoRa Spec:

    • Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
    • Max +22 dBm constant RF output vs.
    • RX sensitivity: down to -139 dBm.
    • Excellent blocking immunity

    Current Input Measuring :

    • Range: 0 ~ 20mA
    • Accuracy: 0.02mA
    • Resolution: 0.001mA

   Voltage Input Measuring:

    • Range: 0 ~ 30v
    • Accuracy: 0.02v
    • Resolution: 0.001v

   Battery:

    • Li/SOCI2 un-chargeable battery
    • Capacity: 8500mAh
    • Self-Discharge: <1% / Year @ 25°C
    • Max continuously current: 130mA
    • Max boost current: 2A, 1 second

   Power Consumption:

    • Sleep Mode: 5uA @ 3.3v
    • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

DOCUMENTS:

Part Number: PS-LB-Txx-YY or PS-LS-Ixx-YY

XX: Pressure Range and Thread Type

YYThe default frequency band

  • AS923: LoRaWAN AS923 band
  • AU915: LoRaWAN AU915 band
  • EU433: LoRaWAN EU433 band
  • EU868: LoRaWAN EU868 band
  • KR920: LoRaWAN KR920 band
  • US915: LoRaWAN US915 band
  • IN865: LoRaWAN IN865 band
  • CN470: LoRaWAN CN470 band

order info

DR-PS-NB
