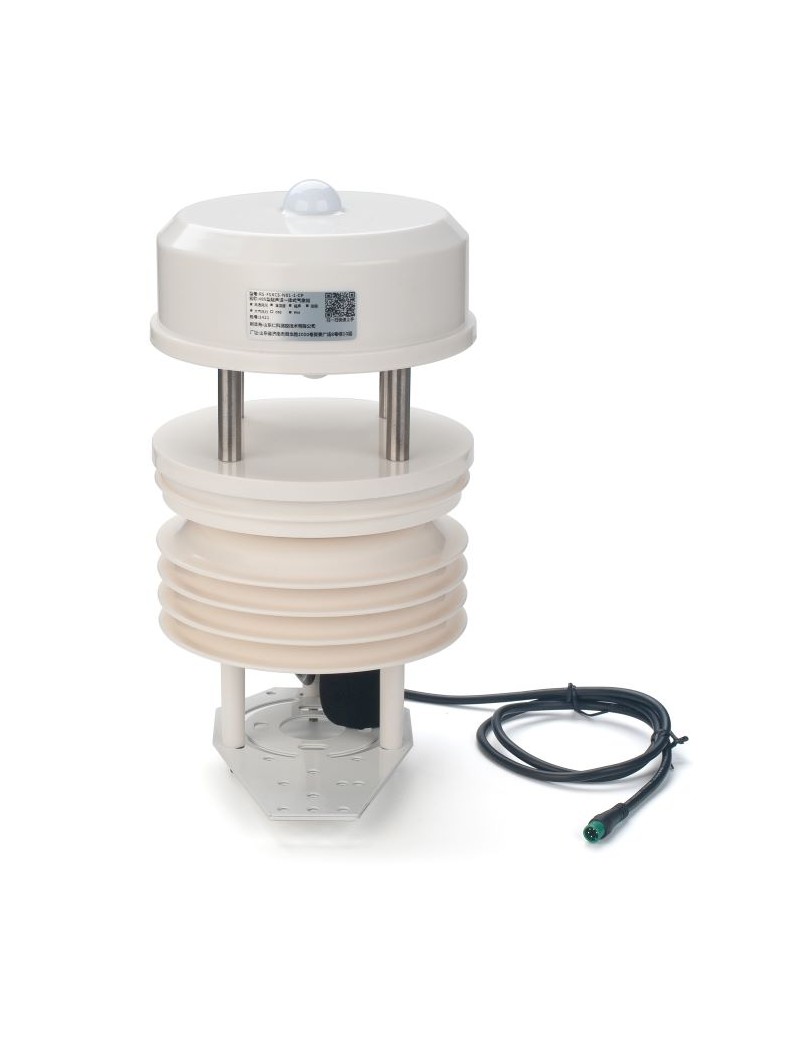

WSS-09 is designed to support the Dragino Weather station solution. The 9 in 1 weather station Sensors can measure below values: Wind Speed, Wind Direction, Temperature, Humidity, Air Pressure, Illumination, PM2.5, PM10, Noise & Rain Guage. The LoRaWAN transmitter use RS485 interface to communicate with the 9 in 1 weather station. It can also connect 3rd party RS485 sensors to measure more environment data. It also has a pulse counting input which can be used to connect tipping bucket Rain Gauge.

Features:

• Power Input: 10 ~ 30VDC
• Max Power Consumption: 1.2W
• Wind Speed, Wind Direction, Temperature, Humidity, Air Pressure, Illumination, PM2.5, PM10
• Weather Station Sensor for WSC2-L

Sensor Spec:

Wind Speed:

• Range: 0~60m/s
• Accuracy: ±(0.2m/s±0.02*v)(v : the wind speed)
• Ultrasonic measurement,no start wind strength needed

Wind Direction:

• Range: 0~3599
• Accuracy: +3°
• Ultrasonic measurement,no start wind strength needed
• Built-in electronic compass. No need to consider installation direction

Temperature:

• Range: -40°C ~ +80°C
• Accuracy: +0.5°C

Humidity:

• Range: 0 ~ 99% RH
• Accuracy Tolerance : Typ +3% RH

Air Pressure:

• Accuracy: ±0.15kPa@25°C 101kPa
• Range: 0~120kPa

Noise:

• Range: 30dB~120dB
• Accuracy: +0.5dB

PM2.5:

• Range: 0~1000ug/m3
• Accuracy: ±3%FS
• Resolution: 1ug/m3

PM10:

• Range: 0~1000ug/m3
• Accuracy: +3%FS
• Resolution: 1ug/m3

llumination:

• Range: 0~200k Lux
• Accuracy: +7%(25 °C)
