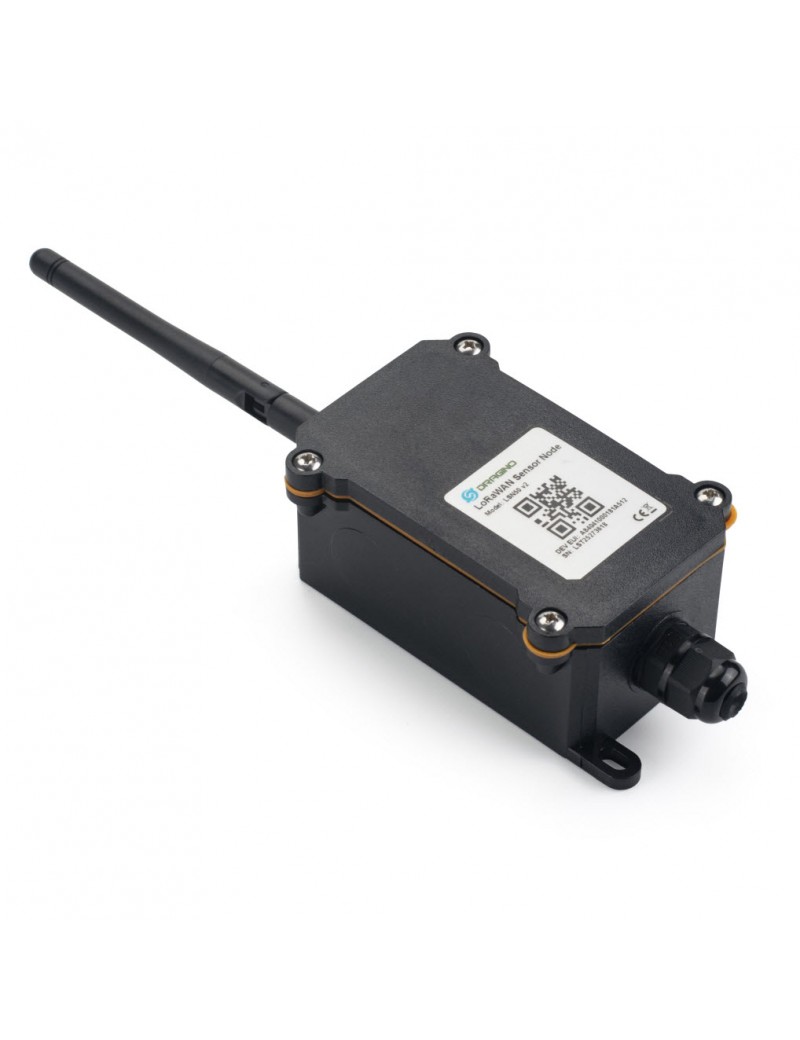

The Dragino RS485-BL is a RS485 / UART to LoRaWAN Converter for Internet of Things solutions.User can connect RS485 or UART sensor to RS485-BL converter, and configure RS485-BL to
periodically read sensor data and upload via LoRaWAN network to IoT server.

RS485-BL can interface to RS485 sensor , 3.3v/5v UART sensor or interrupt sensor. RS485-BL provides a 3.3v output and a 5v output to power external sensors. Both output voltage are controllable
to minimize the total system power consumption.

RS485-BL is IP67 waterproof and powered by 8500mAh Li-SOCI2 battery, It is designed for long term use for several years.

RS485-BL runs standard LoRaWAN 1.0.3 in Class A. It can reach long transfer range and easy to intergrate with LoRaWAN compatible gateway and IoT server.

Each RS485-BL pre-loads with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN v1.0.3 Class A
• Ultra low power consumption
• RS485 interface for RS485/ Modbus sensor
• 3.3 / 5v UART interface for sensor
• High capacity 8500 mAh Li-SOCI2 battery
• Bands: CN470/EU433/KR920/US915
  EU868/AS923/AU915/IN865
• AT Commands to change parameters
• Uplink on periodically or Interrupt
• Downlink to change configure

Applications:

• Wireless Alarm and Security Systems
• Home and Building Automation
• Automated Meter Reading
• Industrial Monitoring and Control
• Long range Irrigation Systems,etc.
