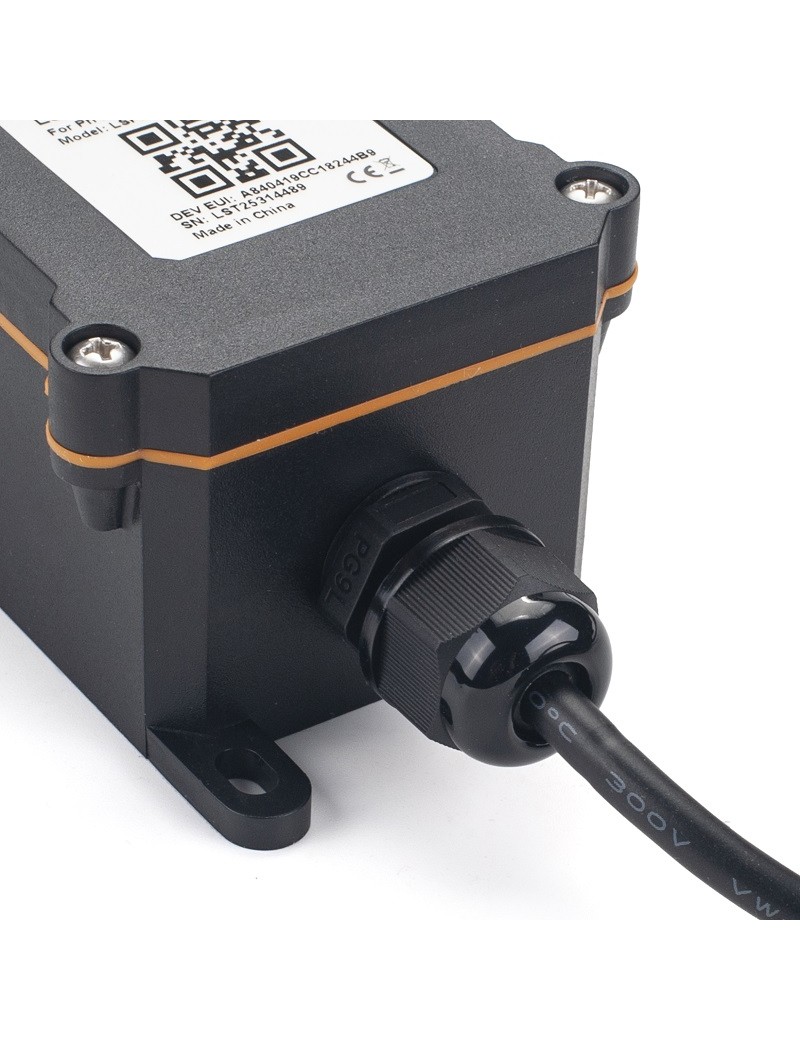

WSC1-L is the main process unit in Dragino Weather Station solution.

WSCL-1 is an outdoor LoRaWAN RS485 end node. It is powered by external 12v solar power and has a built-in li-on backup battery.

WSC1-L reads values from various sensors and upload these sensor data to IoT server via LoRaWAN wireless protocol. WSC1-L is full compatible with LoRaWAN Class C protocol, it can work with standard LoRaWAN gateway.

Each WSC1-L is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto-connect after power on.

Features:

• Wall Attachable.
• LoRaWAN v1.0.3 Class A protocol.
• RS485 / Modbus protocol
• Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
• AT Commands to change parameters
• Remote configure parameters via LoRaWAN Downlink
• Firmware upgradable via program port
• Powered by external 12v battery
• Back up rechargeable 1000mAh battery
• IP Rating: IP65
• Support default sensors or 3rd party RS485 sensors

Applications:

Weather Station
RS485 to LoRaWAN Converter

Download Directory

Package Includes:

• 1 x WSC1-L
• 1 x RS485 multi-channel Converter
