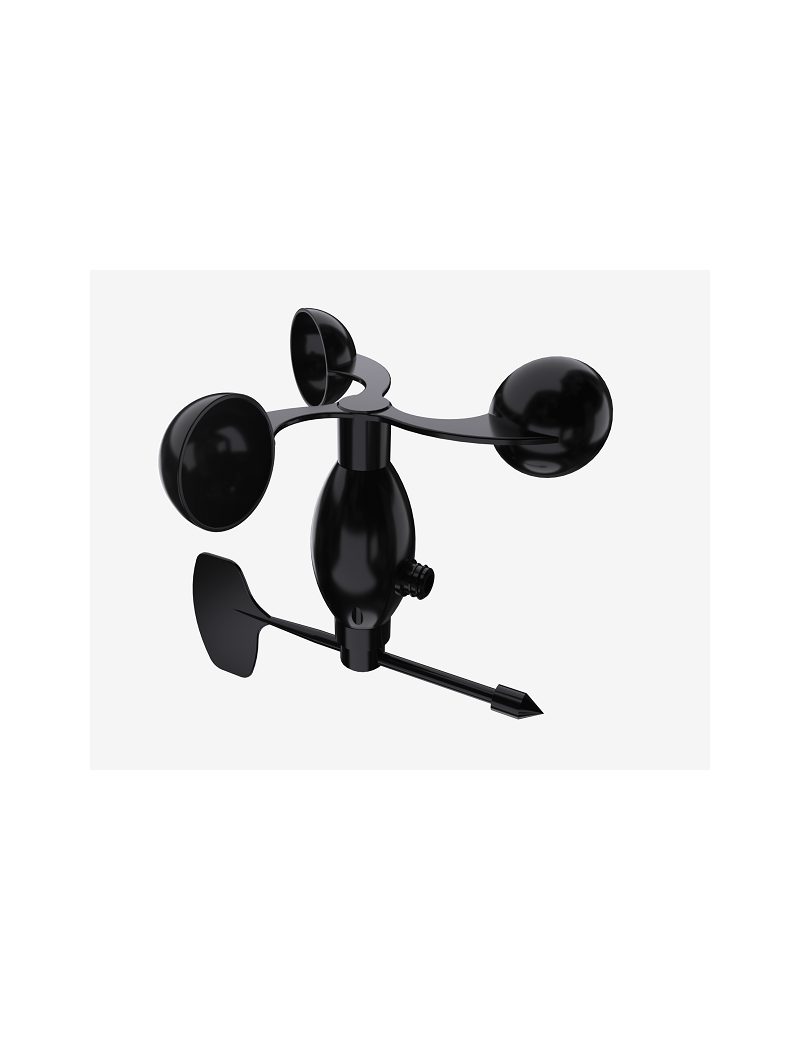

WSS-02 is a RS485 wind speed and wind direction monitor designed for weather station solution.

WSS-02 shell is made of polycarbonate composite material, which has good anti-corrosion and anti-corrosion characteristics, and ensure the long-term use of the sensor without rust. At the same time,it cooperates with the internal smooth bearing system to ensure the stability of information collection .

Users only need to connect WSS-02 RS485 interface to WSC1-L. The weather station main processor WSC1-L can detect and upload the wind speed and direction to the IoT Server via wireless LoRaWAN protocol.

Specifications:

• Wind speed range: 0 ~ 30m/s
• Wind direction range: 0 ~ 360°
• Start wind speed: ≤0.3m/s
• Accuracy: ±（0.3＋0.03V）m/s , ±1°
• Input Power: DC 5~24v
• Interface: RS485
• Working Temperature: -30℃～70℃
• Working Humidity: <100% (no dewing)
• Power Consumption: 13mA ~ 12v.
• Cable Length: 2 meters

Features:

• RS485 wind speed / direction sensor
• PC enclosure, resist corrosion

Applications:

Weather Station
