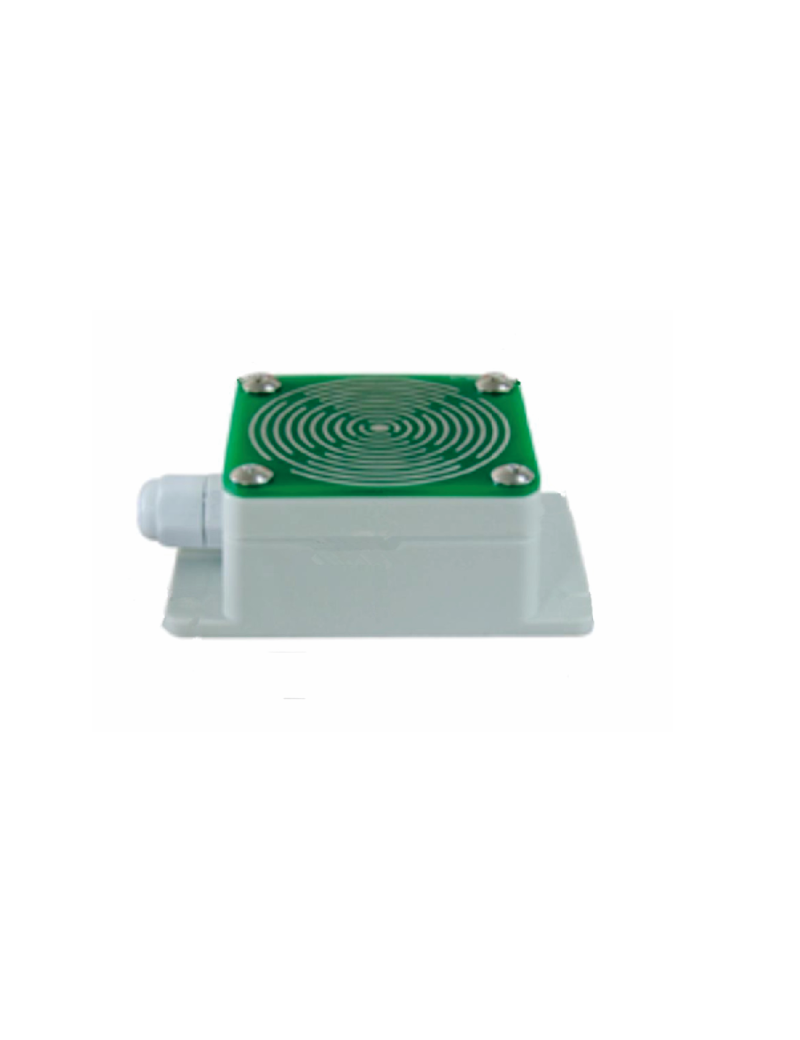

WSS-04 is a RS485 rain / snow detect sensor. It can monitor Rain or Snow event.

WSS-04 has auto heating feature, this ensures measurement more reliable.

WSS-04 is designed to support the Dragino Weather station solution.

Users only need to connect WSS-04 RS485 interface to WSC1-L. The weather station main

processor WSC1-L can detect and upload the SNOW/Rain Event to the IoT Server via wireless LoRaWAN protocol.

Features:

• RS485 Rain/Snow detect sensor
• Surface heating to dry
• grid electrode uses Electroless Nickel/Immersion Gold design for resist corrosion

Applications:

Weather Station

 Specifications:

• Detect if there is rain or snow
• Input Power: DC 12 ~ 24v
• Interface: RS485
• Working Temperature: -30℃～70℃
• Working Humidity: 10～90%RH
• Power Consumption: No heating: 12mA @ 12v, heating: 94ma @ 12v.
