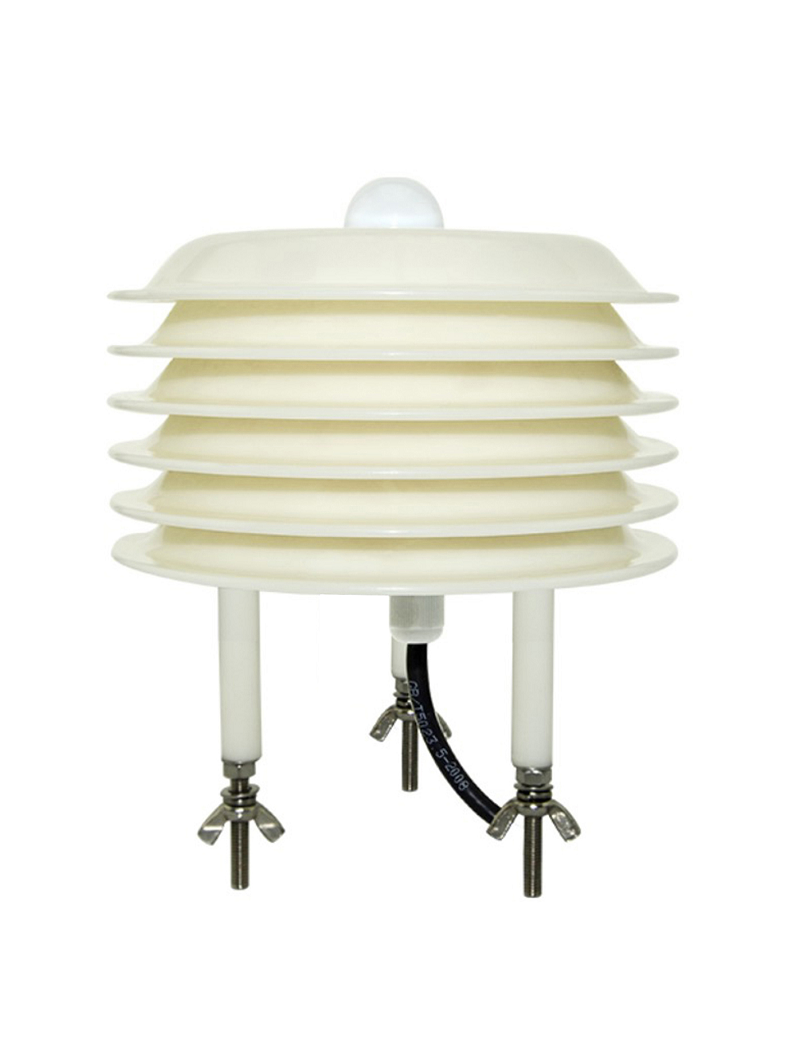

WSS-05 is a 4 in 1 RS485 sensor which can monitor Temperature, Humidity, Illuminance and Pressure at the same time.

WSS-05 is designed to support the Dragino Weather station solution.

Users only need to connect WSS-05 RS485 interface to WSC1-L.The weather station main processor WSC1-L can detect and upload environment Temperature, Humidity, Illuminance, Pressure to the IoT Server via wireless LoRaWAN protocol.

Features:

• RS485 Temperature, Humidity, Illuminance, Pressure sensor

Applications:

Weather Station

Specifications:

• Input Power: DC 12 ~ 24v
• Interface: RS485
• Temperature Sensor Spec: Range: -30 ~ 70℃,resolution 0.1℃,Accuracy: ±0.5℃
• Humidity Sensor Spec: Range: 0 ~ 100% RH,resolution 0.1 %RH,Accuracy: 3% RH
• Pressure Sensor Spec: Range: 10～1100hPa,Resolution: 0.1hPa,Accuracy: ±0.1hPa
• Illuminate sensor: Range: 0～2/20/200kLux,Resolution: 10 Lux,Accuracy: ±3％FS
• Working Temperature: -30℃～70℃
• Working Humidity: 10～90%RH
• Power Consumption: 4mA @ 12v
