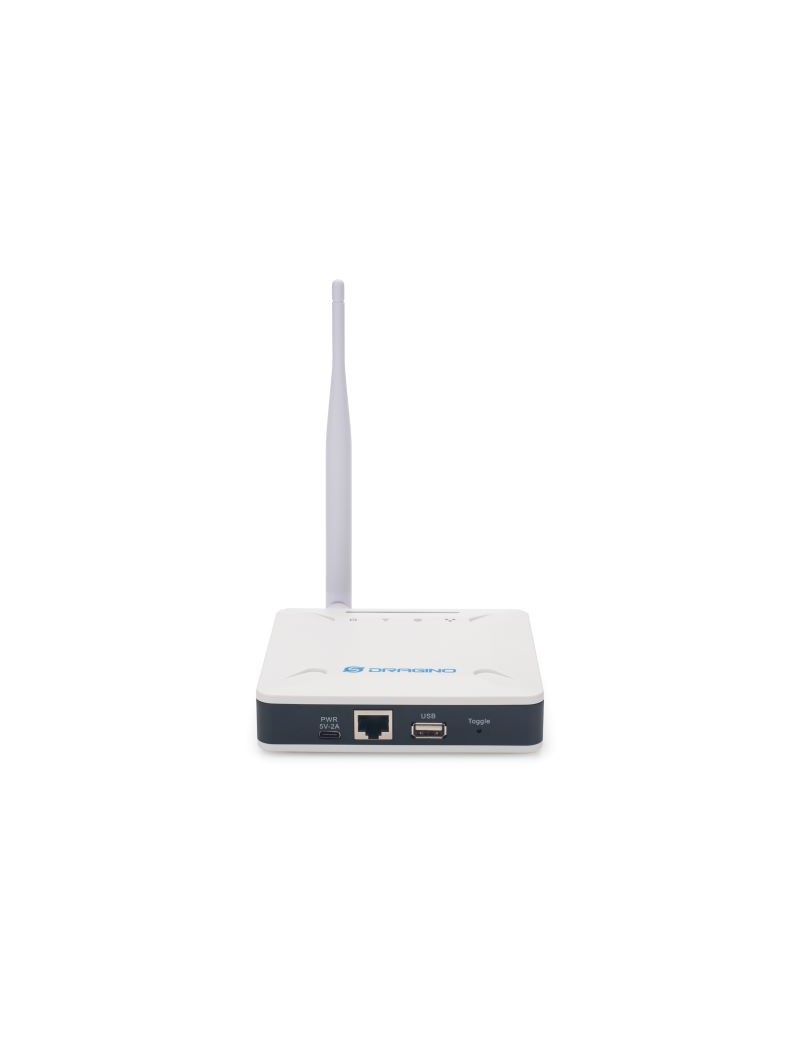

LG01v2 LoRa Gateway
Write your review
134,20 €
Tasse incluse
The LG01v2 is an open-source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi , Ethernet or Cellular Network (via Optional 4G module). The LoRa wireless allows users to send data and reach extremely long ranges at low data rates.
LG01v2 is specially design for peer to peer LoRa protocol instead of LoRaWAN protocol. The LG01v2 use single channel LoRa module to minimize the deployment cost for a private p2p LoRa wireless network.
LG01v2 uses Open Source Linux system. User can modify the Linux part and develop customize software base on it. It has 1.2Ghz Quad-Core CPU , 4GB eMMC storage and 512MB RAM for most application.
LG01v2 supports remote management. System Integrator can easy to remote monitor the gateway and maintain it.
Features:
- Open Source Debian system
- Managed by Web GUI, SSH via WAN or WiFi
- Remote Management
- Auto-provisioning for batch deployment and management
- LoRa Gateway
- Built-in Node-Red local Application server
Specifications:
Hardware System:
- CPU: Quad-core Cortex-A7 1.2Ghz
- RAM: 512MB
- eMMC: 4GB
Interface:
- 10M/100M RJ45 Ports x 1
- WiFi 802.11 b/g/n
Operating Condition:
- Work Temperature: -20 ~ 65°C
- Storage Temperature: -20 ~ 65°C
- Power Input: 5V, 2A, DC
DOCUMENTS:
DR-LG01v2
