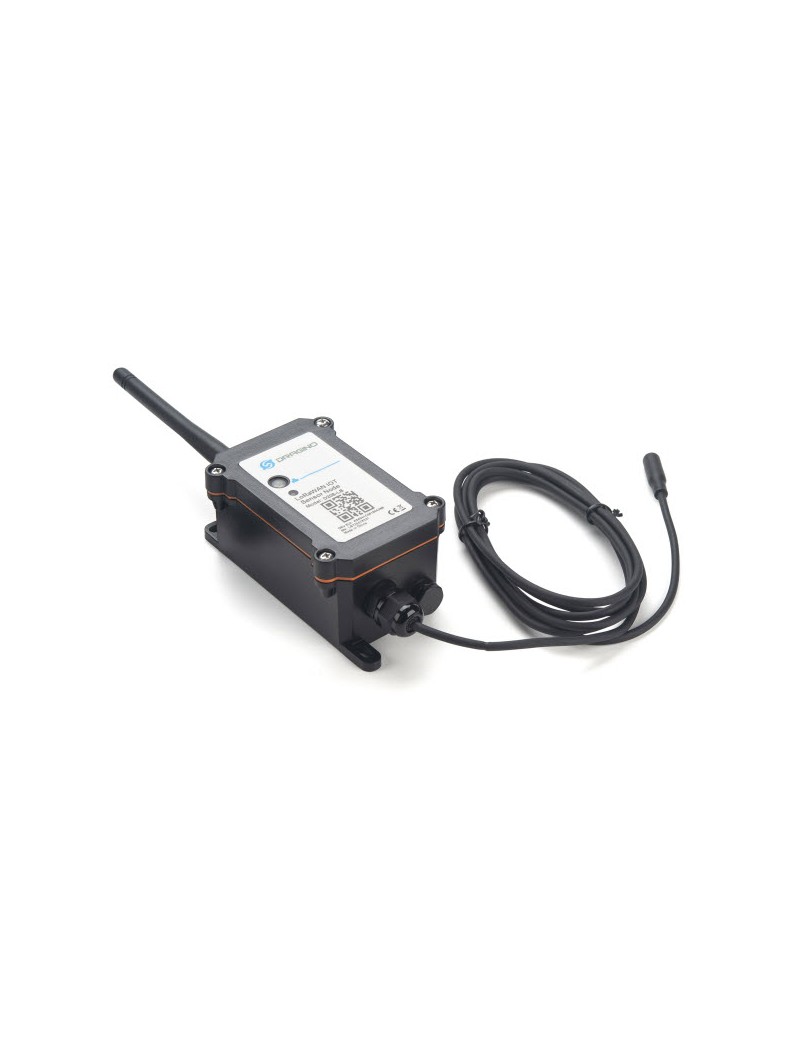

rducam 5MP IMX335 OIS...D20S-LB - LoRaWAN Waterproof /Outdoor Temperature Sensor
(Upgrade Model for LSN50v2-D20)
The Dragino D20-LB is a LoRaWAN Temperature Sensor for Internet of Things solution. D20-LB has 1 ~ 3 temperature probe. D20-LB will convert the Temperature reading to LoRaWAN wireless data and send to IoT platform via LoRaWAN gateway.
The LoRa wireless technology used in D20-LB allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
The temperature sensor used in D20-LB can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C).
D20-LB supports temperature alarm feature, user can set temperature alarm for instant notice. D20-LB supports Datalog feature, it can save the data when there is no LoRaWAN network and uplink when network recover.
D20-LB supports BLE configure and wireless OTA update which make user easy to use.
D20-LB is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.
Each D20-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.
Features:
- LoRaWAN 1.0.3 Class A
- Ultra-low power consumption
- 1 x DS18B20 Temperature sensor, 2 meters
- Measure range -55°C ~ 125°C
- Temperature alarm
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- Uplink on periodically
- Downlink to change configure
- IP66 Waterproof Enclosur
- 8500mAh Battery for long term use
Specifications:
Common DC Characteristics:
- Supply Voltage: built in 8500mAh Li-SOCI2 battery , 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
Temperature Sensor:
- Dallas DS18B20
- Range: -55 to + 125°C
- Accuracy ±0.5°C (max ±2.0 °C).
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
- Excellent blocking immunity
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuously current: 130mA
- Max boost current: 2A, 1 second
Power Consumption
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
documents:
Package Includes:
- 1 x D20-LB LoRaWAN Waterproof /Outdoor Temperature Sensor
