DESCRIPTION

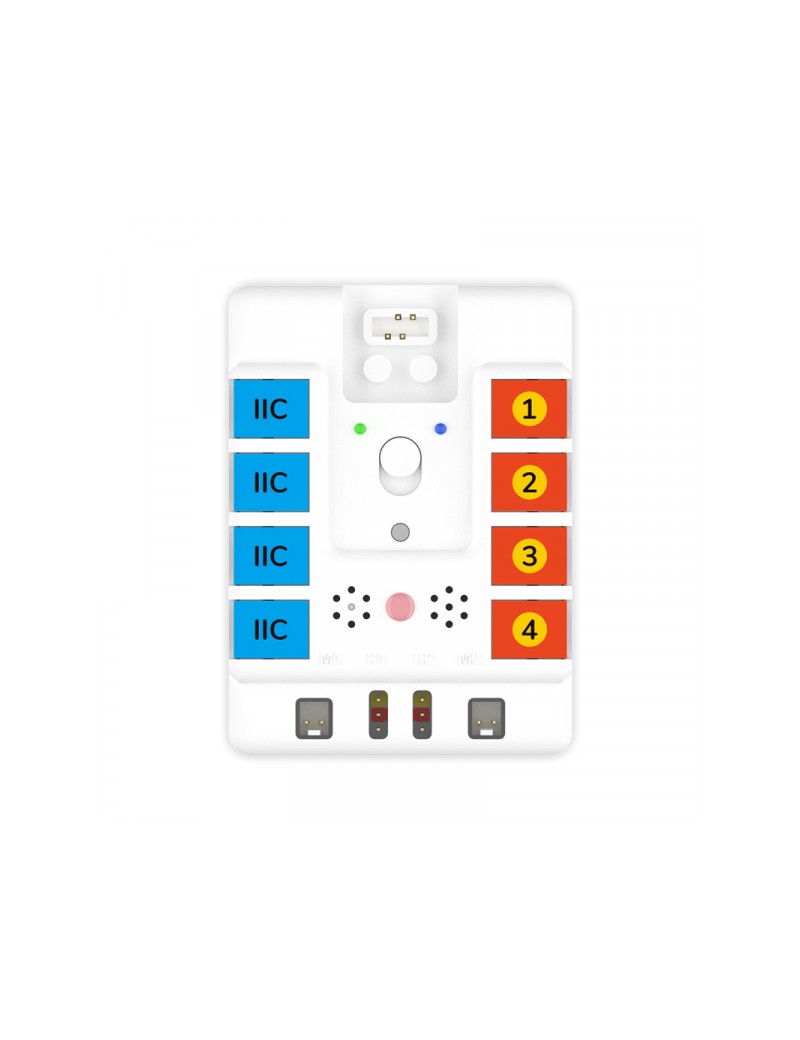

The Arduino 3 in 1 Master Control Box is a programmable masterboard based on ATMEGA328P, it is loaded with the dual drive servo connections, the dual drive motor connections, and 8-way connections for sensors; all the sensor connections are in RJ11 type with fool-proof and anti-plug design; it is also loaded with Lego-compatible ports on the shells which make them possible to connect the modules with Lego bricks.

Note: The Arduino 3 in 1 Master Control Box needs to be used together with the battery box and cable

WHAT IS PlanetX?

RJ11 connection diagram

Simplify the hardware connections to make the teaching much easier in classes.

Compatible to bricks

Compatible to the salient points and bricks plugs, it is possible to create new projects with your ideas.

Compatible to Fischertechnik

Fichertechnik special adapter with more choices available.

Color recognition system

A Special Color recognition system identifies the ports of digital, analog, and IIC with the colored labels.

APPLICATIONS

SPECIFICATIONS

PACKING LIST

LEARN

Arduino 3 in 1 Master Control Box
