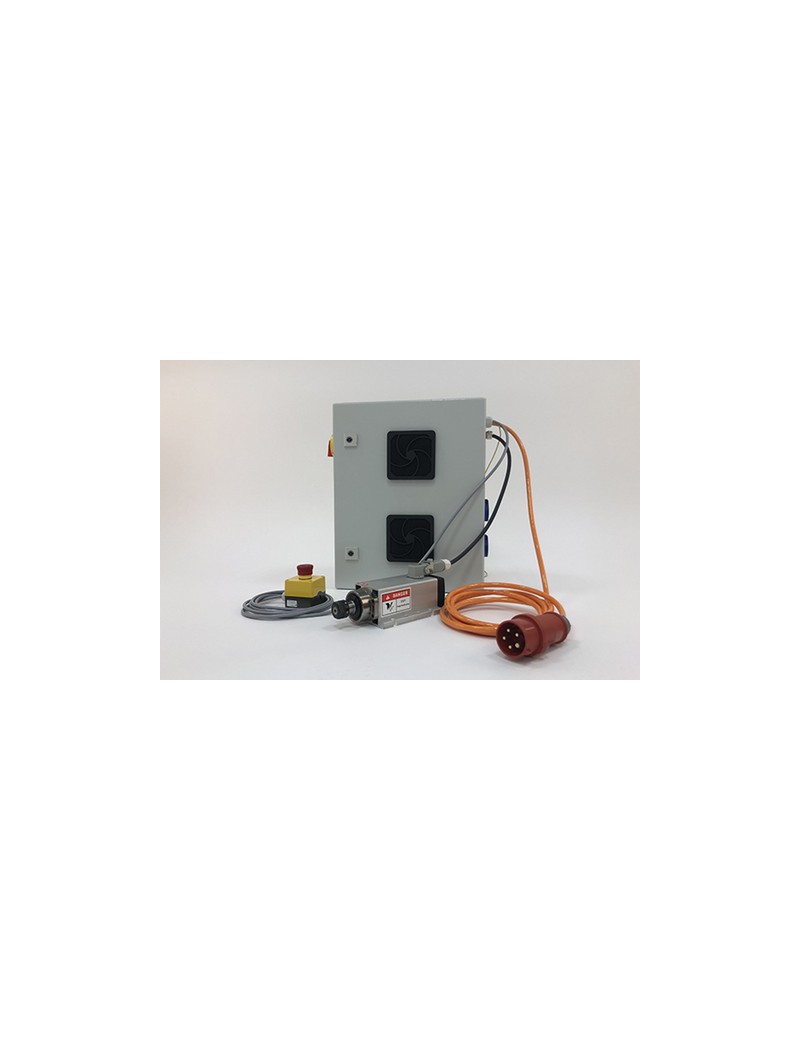

HFS-2200-A Milling Motor (EU) complete (400V)
Write your review
1.939,80 €
Tasse incluse
The STEPCRAFT HF spindle HFS-2200-A is specifically designed for industrial application and operates with high precision, stability and smooth running. The powerful spindle contains a 3-phase asynchronous motor to provide high torque levels and is constructed in a classic design. It is installed on the Z-axis of the Q-Series with the help of M8 slot nuts.
The package "complete" already contains the entire spindle control as well as the CE compliant and safety electronics.
Features:
The package "complete" already contains the entire spindle control as well as the CE compliant and safety electronics.
Features:
- Incl. complete spindle control
- With CE compliant wiring and safety electronics
- Speed: up to 24.000 rpm.
- Rated power: 2,2 kW
- 3-phase asynchronous motor 220 V
- Collet ER20, max. clampable end mill shaft 12 mm,
- Control via Siemens SINAMICS V20 frequency converter, rated power 2,2kW with 150 % overload for 60 seconds incl. integrated filter C2, fully assembled in separate housing
| Accessory for: | Q-Serie |
SC-11031
