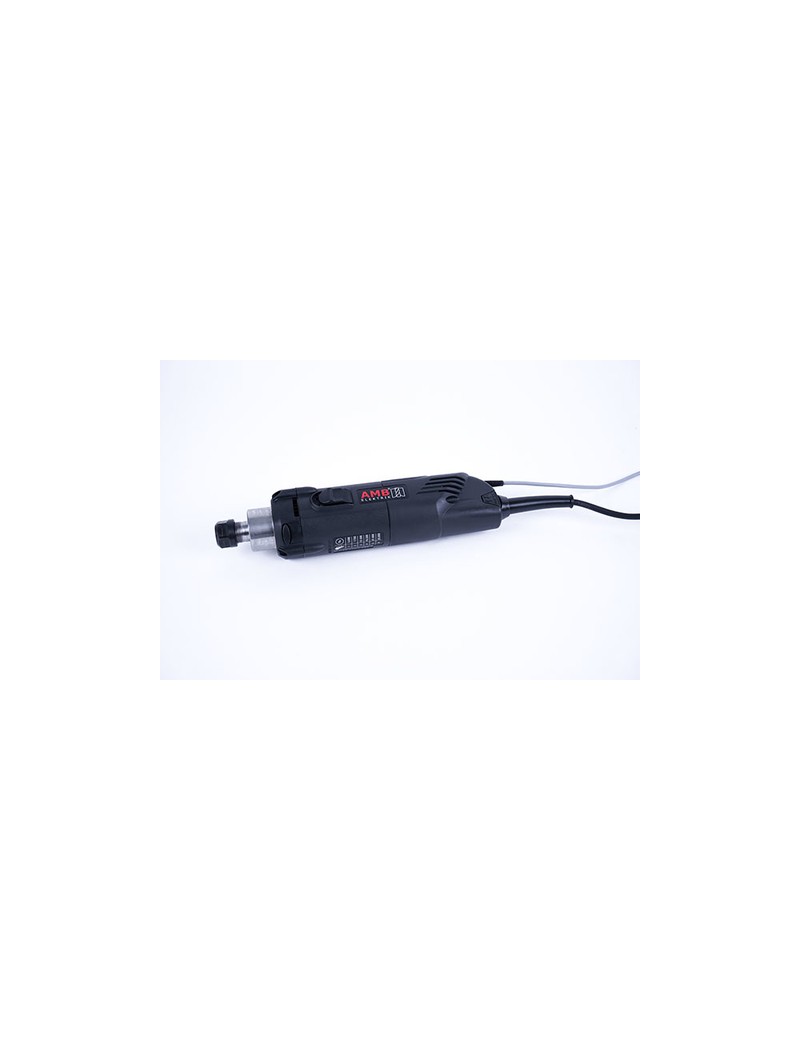

The AMB 1050 FME-1 DI is a powerful milling motor with 1050 W. The milling motor is designed extremely robust and is, thus, suited for milling works in a variety of materials. The speed can be directly set and controlled via the CNC software resp. the controller.

The AMB 1050 FME-1 DI features a stainless steel motor flange with double bearing for higher milling performance, a speed preselection as well as a soft start-up. Additionally, the electronic thermo overload protection prevents the motor from overheating. Furthermore, the electronics are optimally protected against dust and external influences. Thanks to the manual spindle lock, end mills can be exchanged in no time at all.

The carbon brushes feature an integrated shutdown as well as additional vibration absorbing silicone cushions for a longer tool life.

Note: Please take into consideration that this milling motor is not compatible with the 1st generation machines of the D-Series.

For a comparative overview of all our milling motors please click here.


Technical Specifications:

• Slim design
• Supply voltage: 230 V
• Input power: 1050 Watt
• Output power: 600 W
• Speed range: 3.500 - 25.000 rpm
• Max. concentricity: 0,15 mm
• Clamping collar diameter: 43 mm
• Sound level: 78 dB
• Shaft diameter: 1,0 - 8,0 mm
• Weight: 1,7 kg
• Overload protection
• Manual spindle lock

Scope of Delivery:

• 1x AMB 1050 FME-1 DI
• 1x precision collet 3,175 mm
• More collets available here
• 1x sensor cable 2 m incl. PWM converter
