Grove - 3-Axis Digital Accelerometer(±1.5g)

18,30 €
Tasse incluse

Grove - 3-Axis Digital Accelerometer(±1.5g)

Quantità

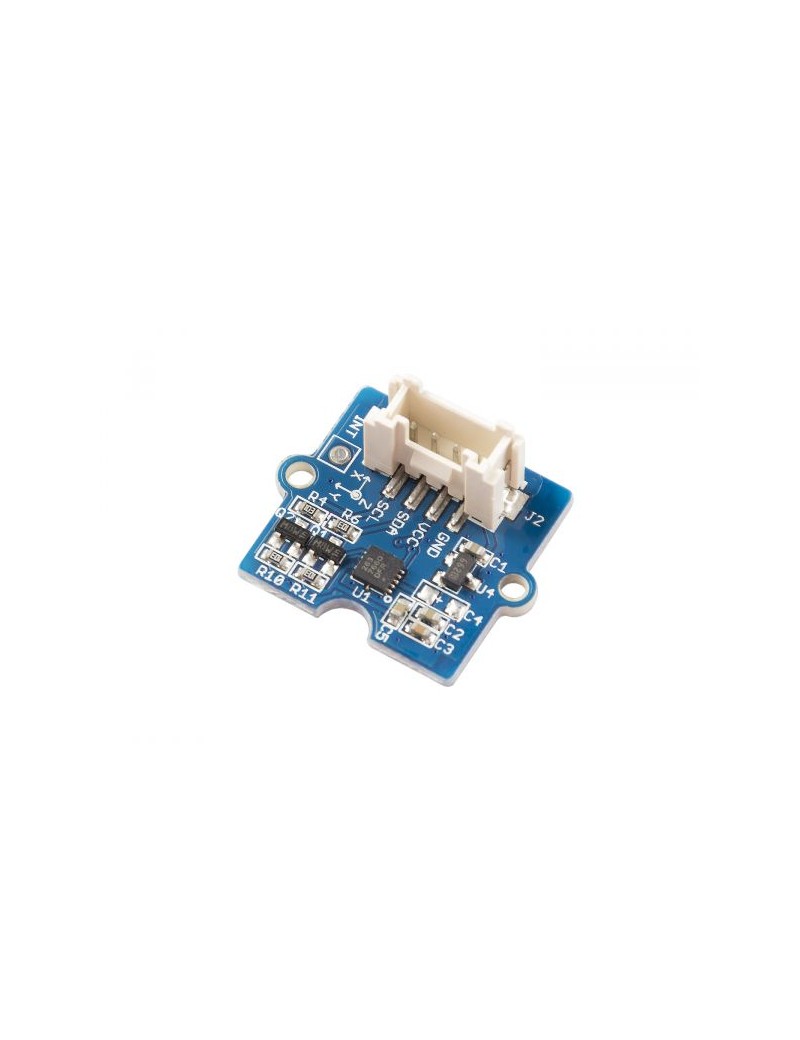

This 3-axis Accelerometer module is based on MMA7660FC with Digital Output I2C. This Module can be used for sensing data changes, product orientation, and gesture detection through an interrupt pin (INT).It is a very low power, low profile capacitive MEMS sensor.



Features

  • Grove compatible interface

  • 3 axis motion/orientation sensing

  • Digital Output (I2C)

  • 10,000 g shock survival

  • RoHS/WEEE lead-free compliant

  • 5VDC input

Application Ideas

  • Motion Detection of Robot

  • Mobile Phone/ PMP/PDA: Orientation Detection (Portrait/Landscape),Image Stability, Text Scroll, Motion Dialing, Tap to Mute

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.



Technical Details

Dimensions 20mm x 20mm x 15mm
Weight G.W 8g
Battery Exclude

Part List

Grove - 3-Axis Digital Accelerometer(±1.5g) 1
Grove - Cable 1

ECCN/HTS

ECCN 7A994
HSCODE 9031900090

Learn

  • [Wiki] Grove - 3-Axis Digital Accelerometer(±1.5g)

    3-Axis Digital Accelerometer is the key part in projects like orientation detection, gesture detection and Motion detection. This 3-Axis Digital Accelerometer(±1.5g) is based on Freescale’s low power consumption module, MMA7660FC.

SE-101020039
