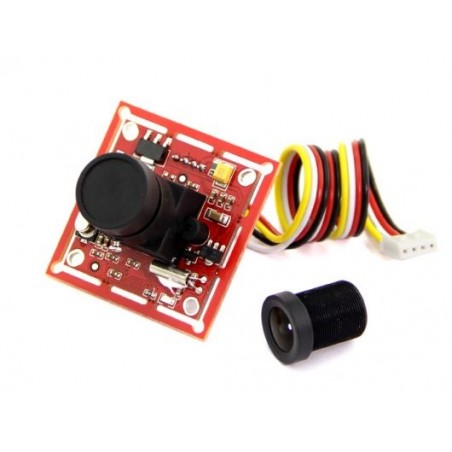

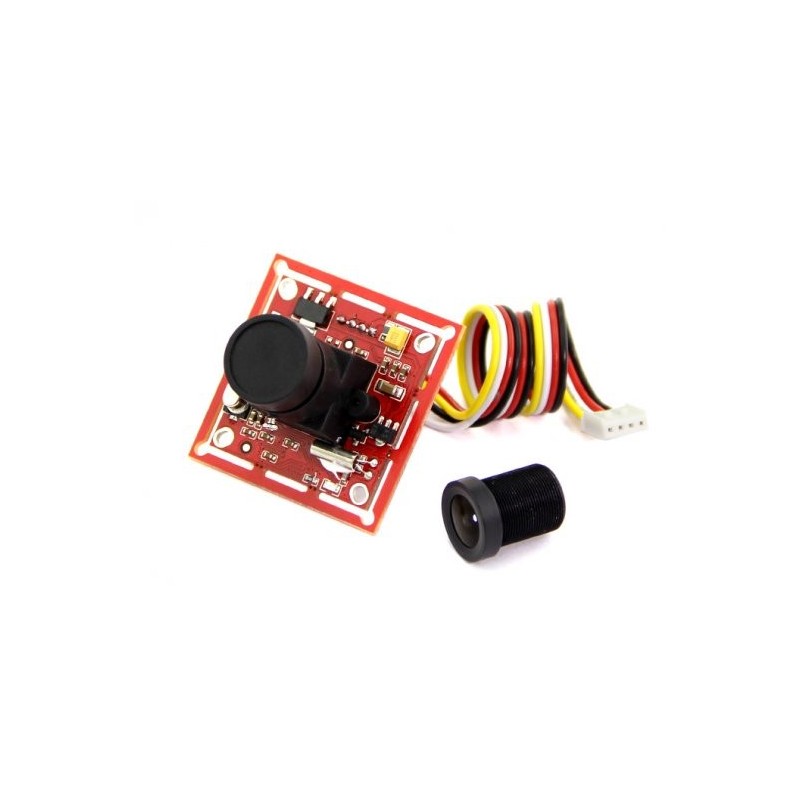

projects, because 30W pixel wouldn't be overwhelming for Arduino, so that real-time image recognition is possible. To make it more fun and playable, lenses of two specs are shipped in this kit. The standard one is for common photo shots and the wide-angle one is specially suitable for monitoring projects.
Specifications
- Input Voltage: 5V
- Pixel: 300,000
- Resolution: 640*480, 320*240, 160*120
- Uart Baud Rate: 9600~115200
- Communication: RS485 and RS232
- Photo JPEG compression, high, medium and low grades Optional
- AGC
- Auto Exposure Event Control
- Automatic White Balance Control
- Focus adjustable
Documents
Please visit our
wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our
forum.
