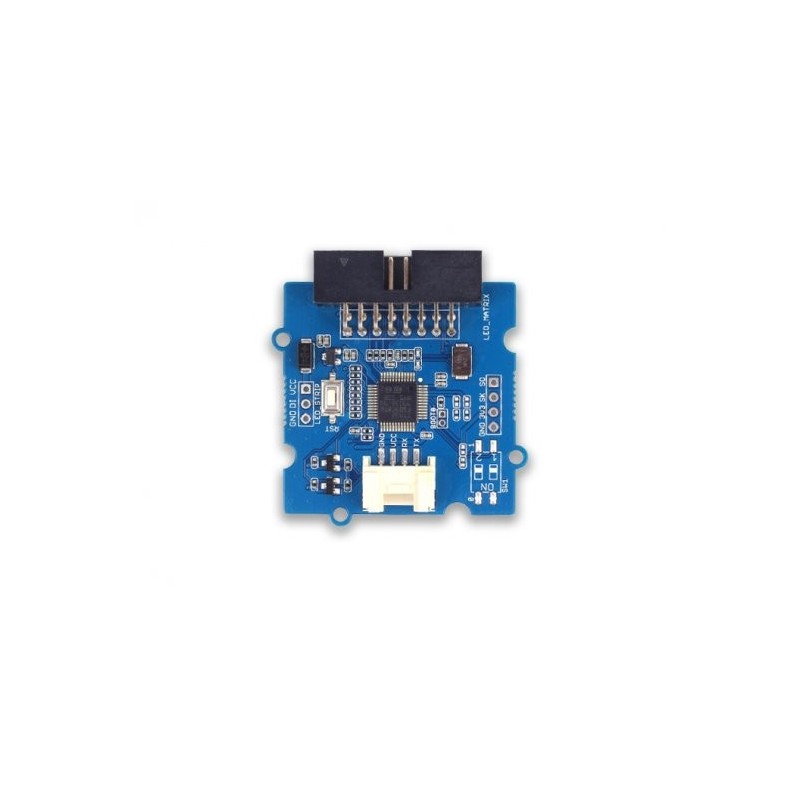

The Grove – LED Matrix Driver v1.0 can be a nice helper when you need to driver a dual color LED matrix. It is built around the neat little chip STM32F103C8T6, which works at a frequency of 72MHz and very low power consumption. You can use the drivers to control a LED matrix sized at 64x32. And as we’ve prepared handy and easy-to-use libraries, you only need to write few lines of code to get it working quickly and display whatever you wish.

Wiring is quite simple as well. Connecting the driver to your development board to the onboard UART interface with a Grove 4-pin cable and to your LED panel through the 16 Pin DBSTAR_HUB08A Header connector, and then you are ready to roll.

Features

• Easy to use
• Supports 64x32 dual color LED Matrix
• Panel-mounting Grove interface

Specification

• Operating Voltage: 5V or 3.3 V
• Typical Operating Current: 32 mA
• Microcontroller: STM32F103C8T6
• Grove Port: UART
• Interface to LED Matrix: 16 Pin DBSTAR_HUB08A Header Connector
• Dimensions: 46.5mm x 4mm

Part List

• 1 x Grove - LED Matrix Driver v1.0

Documents

• For libraries and documents, please visit our Wiki page.
• For technical discussion, please come to our Forum.
• For projects that you would like to share with the community, please visit Recipe.
