Grove - Carbon Dioxide Sensor(MH-Z16)
Write your review
115,90 €
Tasse incluse

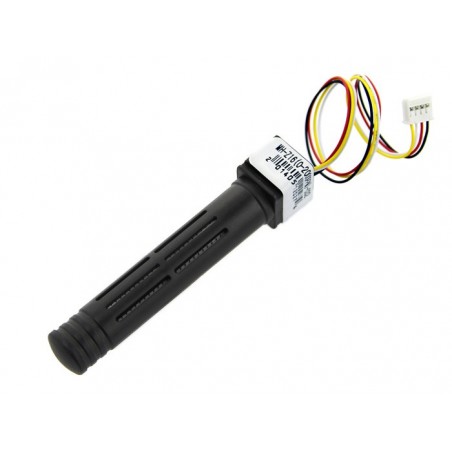

Grove - CO2 Sensor
The Grove - CO2 Sensor module is infrared CO2 sensor high sensitivity and high resolution. Infrared CO2 sensor MH-Z16 Is a general-purpose, small sensors , the use of non-dispersive infrared (NDIR) Present in the principle of the air CO2 Detect , with good selectivity, oxygen- dependent , long life? built-in temperature sensor, temperature compensation ?with UART output , easy to use. It can be widely used in HVAC and indoor air quality monitoring , industrial process monitoring and security , agriculture and livestock production process monitoring.
Specification
- Measuring the range of 0-2000 parts per million (PPM)
- Resolution of 1 PPM 0-2000 parts per million (PPM)
- Accuracy of 200 PPM
- A Warm - up time 3 minutes
- Response Time <90s
- Operating temperature 0 to 50?
- Operating Humidity 0% ~ 90% RH
- Storage temperature - 20-60?
- Operating Voltage4.5 V to 6 V DC
- The Current maximum Current of less than 100 ma, the average Current of less than 50 ma
- Output mode UART
Documents
Please visit our wiki page for more info about this product.
