Grove - Loudness Sensor

12,08 €
Tasse incluse

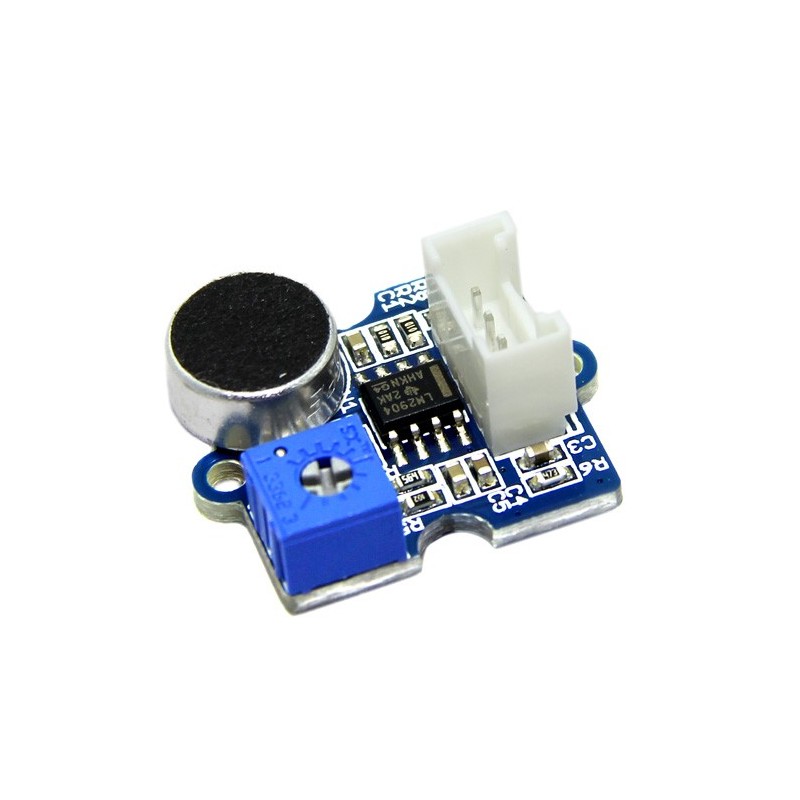

Grove - Loudness Sensor

Quantità
Ultimi articoli in magazzino

"

The Grove - Loudness Sensor is designed to detect the loudness of environmental sound. Based on amplifier LM2904 and a built-in microphone, it amplifies and filters the high frequency signal that received from the microphone, and outputs a positive envelop. This will make for Arduino’s signal acquisition. The output value depends on the level of sound input. In order to avoid unnecessary signal disturbances, input signal will go through two times’ filtering inside the module. Lastly, there is a screw potentiometer that enables manual adjustments to the output gain.
Features
  • Grove compatible interface
  • Wide supply voltage range
  • Built-in signal filtering
  • Gain adjustable via screw potentiometer
Specifications

Item

Min

Typical

Max

Unit

Voltage

3.5

5.0

10

VDC

Working Frequency

50

-

20,000

HZ

Sensitivity

-48

-

66

dB

Signal-to-noise Ratio

>58

dB

Output Signal range

Digital Signal (0-1023)

/

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to ourforum.

"

SE-101020063
