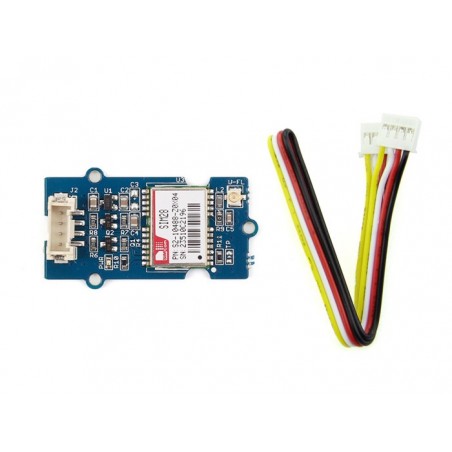

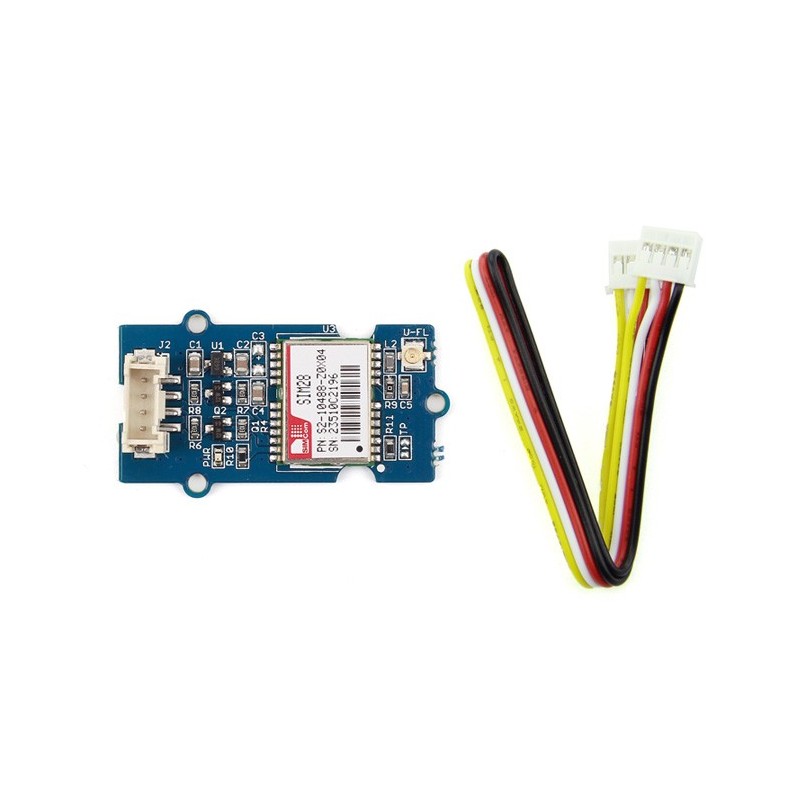

This Grove - GPS module is a cost-efficient and field-programmable gadget armed with a SIM28 (U-blox 6 is old version) and serial communication configuration. It features 22 tracking / 66 acquisition channel GPS receiver. The sensitivity of tracking and acquisition both reach up to -160dBm, making it a great choice for personal navigation projects and location services, as well as an outstanding one among products of the same price class.

Features

• Input Voltage: 3.3/5V

• BaudRate: 4800 - 57600( u-blox version)

• BaudRate: 9600 - 115200

• Default BaudRate: 9600

• Supports NMEA and U-Blox 6 protocols.

• Low power consumption

• Baud rates configurable

• Grove compatible interface

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.

Documents

Please visit our wiki page
