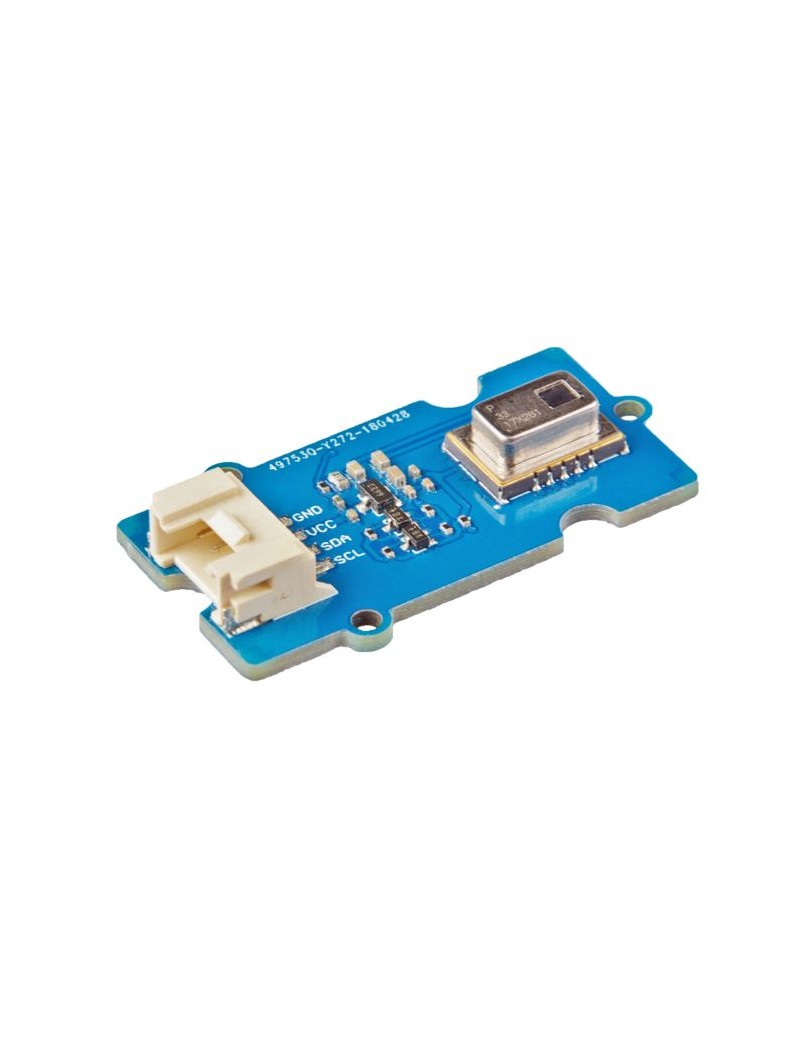

Grove - Infrared Temperature Sensor Array (AMG8833)
Write your review
45,02 €
Tasse incluse
The Grove - Infrared Temperature Sensor Array (AMG8833) is a high precision infrared array sensor which based on advanced MEMS technology. It can support temperature detection of two-dimensional area: 8 × 8 (64 pixels) and maximum 7 meters detection distance.
We provide both Arduino and Raspberry Pi demo for this sensor. It will be a perfect module to make your own thermal camera.
Features
-
Temperature detection of two-dimensional area: 8 × 8 (64 pixels)
-
I2C output (capability of temperature value output)
-
High precision
-
Long detection distance
Typical Applications
-
High function home appliances (microwaves and air-conditioners)
-
Energy saving at office (air-conditioning/lighting control)
-
Digital signage
-
Automatic doors/elevators
Pin Out
Technical details
| Dimensions | 40mm x20mm x6mm |
| Weight | G.W 10g |
| Battery | Exclude |
| Operating Voltage | 3.3V / 5V |
| Temperature range of measuring object | 0 °C to 80 °C +32 °F to +176 °F |
| Operating temperature range | 0 °C to 80 °C +32 °F to +176 °F |
| Storage temperature range | −20 °C to 80 °C –4 °F to +176 °F |
| Temperature accuracy | Typical ±2.5 °C ±4.5 °F |
| Viewing angle | Typical 60 ° |
| Optical axis gap | Within Typical ±5.6 ° |
| Number of pixel | 64 (Vertical 8 × Horizontal 8 Matrix) |
| External interface | I2C |
| I2C Address | 0x68(default) 0x69(optional) |
Part List
| Grove - Infrared Temperature Sensor Array (AMG8833) | 1 |
| Grove cable | 1 |
ECCN/HTS
| ECCN | EAR99 |
| HSCODE | 9025900090 |
| USHSCODE | 90230000 |
| UPC | 841454121404 |
SE-101020557
