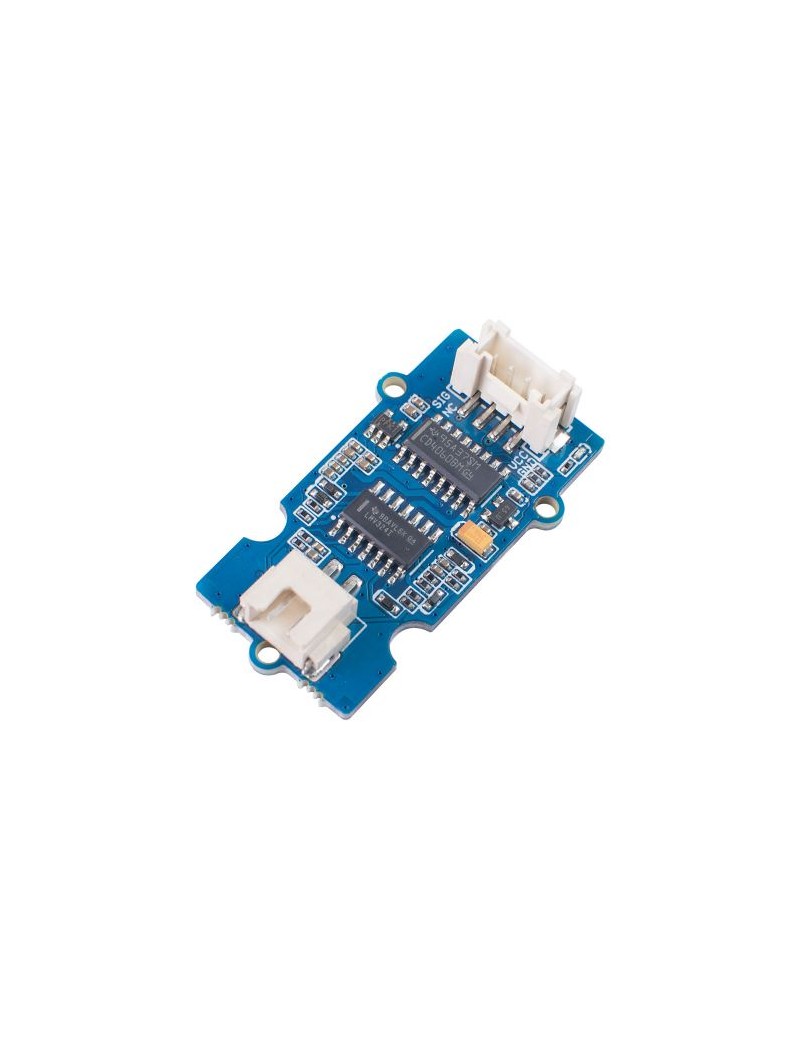

Grove - TDS Sensor/Meter For Water

21,96 €
Tasse incluse
Quantità

PRODUCT DETAILS

Concerned about your water quality? Why not make yourself a TDS meter to monitor water quality to tell you whether the water meets standards of drinking!




Tip

This product can also be compatible with Raspberry Pi Series with the help of 4-Channel 16-Bit ADC For Raspberry Pi (ADS1115)!

Features

  • Analog Signal, easy to implement
  • Support 3.3/5V Input Voltage
  • Good Arduino Compatibility, where 0 ~ 2.3V Output Voltage can be easily implemented in 3.3/5V control system
  • Waterproof TDS Probe


Description

The Grove - TDS Sensor detects the Total Dissolved Solids (TDS) levels in the water which can be used to indicate the water quality. The Grove - TDS Sensor can be applied in water quality applications such as TDS meter, well water, aquarium, hydroponics, etc.



It supports 3.3/5V input voltage and 0 ~ 2.3V Output Voltage making it easy to be compatible with all Arduino Boards. The sensor also provides a waterproof probe, making the testing process much easier to handle.



What is TDS and why should you care

TDS = Total Dissolved Solids, is a measure of the dissolved combined content of all inorganic and organic substances present in water. Typically, the higher the TDS value, the more substances dissolved in water. Hence, higher levels of Total Dissolved Solids (TDS) can indicate that water has more contaminants that can pose health risks.


Applications

  • TDS meter/TDS tester
  • Swimming pool
  • Aquarium
  • Well water
  • Hydroponics



Specifications

Grove - TDS Sensor

  • Input Voltage: 3.3/5V
  • Output Voltage: 0 ~ 2.3V
  • Working Current: 3 ~ 6mA
  • TDS Measurement Range: 0 ~ 1000ppm
  • Power indication LED
  • Connection Interface: Grove 4-Pin / XHB 2.54mm 2P

 Waterproof Probe
  • Cable Length: 60cm
  • Connection Interface: XHB 2.54mm 2P



Hardware Overview


Note

  • The Waterproof TDS probe cannot be used in water above 70°C.
  • The sensor cannot be used to measure flowing water.
  • The sensor cannot be used to measure water with high pollution concentration.
  • The Grove sensor itself is not waterproof.


Part List

  • Grove - TDS Sensor x 1
  • 20cm Grove Cable x 1
  • Waterproof TDS Probe x 1



Dimensions 20 x 40 cm
Weight 0.025

ECCN/HTS

HSCODE 9027900000
USHSCODE 9023000000
UPC

LEARN AND DOCUMENTS

Learn


This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.

Water Quality Station using Seeeduino XIAO that detects TDS, turbidity, and water level.

The Grove - TDS Sensor detects the TDS (Total Dissolved Solids) levels in water which can be used to indicate the water quality. The Grove - TDS Sensor can be applied in water quality applications such as TDS meter, Well water, Aquarium, Hydroponics and etc.

Water Quality Station using Seeeduino XIAO that detects TDS, turbidity, and water level.
