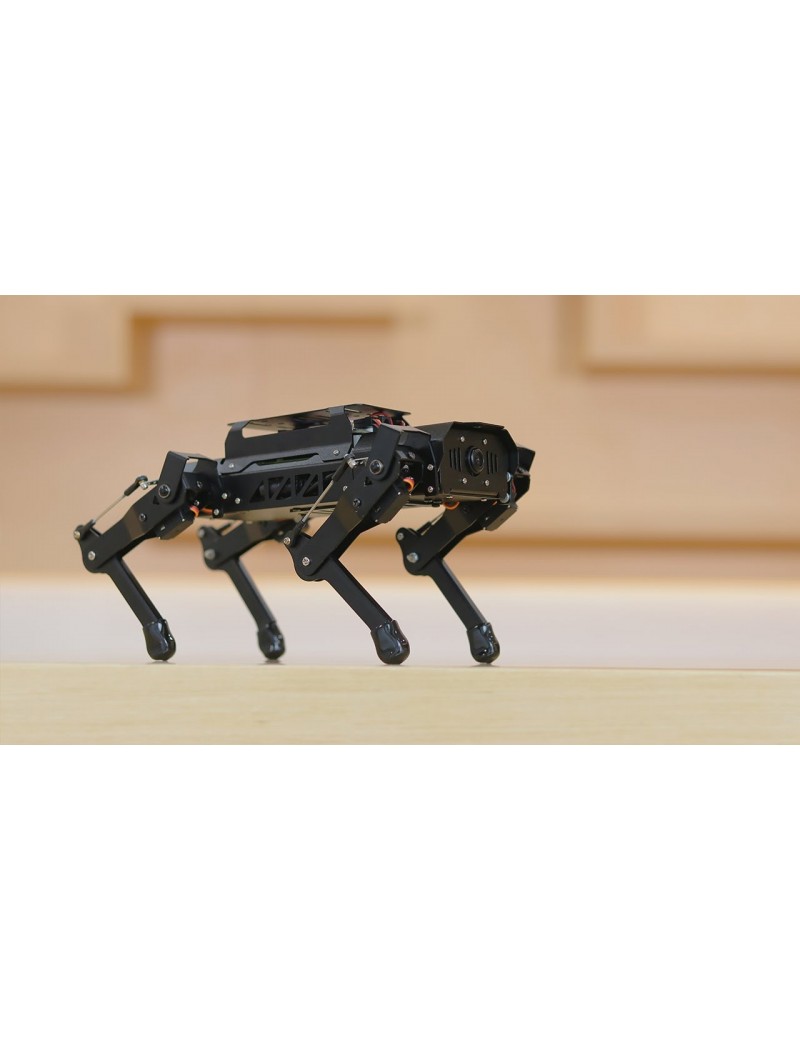

PuppyPi PRO kit Quadruped Robot with AI Vision Powered by Raspberry Pi ROS

Quantità

1._e941d3c6-6def-4317-894e-a7478abdf357.

Product Description
PuppyPi is an AI vision quadruped robot driven by Raspberry Pi 4B and built on the Robot Operating System (ROS). It is equipped with 8 stainless steel coreless servos, delivering high-precision performance, rapid rotation speed, and a robust torque of 8KG.cm. With an IMU sensor, PuppyPi can detect its posture in real-time, enabling self-balancing capabilities.
2._1.jpg?v=1697876283
Linkage Mechanism, Efficient Movement
PuppyPi's legs employ a linkage mechanism to increase the angular velocity of its lower legs. The independent movement of different parts of the leg contributes to a greater rotation range.
3._-_2.jpg?v=1697876284
Gait Planning, Free Adjustment
Walk, Amble and Trot gaits can be realized through adjusting touchdown time, lift time and lifted height of each leg as well as the speed of switching front legs and hind legs.
20231023-145939.jpg?v=1698044467
Equipped with Coreless Servos
Equipped with stainless steel coreless servos which features high accuracy, fast rotation speed and strong torque.
5APP.jpg?v=1697876284
FPV Image Feedback, APP Control
PuppyPi supports Android and IOS dual-system APP control, which not only allows body remote control, but also allows you to see the first visual image of the robot dog.

6._28f8e32c-adf6-4135-ac7c-7695ff54f3c2.

7._28ca62ac-e9d4-45a9-bd27-c25118019fe4.
PC Software Control
Through PC software PuppyPi's its height and inclination can also be adjusted to make it turn as walking.
8._95228500-68a3-40f0-acda-0d3278b88c70.
Support APP Control
Android and iOS mobile APP are available. Via the APP, you can remotely control the robot and view what the robot sees.
9._237074c7-75d4-478a-b59f-4a8891930890.
Python Programming
All intelligent Python code is open source, with detailed annotations for easy self-study.
10._bfff64de-f485-4707-a2c0-9169602922aa
Intelligent Self-balancing
The built-in IMU sensor can monitor PuppyPi's posture in real-time to adjust its joints to balance the body.

11._1.jpg?v=1697880580

a1b4798cfcfd4177bce12ace2996e49b.jpg?v=1

Lidar Functions

PuppyPi Pro is equipped with a mini TOF lidar.

1103_01_cdf6134c-d86c-4015-8e13-a7eecd41

5APP__02.jpg?v=1699069509dcbc8e076970fccb8cbacc102e882a16.jpg?v=1

ROS Robot Operating System
Global Popular Robotic Communication Framework
ROS is an open-source meta operating system for robots. It provides some basic services, such as hardware abstraction, low-level device control, implementation of commonly used functionality, message-passing between processes, and package management. And it also offers the tools and library functions needed to obtain, compile, write, and run code across computers. It aims at providing code reuse support for robotics research and development.
Copy-3_3x_0b9e93ba-0984-4459-87e7-ed76b1
Product Structure
14._PC_0545d274-2006-4c19-a934-0a62b0bd4
HD 120° Wide-angle Camera
15._6fc871dd-f039-4404-ba92-cb7e980c1c42
Powerful Coreless Servo
PuppyPi incorporates 8 stainless steel coreless servos that offer high accuracy, rapid rotation speed, and a strong torque output of 8KG.cm.
16._1_f6ea257d-ed96-4a7e-b8b1-f6ea369e9e
TOF Lidar
LiDAR-LD19-TOF Lidar ranges by the means of Time-of-flight (TOF). Its ranging radius reaches 12m and the ranging frequency is 4500Hz. Lidar together with ROS can achieve indoor mapping and navigation with ease.
17._1_a5bf1ce8-077b-408d-8a56-6f3c4092ee
18..jpg?v=1697884534

High-rate Lipo Battery

Adopt 7.4V 2200mAh 20C built-in high-rate Lipo battery extending PuppyPi's working time to 60 minutes.

19..jpg?v=1697884534

Aluminium Alloy Body

Aluminium alloy structure contributes to outstanding fall-resistance, anti-collision, inner protection, rigidity and load capacity!

20..jpg?v=1697884534

Voltage Display Module

Voltage display module can display the current battery level of PuppyPi letting you charge in time!

Specification Parameters
Size: 226*149*190mm
Weight: About 720g
Material: Aluminium alloy
Resolution: 480P
Robot arm (DOF): 8DOF
Power: 7.4V 2200mAh Lipo battery
Hardware: RaspberryPi CM4 & RaspberryPi expansion board
Software: PC software, iOS/ Android APP
Servo HPS-0618SG coreless servo
Control method: PC, phone and handle control
Package size(standard kit): 315*315*165mm
Package weight(standard kit): About 1500g
Servo: LX-224HV, LFD-01M
Product Parameters
23._f2d89d59-9d84-4cb7-825b-64abc0ebc047
Dimensional Diagram
22._2ef2c2f3-2520-44e9-8100-d2cb96ca1989
Raspberry Pi Expansion Board
24._9d786bdb-22b0-482d-a8bb-fb96e5d6c545
Learning Materials
PuppyPi Standard Packing List

01_014bbf0d-0b86-49b0-a747-81efcd54b27e.

PuppyPi Advanced Packing List

02_314a0020-bfa6-44c8-a92c-c23ff3585f5e.

PuppyPi Pro Packing List

03_1fabb163-4c47-4ed1-907f-723b9fda634e.
