Tankbot Track Robot Car
Write your review
Product Description
Powered by STM32, Tankbot is an intelligent carrying robot. It is loaded with a robotic arm of 6 DOF and adopts intelligent serial bus servo. Tankbot supports APP, handle and somatosensory glove control. With the help of the robotic arm, it can complete picking and transferring tasks easily.
There are multiple built-in sensors on it, including ultrasonic sensor, sound sensor, 4-channel line follower, acceleration sensor, etc., which helps to expand more creative games!
There are multiple built-in sensors on it, including ultrasonic sensor, sound sensor, 4-channel line follower, acceleration sensor, etc., which helps to expand more creative games!
Feature
- Ample tutorials for you to fully enjoy the robot games
- Compatible with STM32 programming and open-source codes and schematic
- Up to ten interesting robot games and support APP, handle and somatosensory control
- Compatible with Hiwonder series sensors making secondary development possible
- Adopted intelligent serial bus servos can achieve accurate picking and transferring
Ultrasonic following
Standing after rollover
Fixed distance picking
Line following
Line following and Picking
Sound control
Robot Synchronization Controller Control
Wireless Glove Control

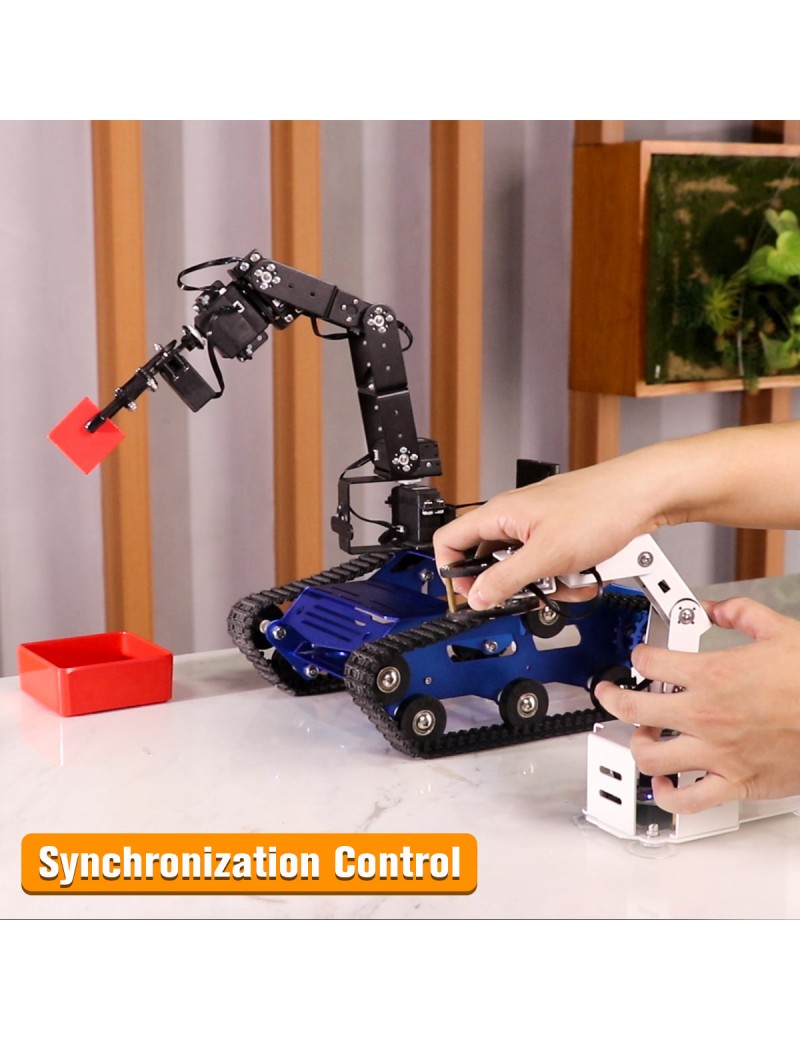

Synchronization controller can control Tankbot to perform the same action as it simultaneously.
Making specific gesture after wearing wireless glove can easily control Tankbot's movement.
Handle Control
APP Control (Android Only)
Two remote control methods, APP and handle control, enable you to control Tankbot at your fingertips.
Intelligent Serial Bus Servo
The intelligent bus servo involves three ports, adopts metal gear, and provides temperature and voltage feedback
Compatible with Hiwonder Sensors
Compatible with OLED display, touch sensor, RGB light, temperature sensor, knob sensor, fan module, etc.
Powerful Control System
- Provide source codes and schematic
- Support serial bus servo control and motor control
- Support PS2 wireless handle control and Android APP control
- Reserve interfaces for expanded modules and support secondary development
- Designed with low-voltage alarm and 6-channel servo overcurrent protection
Packing List
1* Tankbot metal chassis
1* 6 DOF robotic arm
1* Open-source controller
1* Ultrasonic sensor
1* Sound sensor
1* Tilt sensor
1* 4-channel line follower
1* Bluetooth module
1* USB downloader
1* PS2 handle
1* Handle receiver
1* Power adaptor
1* 7.4V 2200mAh lithium battery
1* Wire pack
1* Tools
1* Screw bag
1* 6 DOF robotic arm
1* Open-source controller
1* Ultrasonic sensor
1* Sound sensor
1* Tilt sensor
1* 4-channel line follower
1* Bluetooth module
1* USB downloader
1* PS2 handle
1* Handle receiver
1* Power adaptor
1* 7.4V 2200mAh lithium battery
1* Wire pack
1* Tools
1* Screw bag
Wireless Glove/ Robot Synchronization Controller (Optional)
| Item | Specification |
| Weight | 2.16KG |
| Normal working voltage | 6.9V-7.4V |
| Full battery life | 100min |
| Full charge time | 3-4 hours |
| Load capacity | 0.5KG |
| Extreme speed | 0.27m/s |
| Gripper load capacity | 0.22KG |
| Grade ability | 25° |
| Ultrasonic detectable distance | 2cm-400cm (accuracy: 3mm) |
| Packing List | 1* Tankbot metal chassis 1* 6 DOF robotic arm 1* Open-source controller 1* Ultrasonic sensor 1* Sound sensor 1* Tilt sensor 1* 4-channel line follower 1* Bluetooth module 1* USB downloader 1* PS2 handle 1* Handle receiver 1* Power adaptor 1* 7.4V 2200mAh lithium battery 1* Wire pack 1* Tools 1* Screw bag Wireless Glove/ Robot Synchronization Controller (Optional) |
HIW-TANK
