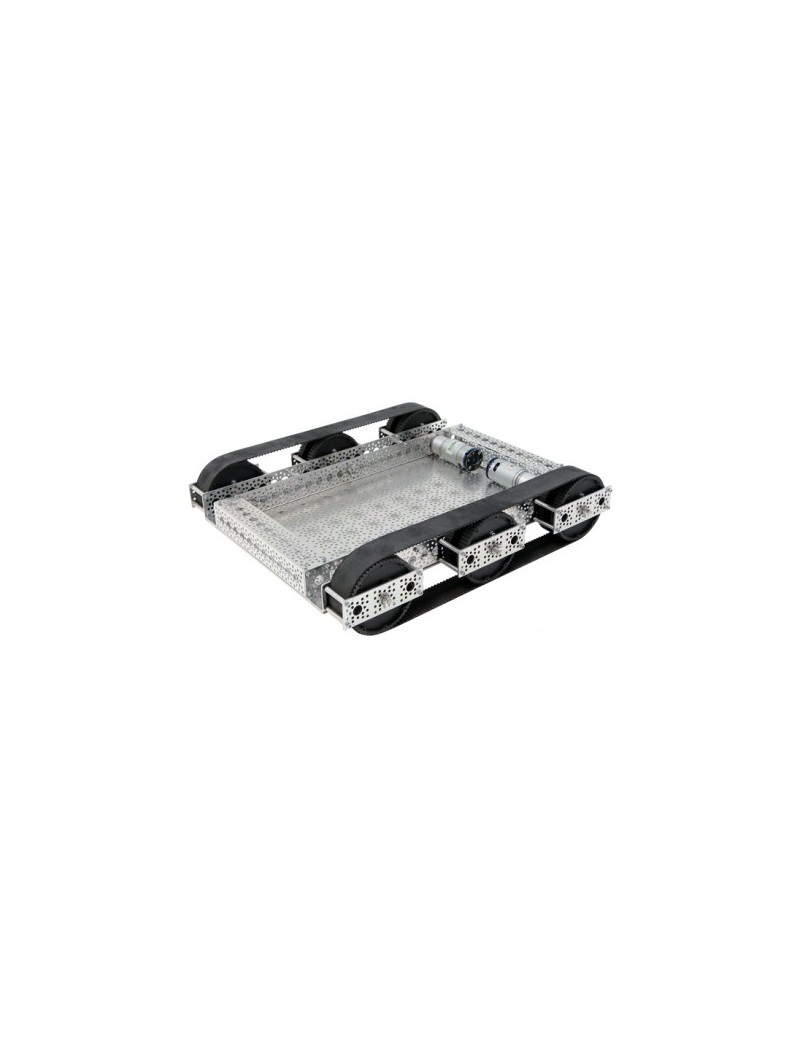

Agent 390™ with motors

547,78 €
Tasse incluse
Quantità

Agent-390-Banner
Meet Agent 390™ - a powerful tracked robot platform from Actobotics®.  Incorporated is a smooth, ball bearing supported, drive track system to achieve high maneuverability and omnidirectional control. Although the contact patch on the tracks are smooth, they still offer fantastic traction and climbing ability. The 18” x 16.42” aluminum chassis provides an extremely rigid base which can carry well over 50lbs. The flat top plates offer an easy way to attach additional components directly to the platform, and the center track idler can be shifted to be closer to the front or back. The side plates (triple channel brackets) are tied together using 6-32 tapped aluminum standoffs that also serve to hold the belt in place. These plates incorporate the Actobotics® hole pattern for mounting other components.  Because many of you may already have motors you want to utilize for driving the Agent 390, we offer this kit with or without the 313rpm HD precision planetary gearmotors and mounts. If you order this kit without the gearmotors, be sure to purchase a motor mount that is compatible with the motor you plan to use. Watch the assembly video.

SPECS

637182-Agent-390-Parts-with-Motors-600px



ASSEMBLY REQUIRES (not included):
#1 Phillips Screwdriver
3/32” hex key
7/64” hex key

INCLUDED PARTS:
(2) 638280 313 RPM Gearmotors (not included w/ #637184)
(2) 585462 18” Aluminum Channel
(2) 585450 9” Aluminum Channel
(2) 555174 Motor Mount (not included w/ #637184)
(4) 545360 Hub Mount C
(7) 625102 1/4” Clamp Collars (2pk)
(8) 535198 1/4” x 1/2” Flanged Ball Bearing (2pk)
(2) 625100 6mm-1/4” Clamping Coupler
(4) 634164 1/4” Shaft, 4” long
(2) 634162 1/4” Shaft, 3” long
(6) 633140 6-32 x 1.5” Standoff (4pk)
(6) 633126 6-32 x 0.75” Standoff (4pk)
(6) 545388 Hub Adaptor
(12) 615394 60T Hub Pulley
(6) 545588 1/4” Bore Clamping Hub
(1) 545532 Channel Attachment Plates (2pk)
(2) 585006 9” x 12” Channel Plate
(1) 632106 6-32 x 1/4” Socket Head Cap Screws (25pk)
(1) 632108 6-32 x 5/16” Socket Head Cap Screws (25pk)
(2) 632110 6-32 x 3/8” Socket Head Cap Screws (25pk)
(3) 632112 6-32 x 7/16” Socket Head Cap Screws (25pk)
(1) 632116 6-32 x 9/16” Socket Head Cap Screws (25pk)
(2) 632144 #6 Standard Washers (25pk)
(2) 636077 39", 1.5” Wide Track
(6) 585580 Triple Channel Brackets
(1) 633104 1/4” Plastic Spacers (12pk)


637182_Schematic_no_plates
637182_Schematic

637182_Center_Idle



Dimensions 18" x 16.42" x 4.29"
Product Weight 8.3 lbs (with motors); 6.58 lbs (no motors)
Motor Size Compatibility 6-12V Heavy Duty Premium Planetary Gearmotors
