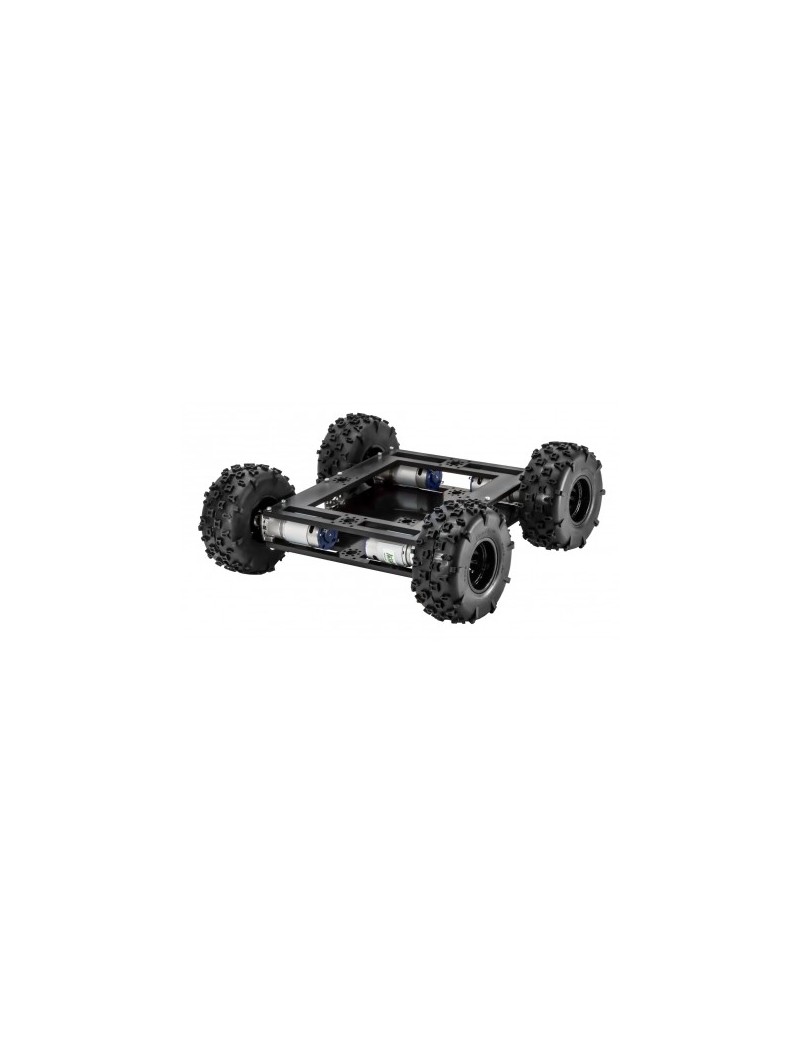

Prowler Robot Kit with motors

364,78 €
Tasse incluse
Quantità

The Prowler™ offers a great starting platform for any robotics project. With 313rpm ball-bearing, metal geared, Premium Planetary Gear Motors and high-traction 5.4” off-road tires, this is one powerful platform! The 9” x 10.5” chassis plates offer a large base for customization and electronics. The distance between the top and bottom plates (1.32”) is designed for our hub mounts to fit perfectly inside; allowing for quick and easy attachment of other Actobotics® components. The 1/4” ABS construction is durable, but also easy to drill for custom add-ons. Assembly requires a 7/64 Hex Key (sold separately). We can’t wait to see what you do with this stealthy, low-profile robot; be sure to send us photos of your custom build! Questions about this kit? Email tech@servocity.com  Watch the assembly video below.



SPECS

Included Parts:
(2) Black Revolver Wheels (Pair) 82062
(2) Leopard Off-Road Robot Tires (Pair) 595644
(2) 12mm Hex Wheel Adaptor D, 6mm Bore (Pair) 545652
(4) Aluminum Motor Mount E 555188
(2) 90 Degree Quad Hub Mount 545360
(1) .4375"L x 6-32 Zinc-Plated Alloy Steel Socket Head Cap Screw 632112
(2) ABS Plates

Optional Parts: 313 RPM Premium Planetary Gear Motors 638280

Motor Specifications:
Operating Voltage Range: 6~12VDC
Rated Voltage: 12VDC
Rated Load: 4.5 kgf-cm (62.5 oz-in)
Operating Temperature: -10 ~ +60°C
Max No-Load Current: 0.52A
No-Load Speed: 313 RPM
Min. Stall Torque: 30 kgf-cm (416.6 oz-in)
Max. Stall Current: 20A @ 12VDC
Dielectric Strength: 250 VAC
Motor Brush Type: Graphite
Output Power at Max. Efficiency: 13W
Gear Type: Planetary
Gear Ratio: 27:1
Bearing Type: Dual Ball Bearing
Shaft size: 6mm (0.236”)
Net Weight: 330g (11.64oz)

Product Weight 5.5 lbs (with motors)
Tire Size 5.4"
video:
https://youtu.be/lKTYnwVzbd8
SCT-637194
