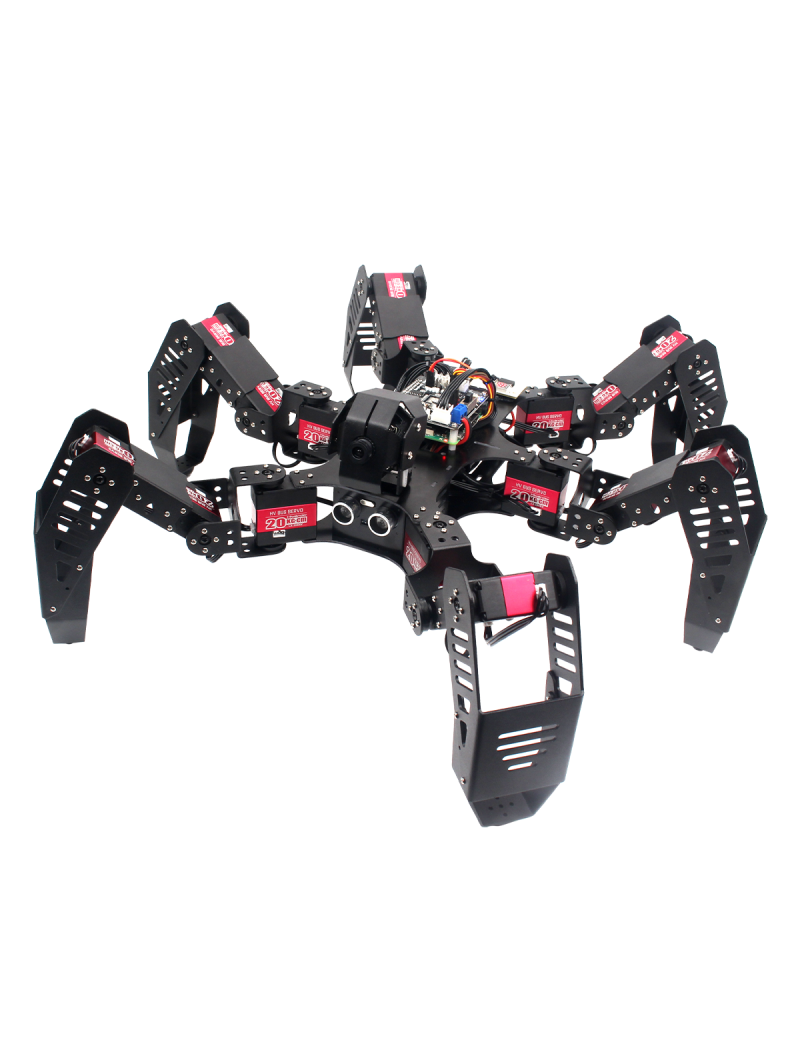

SpiderPi: AI Intelligent Visual Hexapod-Raspi 4Gb

Quantità

AVAILABLE ONLY WITH RASPBERRY PI 4 - 4GB

  • High voltage bus servo
  • Video transmission
  • Provide open source code
  • Based on Raspberry Pi 4B and Raspberry Pi extension board
  • PC software,phone App and VNC remote desktop control

SpiderPi features high-res camera with 2-Degrees-of-Freedom rotation, which can carry out real-time survey of the surrounding environment and return the screen data to the mobile phone or computer. The SpiderPi with ultrasonic sensor and voltage display module can turn quickly and dynamically. It also supports color recognition, object tracking, ultrasonic obstacle avoidance and visual line following.

Feature

  • Large capacity battery, long working duration

  • Powered by Raspberry Pi, the powerful central controller

  • Provide PC software source code and Python source code

  • Installed high-definition camera, catch the real-time image

  • High voltage bus servo, reduce the current by more than 60%

  • Voltage display,  measure the current-voltage of the robot battery

  • Support PC software, phone App and VNC remote desktop control

SPECIFICATION:

Item Specification
Raspberry Pi 4B Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory: 1GB, 2GB or 4GB LPDDR4(depending on model)
Connectivity:
2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
LAN, Bluetooth 5.0, BLE
Gigabit Ethernet
2 × USB 3.0 ports
2 × USB 2.0 ports
GPIO: Standard 40-pin GPIO header(fully backwards-compatible with previous boards)
Video & Sound:
2 × micro HDMI ports (up to 4Kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
Multimedia:
H.265 (4Kp60 decode)
H.264 (1080p60 decode, 1080p30 encode)
OpenGL ES, 3.0 graphics
SD card support: Micro SD card slot for loading operating system and data storage
Input power:
5V DC via USB-C connector (minimum 3A)
5V DC via GPIO header (minimum 3A)
Power over Ethernet (PoE)–enabled(requires separate PoE HAT)
Environment: Operating temperature 0–50ºC
Raspberry Pi Extension Board  The built-in over-current protection of 8 channel PWM port prevents the servo from damage.
Built-in single bus serial electric circuit can directly control the serial servo
Two-channel programmable LED lights, clearly show the working status of the system
Two-channel programmable buttons for more conveniently setting the system
Reserved IIC and UART ports, which can be compatible with various sensors
Servo  LX-824 three-port bus servo
Power Supply 11.1V 2500mAh 10C
Product Weight 2.35kg
Working Hours about 40min
Package List(Finished Parts)

1* robot frame
18* LDX-224HV three-port bus servo
1* Raspberry Pi(4B 2G/4B 4G)
1* Raspberry Pi extension board
2* LFD-01 servo
1*16G memory card
1* HD camera
1* 11.1 V 2500mAh lithium battery
1* voltage display
1* camera head frame
1* pack of accessories
1* power charger
1* Ultrasonic sensor
20* servo wire
1* screwdriver


HIW-SPIDERPI
