JD Humanoid Bundle

4.758,00 €
Tasse incluse
Quantità
Add to Compare
Add to Wishlist

World’s easiest and most powerful robot software designed for EZ-Robots. Scales from beginner to advanced users. This software introduces amazing features that will teach students the skills needed to succeed in the future!

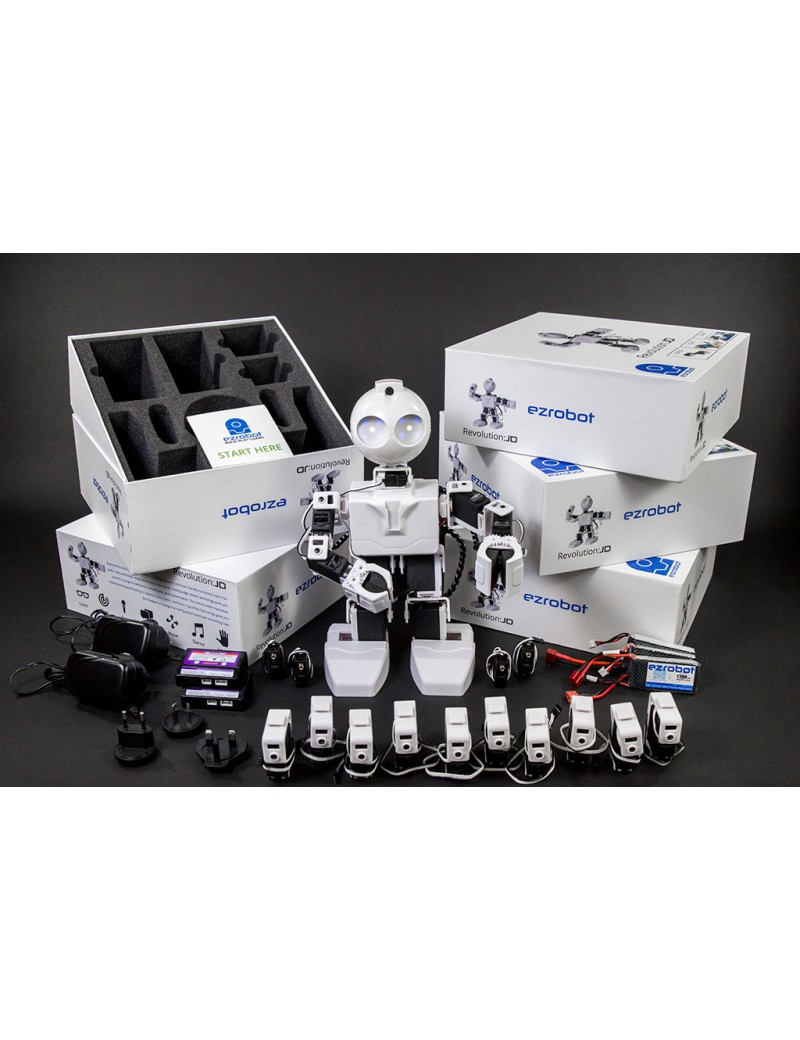

Bundle includes:

Powerful, versatile, easy-to-use and FUN.
JD is more than a humanoid robot toy, it's loaded with features and advanced robotic capabilities, making it an incredible platform for STEM education. Each Bundle contains 5 JD robots.

HEAVY  DUTY  DIGITAL  SERVO  MOTORS

Features
  • Operating speed: 0.22±0.01 sec/60° (7.4v)
  • Running current: 1400±30mA (7.4v)
  • Stall torque: 19±0.20kg·cm (7.4v)
  • Stall current: 3000±50mA (7.4v)
  • Running life: > 180,000 Turns
  • Temperature range: -10C to +50C
  • Operating voltage: 4.8V to 8.4v
  • Dual ball metal bearing
  • All metal gears
  • Connector wire length: 32cm
  • Futaba 3f (25 teeth) for driving spline/shaft
  • 6.2mm C1 standard spline (including teeth)

THE  EZ-B  IS  YOUR  ROBOT'S  HIGH  TECH  BRAIN

At the heart of over 20,000 robots worldwide is the EZ-B v4 Smart Robot Controller - a powerful and compact robot brain suitable for all skill levels, from beginner to advanced.  The stylish white plastic shell protects the speaker and electronics, with a speaker chamber for enhanced audio. For advanced users, the EZ-B may be removed from its casing and mounted directly in your custom robot.

​Features
  • Compact size (5cm x 5cm x 3cm)
  • Wi-Fi connectivity (ad-hoc/infrastructure/WEP/WPA/WPA2)
  • 220MHz 32-bit total processing with two 32-bit ARM Cortex processors
  • Small size (2.1" x 2.2")
  • Embedded web & telnet server
  • Energy efficient digital switching power supply
  • Re-settable fuse protection
  • Reverse polarity protection
  • Amplified speaker for streaming speech and music audio
  • 1 x real-time EZ-B v4 Camera port
  • 8 x 5 volt tolerant analog (ADC) ports
  • 24 x 5 volt tolerant digital ports (servos, PWM, and more)
  • Supports up to 73 servos (combining PWM and Dynamixel)
  • Dynamixel servo support
  • 3 x I²C ports
  • 3 x high speed UART ports
  • Battery and temperature monitor

SOFTWARE  THAT'S  EASY  TO  USE

If hardware is the heart of your EZ-Robot, then software is the soul.  ARC is an easy-to-use, versatile and powerful robotics software platform that scales with users as their programming skills grow.

Users can begin learning coding with “Drag and Drop” languages like RoboScratch and Blockly.  As their confidence and expertise improve, they can transition to text-based coding languages like Python, JavaScript, C++, C# and EZ-Script (a C derivative).

Easily add advanced robotics functionality such as camera tracking, speech recognition, Wii controllers, sensors, Artificial Intelligence (Microsoft's Cognitive Services) and more!

TEACH  YOUR  ROBOT  ANIMATIONS

Like a flip book, the Auto Positioner in ARC is used to animate EZ-Robot movements.  It's like magic!  Simply move your robot into positions to create an animation routine.  Play back actions based on triggers, such as when the robot sees your face or responds to a voice command.  It's easier than ever to teach your robot how to move, dance, climb stairs and more!

EZ-1100
