Introduction

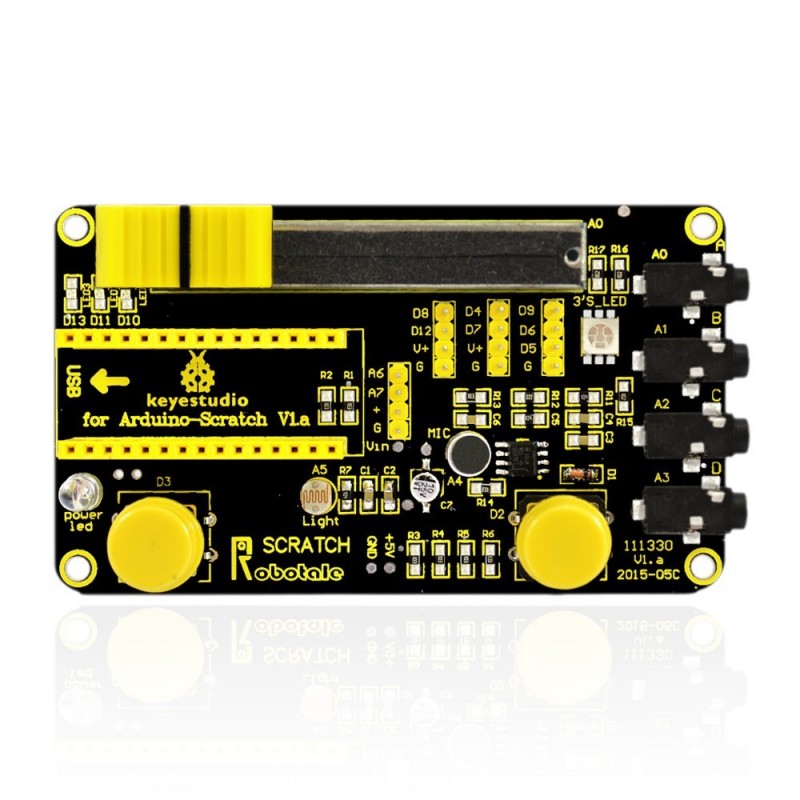

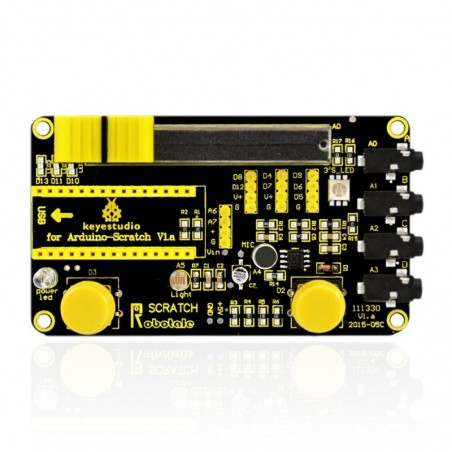

keyestudio Robotale Scratch is used with Arduino Nano. Using the Scratch programming language, you can easily create simple interactive programs with Arduino or create programs based on the input of Arduino from sensors. keyestudio Robotale Scratch incorporates a light sensor, sound sensor, a button and a slider, as well as 4 additional inputs that can sense electrical resistance via cables. Designed for educators and beginners, the keyestudio Robotale Scratch is a good way to get into the very basics of programming and reading sensors.

Specification

1. Use with Nano development board
2. Incorporate a light sensor, sound sensor, a button and a slider
3. S4A simple programming

User Instruction

1. Connect Nano development board to the computer, use Arduino IDE for firmware uploading.
2. Open S4A, click “Costumes”-Import to import new costumes.
3. Click “Script”, write the control script using blocks of the control group.
4. After completing the control script, click to run the script.
