Features:

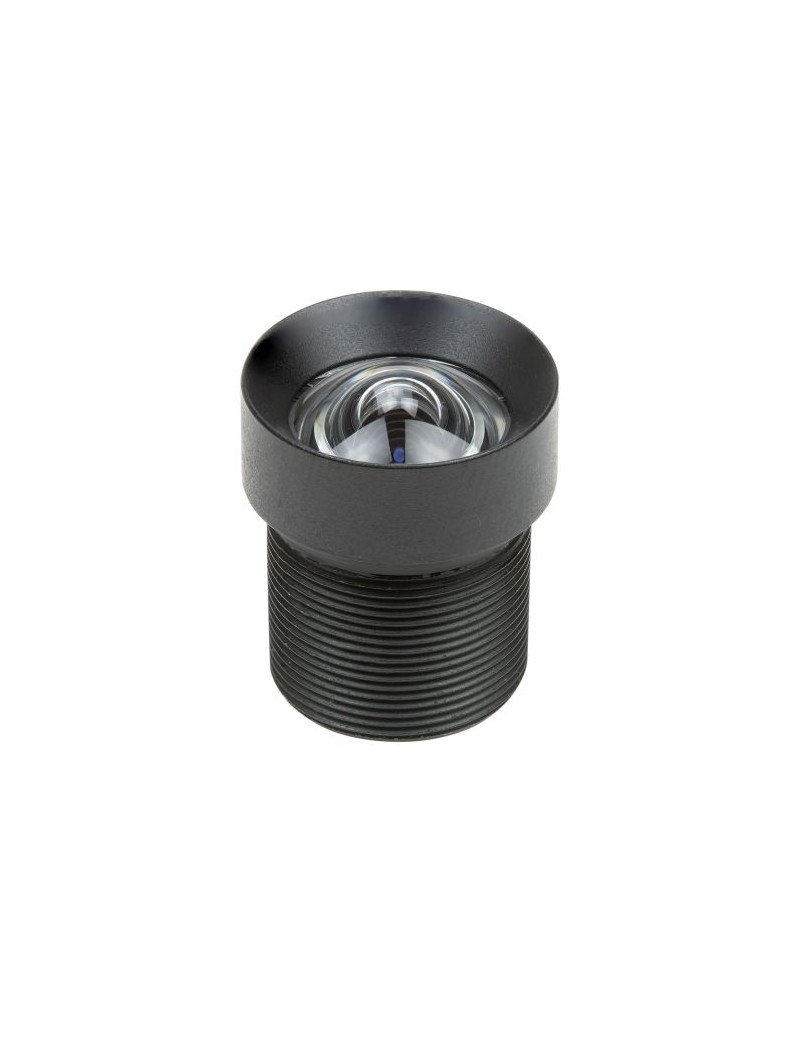

• Arducam Lens M25360H06S featuring low distortion
• Module number:M25360H06S
• Optical Format: 1/2.5”
• Distortion :3%
• Effective Focal Length: 3.6mm
• 35mm equivalent focal length: 38.92mm
• FOV on 1/2.5”sensor(D/H/V):120°/90°/75°
• FOV on 1/4”RPi Camera: 55°
• F/NO: 3.0
• Mount: M12
• Length Holder Height: 13mm
• Size: 14mm x16.3mm
• Weight:4g
• IR Sensitivity: sensitive to visible light, with 650nm IR filter

Package Includes:

• 1pcs Arducam 1/2.5" M12 Mount 3.6mm Focal Length Low Distortion Camera Lens M25360H06S

Note:

• Lens holder NOT included, you could find holder options following.
• Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.

Lens Holder Options:

• M12 Lens Holder Kit (SKU: LHK01)
• Height: 16.5mm; Hole Spacing: 20mm; Metal (SKU: U0756M16)
• Height: 14.5mm; Hole Spacing: 20mm; Metal (SKU: U0756M14)
• Height: 13.0mm; Hole Spacing: 20mm; Metal (SKU: U0756M13)
• Height: 12.0mm; Hole Spacing: 18mm; Plastic (SKU: LH003)
• Height: 10.0mm; Hole Spacing: 20mm; Metal (SKU: U0756M10)
• Height: 8.5mm; Hole Spacing: 18mm; Plastic (SKU: LH002)
• Height: 7.0mm; Hole Spacing: 20mm; Metal (SKU: U0756)
• Height: 6mm; Hole Spacing: 18mm; Plastic (SKU: LH001)

More M12 Lens Option:

• M12 Lens Kits (SKU: LK001).
• Low Distortion M12 Lens Kits (SKU: LK002).
• 3D Drawing

Additional Resources:

• Low Distortion Lens Kit Datasheet – Arducam M12 Lens Kit
• Arducam Documentation – Arducam M12 Lens Kit
• Video – Arducam M12 Lens Kit
• Blog – Arducam M12 Lens Kit
