Features:

• Optical Format: 1/3.2’’, Effective Focal Length: 0.76mm
• 35mm equivalent focal length: 8.2mm
• FOV on 1/3.2” sensor(D/H/V): 222°/222°/222°HFOV on 1/4” RPi Camera: 220°, F/NO: 2.1
• Mount:M12, Length Holder Height: 7mm
• Size: 16mm x 13.5mm, Weight: 5g
• IR Sensitivity: sensitive to visible light, with 650nm IR filter

Package Includes:

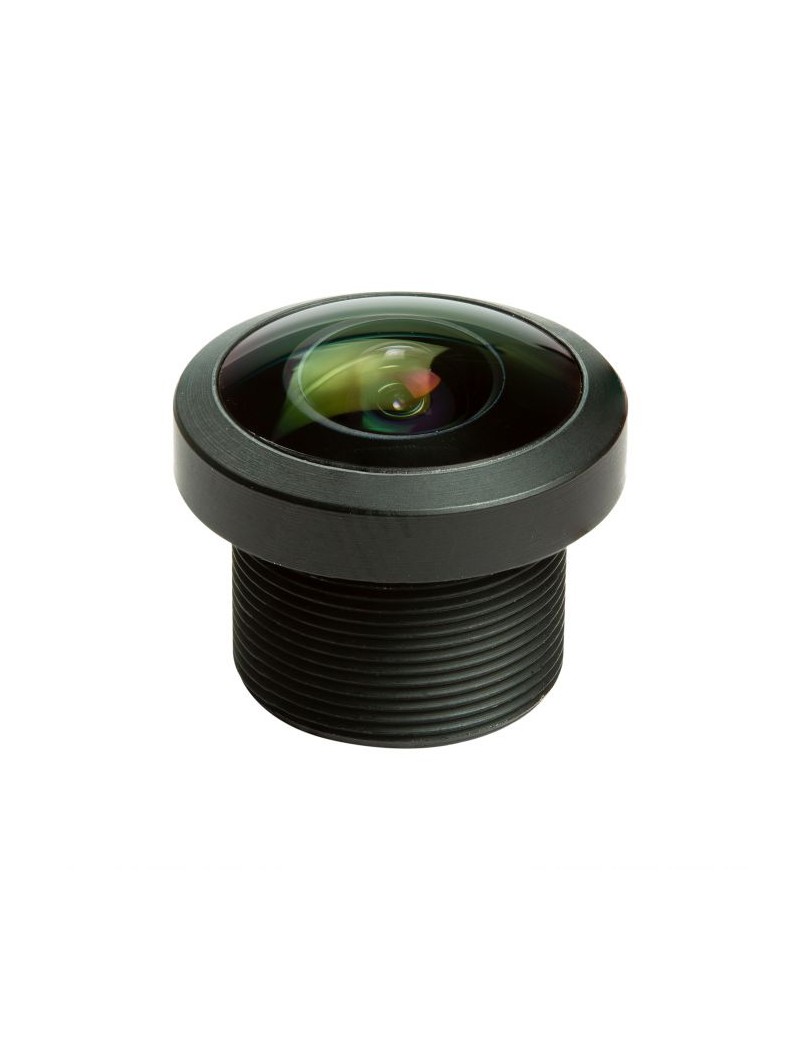

• 1pcs Arducam M12 Mount 0.76mm Focal Length Camera Lens M32076M20

Note:

• Lens holder NOT included, you could find holder options following.
• Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.

Lens Holder Options:

• M12 Lens Holder Kit (SKU: LHK01)
• Height: 10.0mm; Hole Spacing: 20mm; Metal (SKU: U0756M10)
• Height: 8.5mm; Hole Spacing: 18mm; Plastic (SKU: LH002)
• Height: 7.0mm; Hole Spacing: 20mm; Metal (SKU: U0756)
• Height: 6mm; Hole Spacing: 18mm; Plastic (SKU: LH001)

More M12 Lens Option:

• M12 Lens Kits (SKU: LK001).
• Low Distortion M12 Lens Kits (SKU: LK002).

Additional Resources:

• M12 Lens Kit Datasheet – Arducam M12 Lens Kit
• Arducam Documentation – Arducam M12 Lens Kit
• Video – Arducam M12 Lens Kit
• Blog – Arducam M12 Lens Kit
