Boson Starter Kit for micro: bit
Write your review
108,58 €
Tasse incluse
INTRODUCTION
micro: bit is a pocket-sized microcontroller designed for kids and beginners to learn coding and electronics, letting them easily bring ideas into DIY digital games, interactive projects, and robotics. Boson Kit has been awarded Five Stars in the 2018 Teach Primary Resource Awards.
Micro:bit
To explore even more possibilities with micro:bit, we have now combined it with DFRobot’s Boson modules, a set of modularized electronic blocks, suitable for every child to start their hands-on journeys of creation.

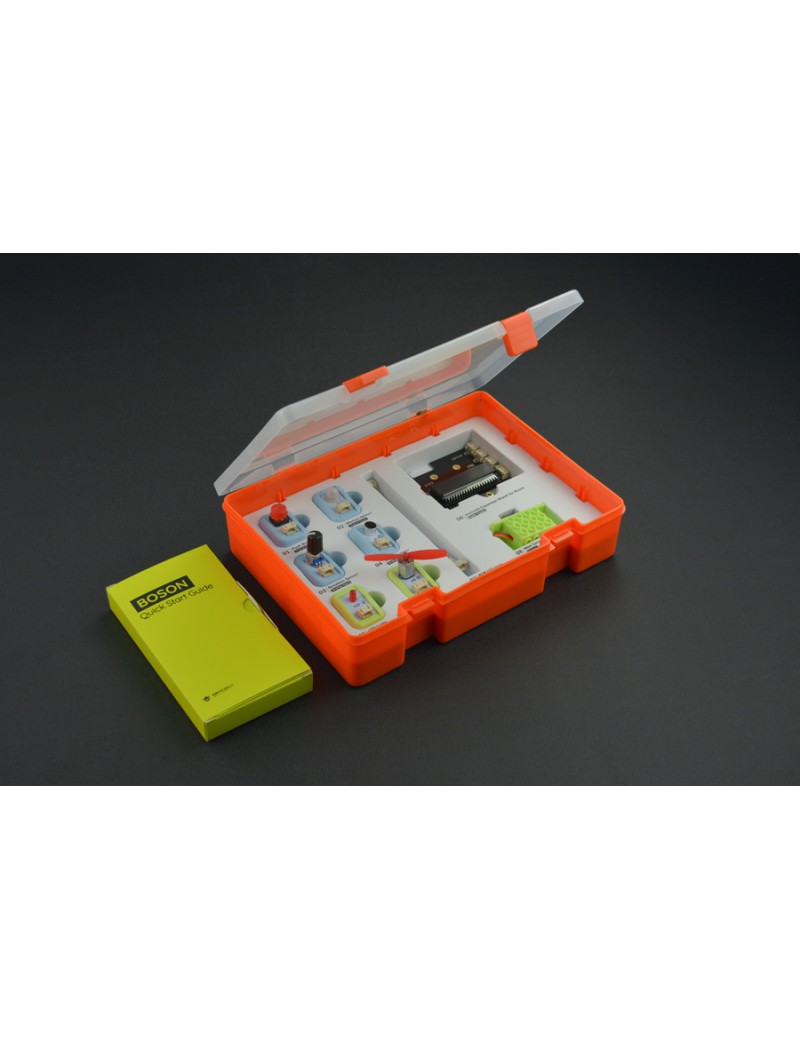

DFRobot’s Boson starter kit for micro:bit includes 8 well-selected modules, covering the most popular digital and analog sensors and actuators, supporting sound, light, and motion interaction. Modules communicate to micro: bit via 3-Pin interface and are perfectly compatible with Microsoft MakeCode JavaScript online Editor and Python Editor.
Click the link to learn more about DFRobot’s Boson module
The micro:bit expansion board for Boson is used to hook up Boson modules to micro:bit. The expansion board comes with an edge connector, 6 fool-proof 3-Pin sockets, a Gravity: HuskyLens interface, and an I2C interface. Moreover, to ensure a steady current supply for the motor and servo, the expansion board can be powered externally through the USB power port.
Note: USB power port CANNOT be used to upload program.
To help you easily understand the usage of each module, the boson kit for micro:bit is provided with a quick start guide, including 4 basic projects with wiring and sample codes. Walkthrough the guide and create your own invention!
DFRobot Boson Starter Kit для BBC micro:bit
Note: micro:bit is NOT included in the kit. You will need to purchase separately.
Project 1: Smart Fan Control System with Micro:bit
In this article, we will show you how to create a smart fan control system with BBC micro:bit.
Hardware components:
FEATURES
- Cultivates kid's programming ability
- Suitable for age 10+
- Supports sound, light, and motion interaction
- Comes with 8 modules, 4 quick start project cards
- 12-project tutorial from beginning to advance
SPECIFICATION
- Module Input/Output Voltage: 3.3V
- Maximum Current: 500mA
- MicroUSB Power Port Voltage：5V
- Working temperature: 0-60 ℃
- package size: 250*190*57 mm/ 9.84 * 7.5 *2.24 inches
- Weight: 492g
DOCUMENTS
- English Tutorial (code with Mindplus)
- English Tutorial (code with Mindplus) last two projects updates
- English Tutorial (code with Makecode)
- New Project Cards
- Coding Editor for micro:bit MakeCode
- Mindplus offline coding editor (based on scratch 3.0, both blocks and text coding)
- micro:bit Educational Foundation
SHIPPING LIST
- micro:bit expansion board for Boson kit x 1
- Red Push Button x 1
- Red LED Light x 1
- Rotation sensor x 1
- Sound Sensor x 1
- Motion sensor x 1
- Mini Fan Module x 1
- Mini Servo x 1
- RGB LED strip x 1
- Micro USB Cable x 1
- 3-Pin Cable (Long) x 1
- 3-Pin Cable (Medium) x 1
- 3-Pin Cable (Short) x 1
- Quick Start guide x 1
DF-TOY0086
