Get more from the BBC micro:bit with Kitronik's incredible Inventor's kit! The simple way to learn about creating circuits and code.

Please Note: BBC micro:bit is NOT included.

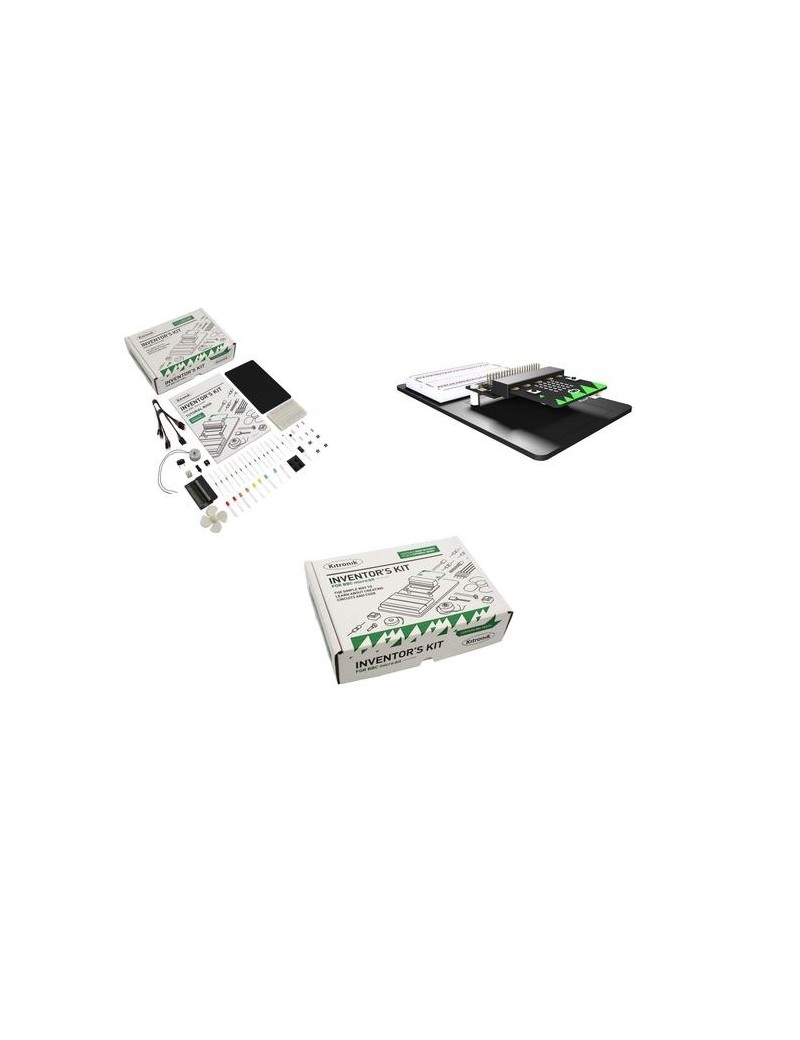

The Kitronik Inventor's Kit for the BBC micro:bit is a great way to get started with programming and hardware interaction with the BBC micro:bit. This Inventor's Kit contains everything you need to complete 10 experiments including using LEDs, motors, LDRs and capacitors.

To get you off to a flying start, Kitronik have included an easy to follow tutorial book which guides you through everything you will need to know about programming the BBC micro:bit. You don't need any experience with programming as the tutorial book will guide you every step of the way. You'll be programming and creating circuits in no time!

The Kitronik Inventor's Kit for the BBC micro:bit provides a fantastic way of learning how to construct and control electronic circuits. The BBC micro:bit has a selection of pins that are located on the bottom edge of its PCB (see datasheet below for details). By using the specially designed Edge Connector Board for the BBC micro:bit in conjunction with the breadboard (see below), it is easy to use these pins to connect additional components to the BBC micro:bit.

No soldering is required and you can build your first circuit in minutes!

Note:

• This kit requires assembly.

Features:

• No soldering required - build your first circuit in minutes!
• Make 10 experiments included in the provided step-by-step tutorial book.
• All parts are included to conduct the 10 experiments (listed below).
• Breaks out 21 accessible pins from the BBC micro:bit using the Edge Connector Board for the BBC micro:bit (included).
• Small Prototype Breadboard included for fast prototyping.

All of the experiments included in this booklet (listed below) are based on the Microsoft BlockEditor and Microsoft TouchDevelop editor software.

Experiments included in the tutorial book:

• Experiment One: Say 'Hello' to the BBC micro:bit.
• Experiment Two: Using an LDR & analog inputs.
• Experiment Three: Dimming an LED using a potentiometer.
• Experiment Four: Using a transistor to drive a motor.
• Experiment Five: Using the accelerometer to control motor speed.
• Experiment Six: Setting the tone with a piezo buzzer.
• Experiment Seven: Wind power.
• Experiment Eight: Making a game using the compass.
• Experiment Nine: Capacitor charge circuit.
• Experiment Ten: Using an RGB LED.

Contents:

• 1 x Perspex Mounting Plate.
• 1 x Potentiometer & Finger Adjust Spindle.
• 2 x Plastic Spacer 10mm.
• 1 x Sticky Fixer for Battery Pack.
• 1 x Small Prototype Breadboard.
• 1 x Terminal Connector.
• 4 x Push Switch.
• 1 x Motor.
• 1 x Transistor.
• 2 x Red 5mm LED.
• 2 x Orange 5mm LED.
• 2 x Yellow 5mm LED.
• 2 x Green 5mm LED.
• 1 x RGB 5mm LED.
• 1 x Fan Blade.
• 5 x 2.2KΩ Resistor.
• 5 x 10KΩ Resistor.
• 5 x 47Ω Resistor.
• 1 x Edge Connector Breakout Board for BBC micro:bit.
• 1 x Miniature LDR.
• 10 x Male to Male Jumper Wires.
• 10 x Male to Female Jumper Wires.
• 4 x Self-adhesive Rubber Feet.
• 1 x 470uF Electrolytic Capacitor.
• 1 x Piezo Element Buzzer.
• 4 x Pan Head M3 Machine Screw.

Requires:

• 1 x BBC micro:bit.
• 1 x Phillips Screwdriver.
• 1 x Terminal Block Screwdriver.
• 1 x Micro USB Cable.
