Introduction

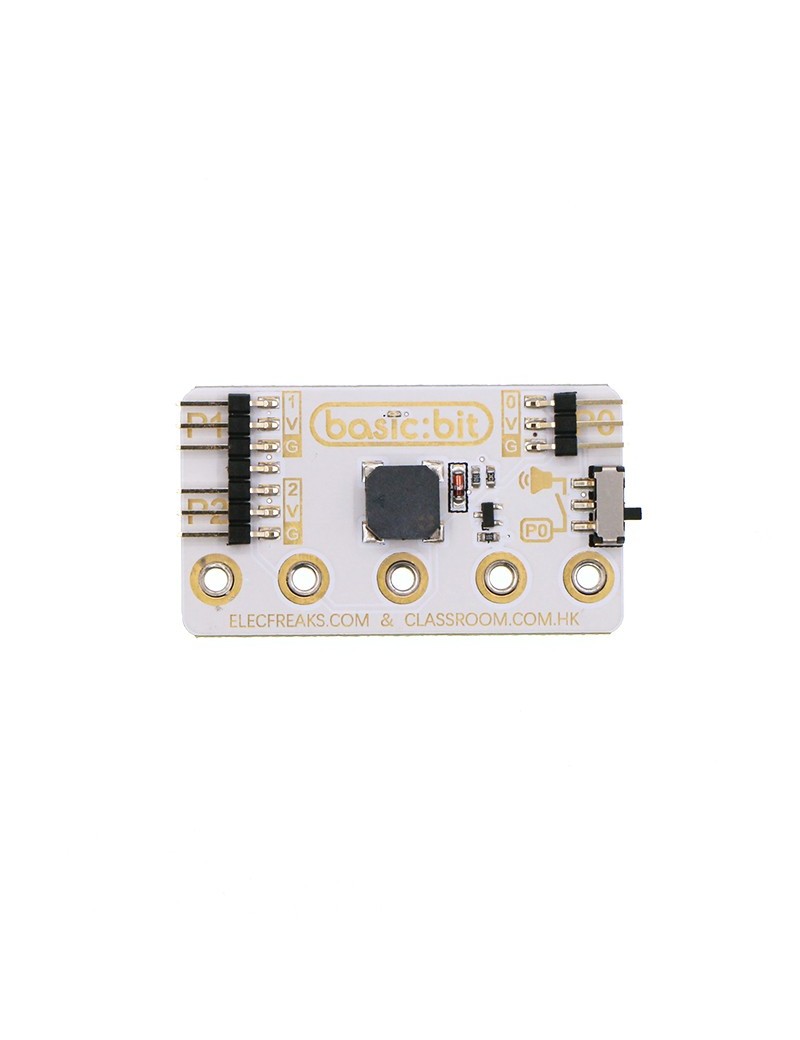

Basic:bit is a basic breakout board of micro:bit. It carries a buzzer and three groups of GVS pins(P0/P1/P2) on board. Each group of GVS pins separately leads out the IO port, 3V port and GND port on micro:bit. Small size with simple structure, it is quite enough for you to complete 98% micro:bit projects.

Features

• Small size with smart design, it is a perfect match for your micro:bit.
• Easily connected to micro:bit and lead out its power and IO ports with screws only.
• Lead out P0/P1/P2/3V/GND port on micro:bit board.
• Allow you to complete 98% micro:bit projects with three IO ports.
• The switch on board controls the ON/OFF status of buzzer.

Quick Start

Material Needed:

• 1 x micro:bit

• 1 x basic:bit

• 1 x Octopus LED Module

• 1 x USB Cable

• 1 x GVS wire（Or Jumper Wire)

Assembly

Fix your basic:bit onto micro:bit with screws and nuts.
Connect Octopus LED module to P1 port on your basic:bit.
Then slide the switch to the speaker end.

Example Code

You can see the whole program via the link below:
https://makecode.microbit.org/_TWuPw3eE8eEE
