Module size:
1 Road: 50 * 25 * 18.5MM1 Channel: 50 * 25 * 18.5mm
2 Channel: 50 * 41 * 17.5mm
4 Channel: 75 * 51 * 16.5mm

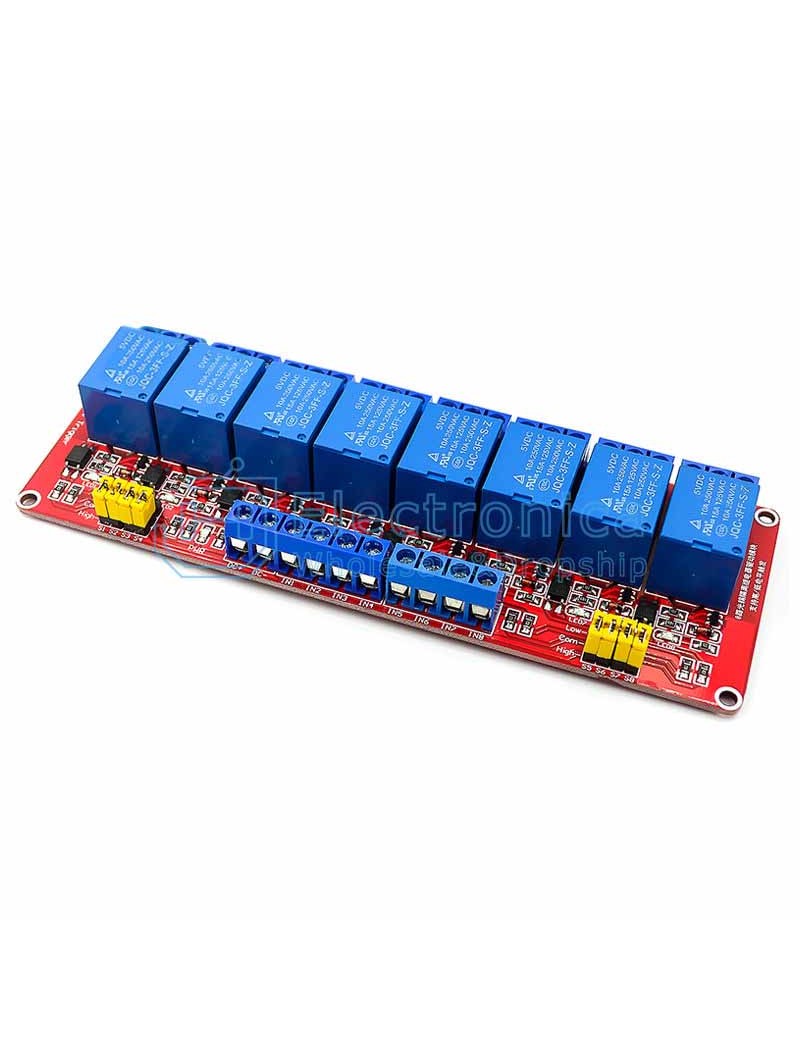

8 Channel: 142 * 52 * 18mm
Module interface:
1. DC +: the positive supply (voltage relay according to the requirements)
2. DC-: negative one
3. IN: can be high or low level relay control
Relay output:
1. NO: normally open relay interfaces, floating suction before closing the relay, after the short circuit is absorbed and COM
2. COM: Common Interface Relays
3. NC: normally closed relay interfaces, COM and close the front relay short circuit, the pull vacant
High and low end trigger selection:
1. LOW when the shorting jumper is level-triggered;
2. to trigger high and high jumper shorted.
