The Light-Duty (LD) series of Glideforce linear actuators by Concentric International (formerly Iowa Export-Import) are 12V DC gearmotors that use a worm drive to move a shaft back and forth along its length. The worm drive ensures that the shaft will hold its position even when unpowered and subjected to static loads up to 250 kgf [550 lbs or 2500 N]. Two limit switches safely stop the motor at either end of its range, while integrated diodes allow it to reverse direction after reaching a limit point if the supplied voltage is reversed. The actuators have an all-aluminum frame and extension tube, and the entire case is sealed to protect against dust and water (rated IP65).

Details for item #2327

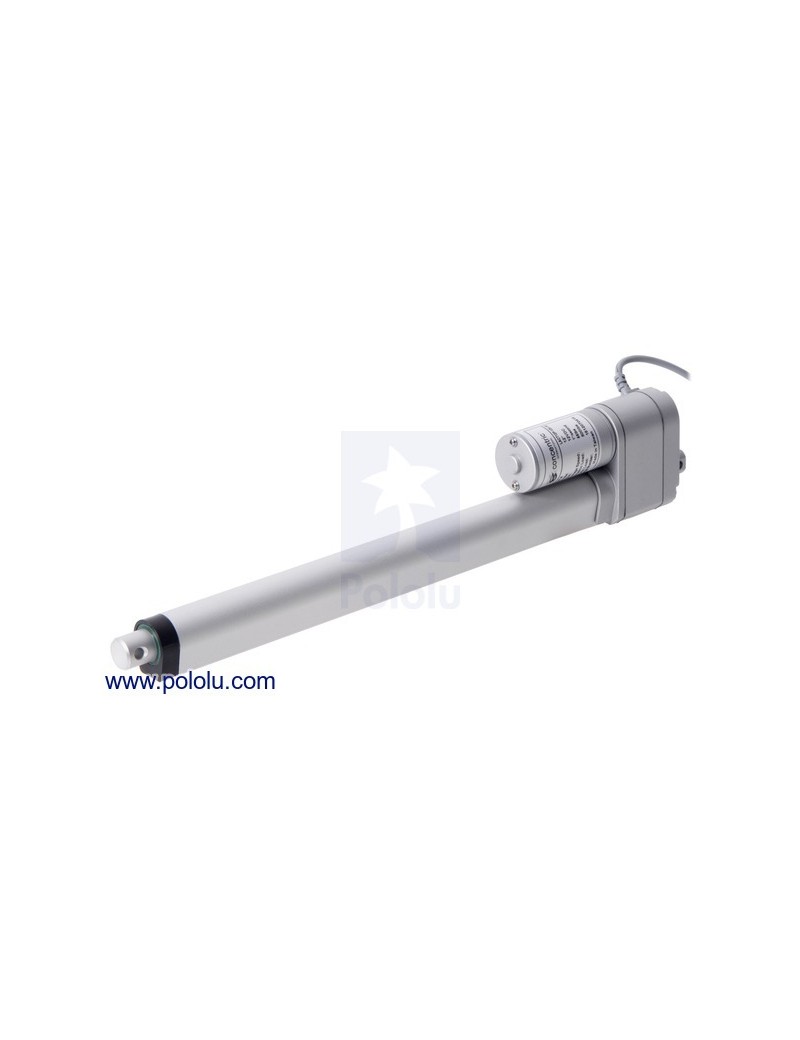

Glideforce LACT12P-12V-x Light-Duty Linear Actuator with Feedback: 12″ Stroke.

• Nominal stroke length: 12″ [30.5 cm]
• Actual stroke length: 11.81″ [30.0 cm]
• Retracted length: 17.72″ [45.0 cm] (from mounting hole to mounting hole)
• Extended length: 29.53″ [75.0 cm] (from mounting hole to mounting hole)
• Weight: 51 oz [1.46 kg]
• Gear ratio: 5:1
• Rated dynamic load capacity: 34 lbs [15 kgf or 150 N]
• Speed at 12 V, no load: 1.73 in/s [43.9 mm/s]
• Speed at 12 V, max load: 1.44 in/s [36.5 mm/s]
• Feedback potentiometer

LD series features and specifications

The following specifications apply to all Glideforce LD series linear actuators:

• Nominal operating voltage: 12 V
• Maximum static load: 550 lbs [250 kgf or 2500 N]
• Standard preset limit switches at both ends of stroke
• All aluminum frame and extension tube
• Noise level: ≤ 70 dB
• Mounting hole diameter: 1/4″ [6.4 mm]
• Working temperature: -13°F [-25°C] to 149°F [65°C]
• IP rating: IP65 (total dust protection, water resistant)

For more details, see the LD series datasheet (637k pdf).

Dimensions

Diagrams of the linear actuators are shown below. The versions that include potentiometers have a larger gearbox, so their overall size and weight is larger. For more detailed information, including the retracted and extended lengths of each version, see the datasheet.

Dimensions of Glideforce LD linear actuators with feedback. Units are mm.

Dimensions of Glideforce LD linear actuators without feedback. Units are mm.

Glideforce LACT4 light-duty linear actuator (4″ stroke) with shaft fully extended.

Using the actuator

To test-drive the actuator, simply connect a power source of up to 12 V to the motor leads. Reversing the applied voltage will reverse the direction of motion. A motor controller or motor driver is required for electronic speed and direction control. We recommend our Jrk G2 21v3 or Jrk G2 24v13 motor controllers for use with the feedback actuators (see below for more information on this) and the Pololu Simple Motor Controller 18v7 for controlling the actuators without feedback, though many of our other motor controllers and motor drivers are capable of powering this actuator.

These actuators have a stall current of 7 A at 12 V, but they will, on average, draw far less than this when used within their load ratings. They draw around 1 A with no load and can exceed 3 A at their maximum rated dynamic load, so we have found they generally work well with our lower-power jrk 21v3 motor controller with feedback (see the bottom of this page for more information using this controller for closed-loop linear actuator position control). Note, however, that the actuators can briefly draw close to their full stall current when abruptly started or on a sudden change of direction. Such current spikes can be dampened if you take steps to limit the acceleration of the actuator (many of our motor controllers offer optional acceleration limiting).

Actuator leads

Actuators with feedback have a 24″ (60 cm) cable that is terminated with special female connectors as shown in the left picture below, one for the three potentiometer leads and another for the two power leads. These connectors match male versions on the extension cable for LD linear actuators. Actuator versions without feedback have a 36″ (90 cm) cable with two unterminated, stripped power leads as shown in the right picture below. Linear actuators without feedback do not have cables that are compatible with the linear actuator extension cable.

Connectors that terminate the cable ends of Glideforce Ledium-Duty (LD) linear actuators with feedback.

Unterminated wire ends for Glideforce Light-Duty (LD) linear actuators without feedback.

Using a Jrk G2 motor controller with a linear actuator with feedback

Connecting a light-duty linear actuator with feedback to a Jrk 21v3 motor controller.
