9.7:1 Metal Gearmotor 25Dx48L mm

36,59 €
Tasse incluse

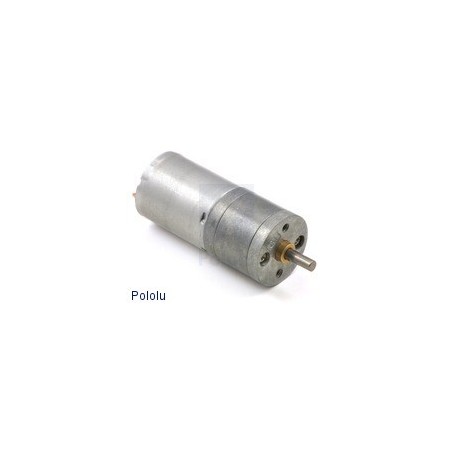

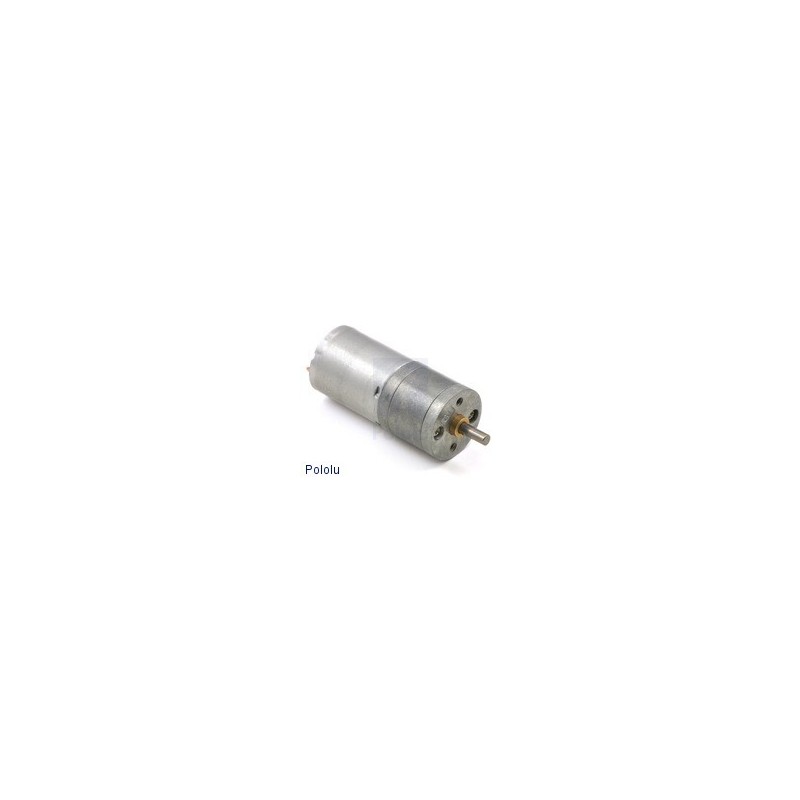

9.7:1 Metal Gearmotor 25Dx48L mm

Quantità
Add to Compare
Add to Wishlist

"

This brushed DC gearmotor is available in high- and low-power versions in a number of gear ratios. Integrated quadrature encoders are also available on certain gear ratios, including just the motor portion by itself (i.e. no gearbox).

Gear RatioNo-Load
Speed
@ 6 V		Stall Torque
@ 6 V		Stall Current
@ 6 V

With Encoder

Without Encoder
1:1 9800 RPM 2 oz-in 6 A motor without gearbox
5600 RPM 1 oz-in 2.2 A motor without gearbox
4.4:1 2220 RPM 8 oz-in 6 A 25Dx48L mm HP 25Dx48L mm HP
1280 RPM 5 oz-in 2.2 A 25Dx48L mm
9.7:1 1010 RPM 17 oz-in 6 A 25Dx48L mm HP 25Dx48L mm HP
580 RPM 11 oz-in 2.2 A 25Dx48L mm 25Dx48L mm
20.4:1 480 RPM 36 oz-in 6 A 25Dx50L mm HP
275 RPM 24 oz-in 2.2 A 25Dx50L mm
34:1 285 RPM 60 oz-in 6 A 25Dx52L mm HP 25Dx52L mm HP
165 RPM 40 oz-in 2.2 A 25Dx52L mm 25Dx52L mm
47:1 210 RPM 80 oz-in 6 A 25Dx52L mm HP 25Dx52L mm HP
120 RPM 50 oz-in 2.2 A 25Dx52L mm 25Dx52L mm
75:1 130 RPM 130 oz-in 6 A 25Dx54L mm HP 25Dx54L mm HP
75 RPM 85 oz-in 2.2 A 25Dx54L mm 25Dx54L mm
99:1 100 RPM 160 oz-in 6 A 25Dx54L mm HP 25Dx54L mm HP
57 RPM 110 oz-in 2.2 A 25Dx54L mm
172:1 57 RPM 260 oz-in 6 A 25Dx56L mm HP
33 RPM 170 oz-in 2.2 A 25Dx56L mm 25Dx56L mm
227:1 25 RPM 220 oz-in 2.2 A 25Dx56L mm
378:1 15 RPM 250 oz-in 2.2 A 25Dx58L mm
499:1 12 RPM 300 oz-in 2.2 A 25Dx58L mm

Note: At some of the higher gear ratios, these motors can generate enough torque to damage themselves. Any torque greater than about 250 oz-in (18 kg-cm) is likely to damage the gearbox, so we recommend that you avoid stalling the 172:1 HP, 227:1, 378:1, and 499:1 versions of these motors at 6 V.

These motors are intended for use at 6 V. In general, these kinds of motors can run at voltages above and below this nominal voltage, so they should comfortably operate in the 3 – 9 V range, though they can begin rotating at voltages as low as 1 V. Higher voltages could start negatively affecting the life of the motor.

Details for item #1582

Exact gear ratio: 22×22×2412×10×10=9.68:1

Gearmotor accessories

The face plate has two mounting holes threaded for M3 screws. You can use our custom-designed 25D mm metal gearmotor bracket (shown in the picture below) to mount the gearmotor to your project via these mounting holes and the screws that come with the bracket.

Pololu 25D mm metal gearmotor bracket pair.
Pololu 25D mm gearmotor with bracket.

"
