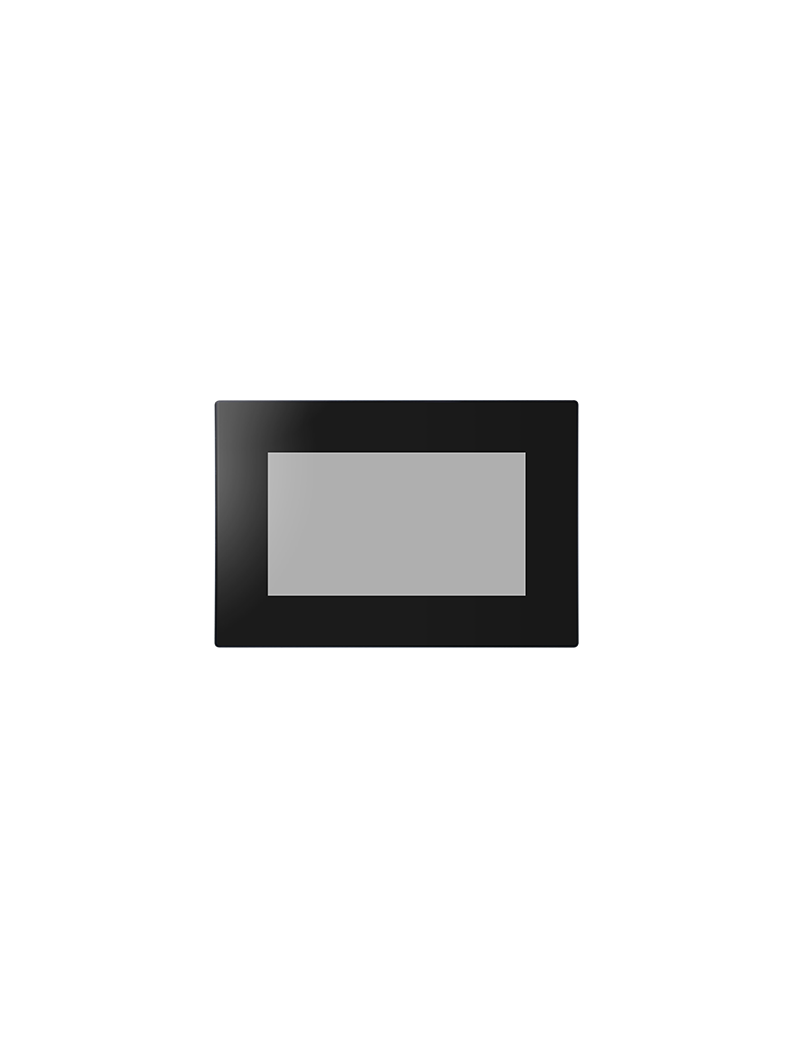

NX8048P070-011R-Y

140,30 €
Tasse incluse

NX8048P070-011R-Y

Quantità
Add to Compare
Add to Wishlist

Nextion is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

Package includes: Nextion NX 8048P070-011R-Y HMI Display*1, XH2.54 4P wire*1, power supply test board*1.

Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.




Nextion Models

Nextion Type Intelligent Series
Nextion Models NX8048P070-011R-Y (7.0 inch resistive touchscreen with enclosure)

Specifications

Data Description
Color 65K 65536 colors 16 bit 565, 5R-6G-5B
Layout size 218.1mm(L)×150mm(W)×22.5mm(H) NX8048P070-011R-Y
Active Area (A.A.) 164.90mm(L)×100.00mm(W)
Visual Area (V.A.) 154.08mm(L)×85.92mm(W)
Resolution 800×480 pixel Also can be set as 480×800
Touch type Resistive
Touches > 1 million
Backlight LED
Backlight lifetime (Average) >30,000 Hours
Brightness  300nit 0% to 100%, the interval of adjustment is 1%
Weight 445g

Electronic Characteristics

Test Conditions Min Typical Max Unit
Operating Voltage 4.75 5 6.5 V
Operating Current VCC=+5V, Brightness is 100% – 530 750 mA
SLEEP Mode – 170 – mA
Power supply recommend：5V, 1.0A, DC

Working Environment & Reliability Parameter

Test Conditions Min Typical Max Unit
Working Temperature 5V, Humidity 60% -20 25 70 °C
Storage Temperature -30 25 85 °C
Working Humidity 25°C 10% 60% 90% RH

Interfaces Performance

Test Conditions Min Typical Max Unit
Serial Port Baudrate Standard 2400 9600 921600 bps
Output High Voltage (TXD) IOH=1mA 3.0 5.0 Vin V
Output Low Voltage(TXD) IOL=-1mA 0.1 0.2 V
Input High Voltage(RXD) 3.0 5.0 Vin V
Input Low Voltage(RXD) -0.7 0.0 1.3 V
Serial Port Mode 3.3V/5.0V TTL
Serial Port 4Pin_2.54mm
USB interface NO
SD card socket Yes (FAT32 format), support maximum 32G Micro SD Card
* microSD card socket is exclusively used to upgrade Nextion firmware /HMI design
Extended IO 8 Digital extended GPIO
IO0-IO7 support input, output and component binding event
IO6-IO7 support PWM
RTC built-in RTC support (Battery type: CR1220)

Vin: the input voltage of power supply

Memory Features

Memory Type Test Conditions Min Typical Max Unit
FLASH Memory Store fonts and images 120 MB
User Storage EEPROM 1024 BYTE
RAM Memory Store variables 512 KB
Instruction Buffer Instruction Buffer 4096 BYTE

Audio Features

Speaker Parameter Min Typical Max Unit
Power 16Ω 0.5W 0.5 W
Size Φ40*5.2H mm

Product Dimensions

NX8048P070-011R-Y_Dimension

Product Certificates

CE-EMC, RoHS

Product Type Nextion HMI Display
Nextion Series Intelligent Series
Display Size 7.0"
Display Resolution 800*480
Touch Panel Type RTP
MCU ARM 200MHz
Flash 128MB
RAM 512KB
EEPROM 1024Byte
GPIOs Yes
RTC Yes
Enclosure Yes
Serial Connector XH2.54 4P
Certified Compliance CE, RoHS
Operating Temperature -20°C~70°C
Operating Humidity 10% - 90% RH non-condensing
Dimension 218.1*150*22.5mm
