Orbbec Astra

344,78 €
Tasse incluse

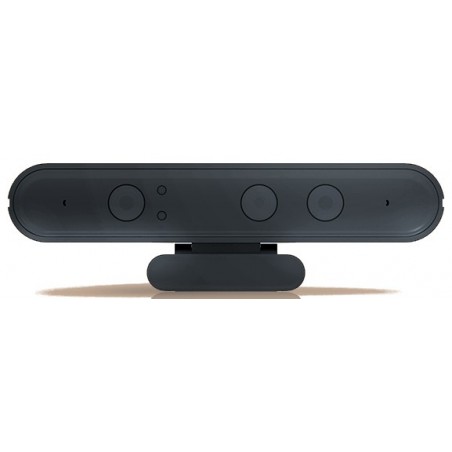

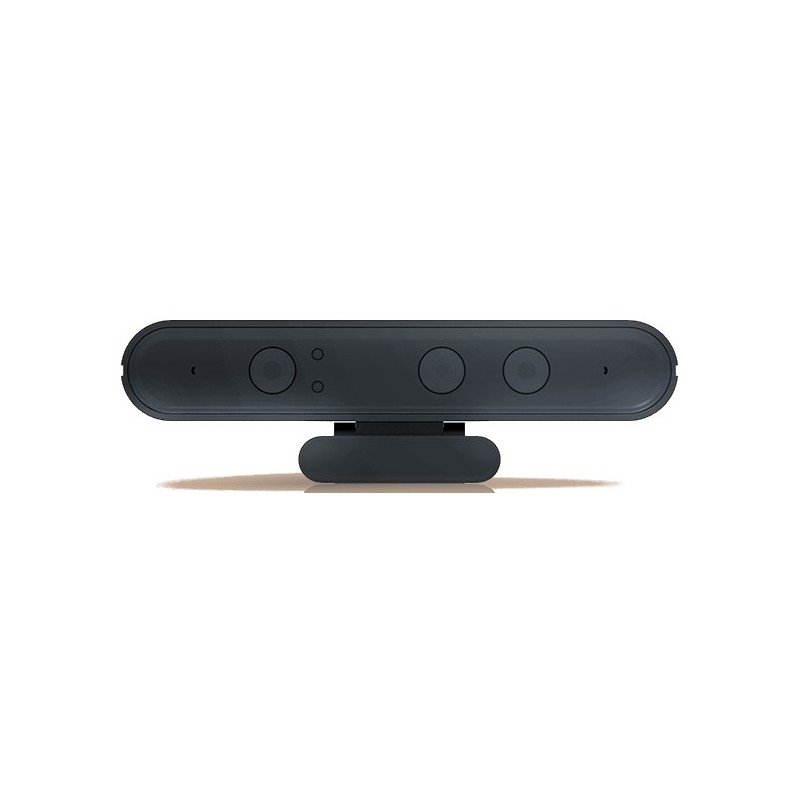

Orbbec Astra

Quantità
Add to Compare
Add to Wishlist

Product Description

Orbbec Astra shares the same appearance, size, and weight as Orbbec Astra S. The difference is that Astra is optimized for long-range use cases, which makes it great for interactive systems, entertainment, retail, and robotics. Astra was developed to be highly compatible with existing OpenNI applications—making both the Astra and Astra S ideal cameras for pre-existing apps that were built with OpenNI. Astra has a 0.6- to 8-meter tracking range. You can see full technical specs for Astra below.

Astra now comes in a bundle with the powerful gestural Interaction SDK by Gestoos. Gestoos let’s you develop and enhance applications with gestural interaction in C++, Java and Processing.

Shipping & Delivery

Astra S will be shipped within five business days.
Product Dimensions: 165 x 30 x 40 mm (without packaging)
Shipping Weight: 0.8 pounds (without packaging)

Technical Specs:

Optimized Range: 0.6 - 8.0m (Optimal Range: 0.6 - 5.0m)
Depth Resolution: VGA(640 x 480 @ 30 FPS)|QVGA(320 x 240 @ 30 FPS)
RGB Resolution: HD(1280 x 960 @ 7 FPS)|VGA(640 x 480 @ 30 FPS)|QVGA(320 x 240 @ 30 FPS)
Power: < 2.4 W (USB 2.0)
Data Transfer: USB 2.0
Operation Temperature: 0 - 40°C

Orbbec Products Selection Guide

Note: The purpose of this guide is to give our valuable customers some hints in selecting our sensors. You are NOT necessarily strictly follow this guide.

Features:

  • General purpose 3D camera;
  • Longer sensing range;
  • Alternative for Xtion/Kinect/Carmine 1.08
  • Fully compatible with OpenNI

Recommended Applications:

  • Interactive Systems;
  • Gaming;
  • Retail (people counting/shelf analysis);
  • Robotics (room navigation);
  • 3D Scanning (room size);
  • VR/AR (Object tracking);

Features:

  • Initially designed for short range 3D scanning;
  • Shorter sensing range;
  • Low IR gain mode - shorter range (See Download tab for tools);
  • High IR gain mode - longer range (See Download tab for tools);
  • SXGA Depth mode - 1280 x 1024 depth map at 5 FPS (See Download tab for tools; Windows only; No interpolation)
  • Alternative for Carmine 1.09 and other OpenNI compatible 3D scanner;
  • Fully compatible with OpenNI

Recommended Applications:

  • 3D Scanning (object/body scanning);
  • Robotics;
  • Short Range Interactive Systems;

Features:

  • Same depth performance as Astra;
  • Equipped with an UVC RGB camera that can stream 720P RGB at 30 FPS;
  • UVC camera can be operated via any program designed for webcams;
  • Only Depth compatible with OpenNI; RGB can be streamed without SDK; (See Download tab for sample code)

Recommended Applications:

  • Similar to Astra;
  • Applications need to show high quality RGB video stream;

Features:

  • Same depth performance as Astra S;
  • Equipped with an UVC RGB camera that can stream 720P RGB at 30 FPS;
  • UVC camera can be operated via any program designed for webcams;
  • Only Depth compatible with OpenNI; RGB can be streamed without SDK; (See Download tab for sample code)

Recommended Applications:

  • Similar to Astra S;
  • Applications need to show high quality RGB video stream;

Technical Specs:

Optimized Range: 0.6 - 8.0m (Optimized Range: 0.6 - 5.0m)
Depth Resolution: VGA(640 x 480 @ 30 FPS)|QVGA(320 x 240 @ 30 FPS)
RGB Resolution: HD(1280 x 720 @ 30 FPS)|VGA(640 x 480 @ 30 FPS)|QVGA(320 x 240 @ 30 FPS)
Power: < 2.4 W (USB 2.0)
Data Transfer: USB 2.0
Operation Temperature: 0 - 40°C



DOWNLOADS
https://3dclub.orbbec3d.com/t/download-thread/622

ORB-Astra2015R2
