FEMTO W
Write your review
677,10 €
Tasse incluse

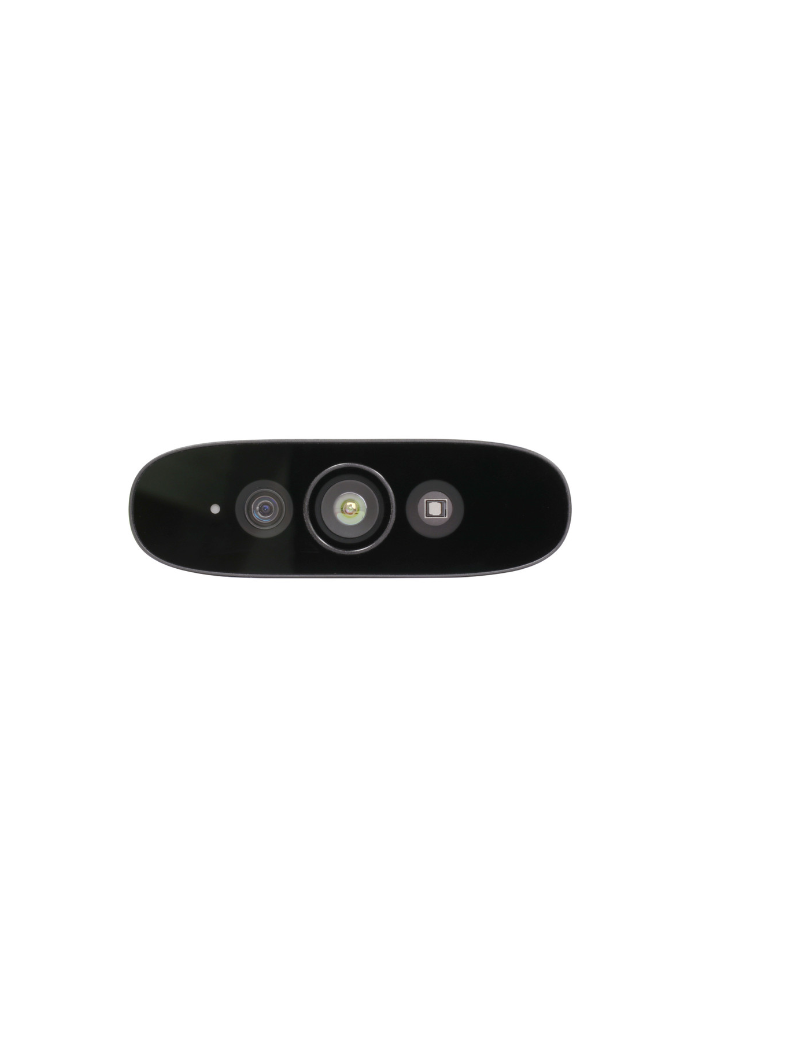

Femto W is Orbbec’s new TOF (Time of Flight). Femto W has the widest depth field of view (H90, V74) and highest color field of view (H98.6, V64.2), the Femto W delivers high accuracy identification at closer range (0.2 to 2.5 meters). As well as being able to turn captured images into 3D images, it can also measure at a speed of 30 frames per second, allowing it to track the movement of objects three-dimensionally.
Technical Specs
| Product Name | Femto W |
|---|---|
| Range | 0.25-2.5m |
| Dimensions | 108mm x 91mm x 28.5mm |
| Depth Resolution Framerate | 640x480@30FPS |
| RGB Resolution Framerate | Up to 3840x2160@30FPS |
| Depth FOV | H90°, V74, D103° +/- 5° |
| RGB FOV | H100°, V65.5°, D107.1° +/- 5° |
| Data Transfer | USB 3.0 Type-C |
| Weight | 380g +/- 5g |
| Operating System | Android / Linux / Windows |
| Power Input | USB Type-C |
| Power Consumption | Average 6.2W; Peak 9.7W |
| SDK | Orbbec SDK |
| Synchronization | 6-Pin connector |
| Installation | Bottom: 1x 1/4-20 UNC Side: 4 x M2.5 |
ORB-FEMTOW
