EZO ORP Circuit
Write your review
64,66 €
Tasse incluse

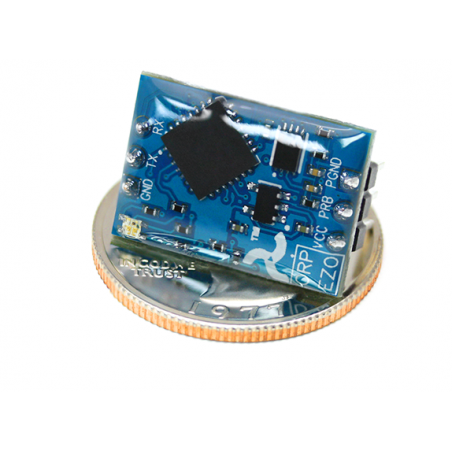

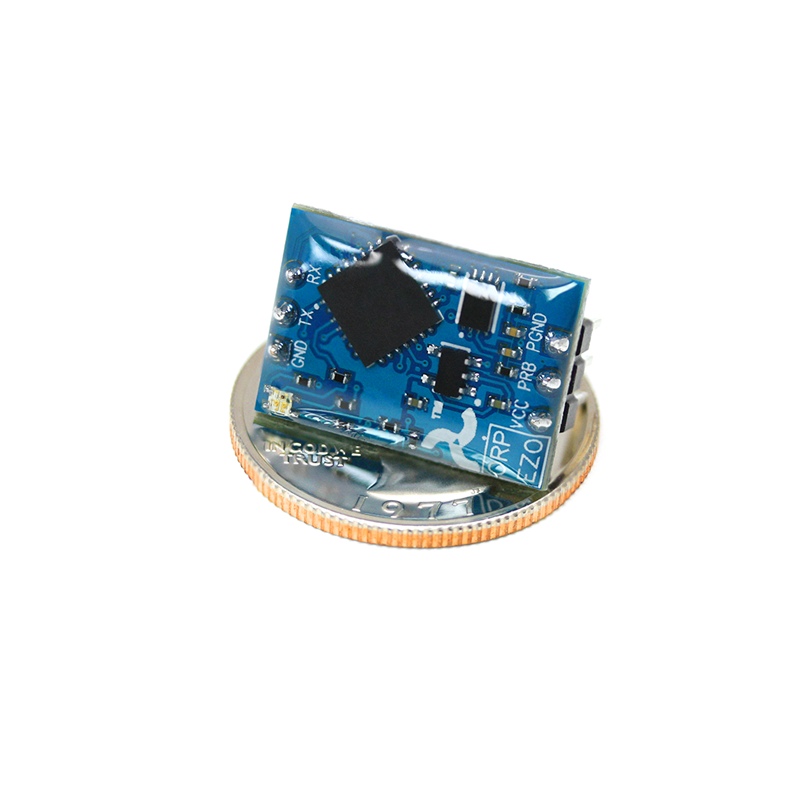

EZO ORP Circuit
"
Downloads
Part # EZO-ORP
Reads
ORP
ORP
Range -1019.9mV ? 1019.9mV
Accuracy
+/– 1mV
+/– 1mV
Max rate
1 reading per sec
1 reading per sec
Supported probes
Any type & brand
Any type & brand
Calibration
Single point
Single point
Temp. compensation
N/A
N/A
Data protocol
UART & I2C
UART & I2C
Default I2C address
98 (0x62)
98 (0x62)
Operating voltage
3.3V ? 5V
Data format
ASCII
Circuit dimensions
13.97mm x 20.16mm (0.55"" x 0.79"")
Weight: 1.86 grams
m x 20.16mm (0.55"" x 0.79"")
Weight: 1.86 grams
Weight: 1.86 grams
m x 20.16mm (0.55"" x 0.79"")
Weight: 1.86 grams
EZO™ ORP Circuit Datasheet
Wiring Diagram
Arduino Uno Sample Code
Arduino Mega Sample Code
Arduino I2C Sample Code
Wiring Diagram
Arduino Uno Sample Code
Arduino Mega Sample Code
Arduino I2C Sample Code
Eniac Data logger / Web server BETA
Raspberry Pi Sample Code (UART, I2C, USB)
ORP CAD Footprint File (*.dxf)
RoHS Certificate
CE Certificate
Raspberry Pi Sample Code (UART, I2C, USB)
ORP CAD Footprint File (*.dxf)
RoHS Certificate
CE Certificate
"
AS-EZO-ORP
