Introduction

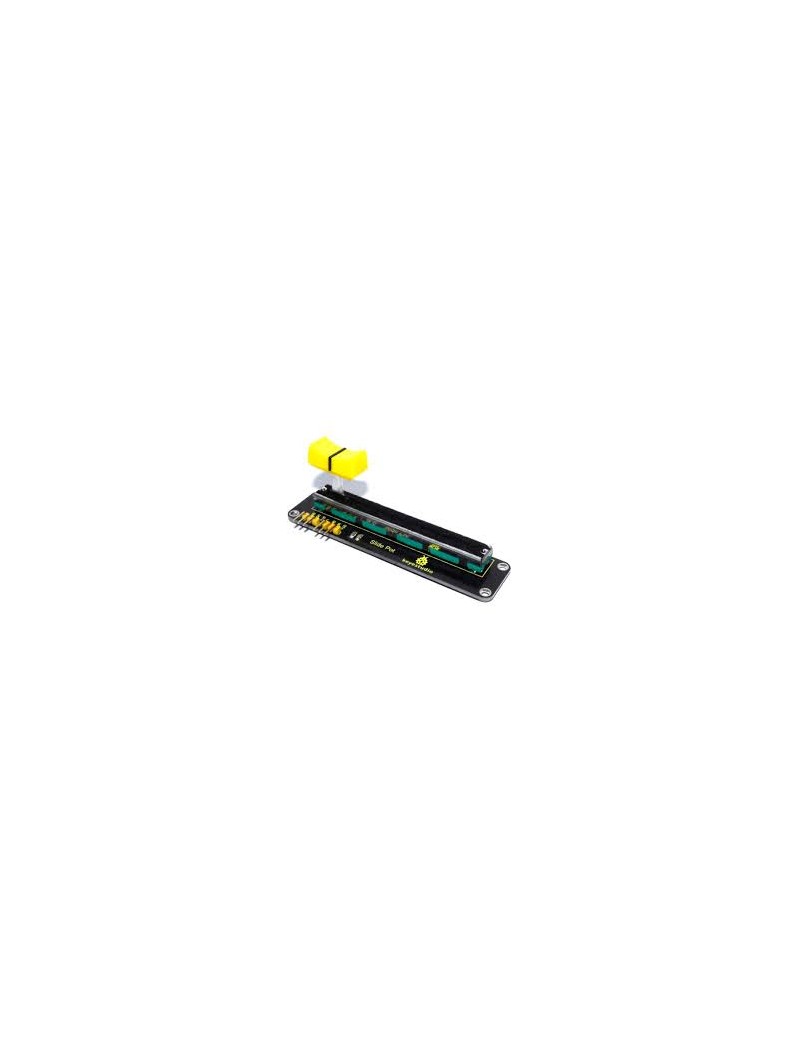

Keyestudio slide potentiometer module using high-quality sliding electrical appliance, has the performances of stability and reliability. It is a dual analog output, and outputs 0-VCC analog voltage signal.

Specification

Size：27*90*30mm

Weight：14.7g

Voltage：3.3V、5V

Port：analog quantity

Numerical value of resistance：10K

Platform：Arduino、microcontrollers、ARM and other microcontrollers’ platform.

Connection Diagram

Sample Code

void setup() {

  // initialize serial communication at 9600 bits per second:

  Serial.begin(9600);

}

// the loop routine runs over and over again forever:

void loop() {

  // read the input on analog pin 0:

  int sensorValue = analogRead(A0);

  // print out the value you read:

  Serial.println(sensorValue);

  delay(1);        // delay in between reads for stability

}

Result

Connecting the wire and burning the program, after power-on, please open the serial monitor, and you can see the analog value of analog port A0, as the figure shown below. When sliding the slide pole, the value ranges from 0 to 1023.
