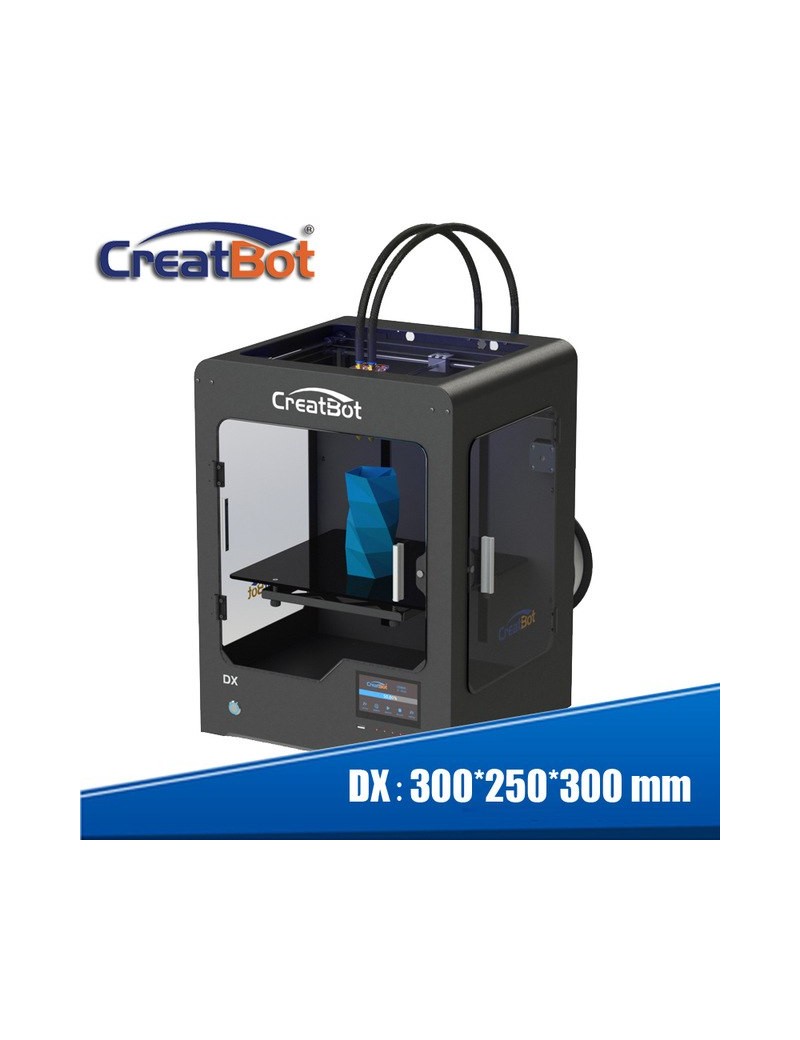

CreatBot DX – Large volume 3D printer with dual extruder and high-temperature (up to 400° C)

Size matters!

This solid constructed 3D printer has dual print heads. It comes along with a semi enclosed building chamber with see through walls. Furthermore, CreatBot DX has a heated glass 3D printing bed and a Bowden style extruder. This superior quality extruder has the stepper motors positioned at the back of the manufacturing machine which results in a light weight extruder head assembly enabling high speed 3D printing.

The CreatBot DX 3D prints beautifully in PLA and ABS as well as other filaments like PP or PC. Manufacture with high-tech filaments including soluble HIPS and PVA. With the CreatBot DX you buy a great machine for engineering, additive manufacturing and education. Manufacture complex objects for production work, large architectural models, sculpture, jigs and fixtures. It is your choice what to build.

Product Highlights:

• All metal chassis
• Smart adjustable extruder
• Automatically shutdown
• Multi-function keypad
• Gear motors feeder
• Ceramic panel hot bed
• Metal hot bed tray
• Large build volume of 300 x 250 x 300 mm
• High resolution
• Filament detection system
• 3D print in temperatures up to 400 ° C
• Continued 3D print in case of power loss
• All enclosed build area

Chassis made of metal

A 3D printer requires a certain weight to insure stable operation. Therefore, all metal chassis are the best way to go when it comes to 3D printing.

Smart adjustable extruder

CreatBot extruders have an intelligent cooling system, this ensures that the filament is feeding at the optimal temperature all the time. The height adjustable nozzles allow you to align your two nozzles very quick and easy. Perfect when you want to 3D print with support, different material or just two colors. All CreatBots from 3D Prima come with dual extruders as standard.

Automatically shutdown

Your CreatBot DX is equipped with a power management module. When the manufacturing process is finished and there is no action taken within 5 minutes the printer will shut down. Very useful and very energy efficient. Save energy and money.

Multi-function key pad

CreatBot DX has a multi-function keyboard. This makes for very easy handling and direct access to many of the most used functions, including Z shaft up/down, heating/cooling of hot bed, pause, resume 3D print, browse the SD card and more.

Gear motors feeder

A gear motor can produce more torque compared to the general stepper motor. This ensures that there is a smooth feeding of the filament always and that retraction is perfect.

Ceramic panel hot bed

On top of a silica heating plate there is a stunning ceramic hot bed which is more expensive then glass. However, it provides a better heating distribution and a more even heat. The ceramic plate is very smooth and provides a very good adhesion.

Metal hot bed tray

An all metal hot bed tray makes for a very stable 3D print platform which in turn improves stability.

Large build volume

The DX boasts with its impressive build volume of 300 x 250 x 300 mm. That large volume is more than enough for most makers. This means that you can manufacture your creations in 30 cm height and with a resolution of 0.04 mm.

Filament detection system

If you should run out of filament during the process, don’t worry. This 3D printer will go into pause mode and let you change the filament then you just hit resume, easy!

High temperature 3D prints

The nozzles can operate in temperatures up to 400 ° Celsius. This means that you can use a wide range of different filaments. Furthermore, it provides you with a very stable temperature during additive manufacturing.

Continued print

If you should have an unexpected power loss the CreatBot DX remembers the last known position, stores it, lowers and retracts the filament. When the power comes back to your CreatBox DX on you can continue to 3D print.

Completely enclosed build space

On this 3D printer you have a totally enclosed build space which prevents large 3D prints from being cracked or warped.

In the box

• CreatBot DX with dual extruders
• Packed in a wood crate
• 1 x SD card
• 1 x USB cable
• 1 x Power cable
• 1 x Tool kit
• 1 x Manual
• 2 x spools of 1 kg 3.00 mm filament
• Cura software on SD card

With the CreatBot DX you buy a great-value dual-extruder 3D printer which can process ABS, PP, Nylon and other filaments that tend to warp.
